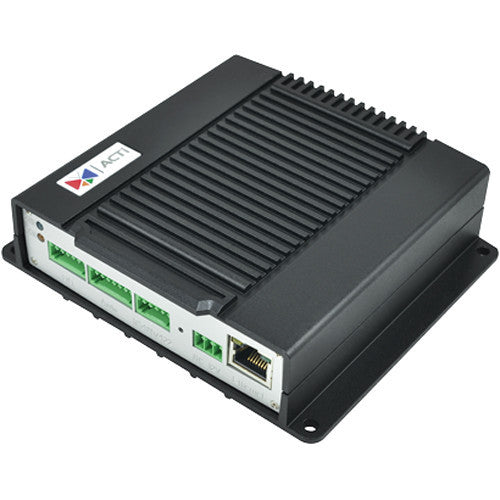

The ACTi V24 4-Channel 960H/D1 H.264 Video Encoder allows the integration of up to 4 analog CCTV cameras in an already existing IP infrastructure. H.264 compression technology allows you to save on storage space while also minimizing the bandwidth requirement for operations. This encoder is capable of simultaneous dual streaming of videos in up to D1 resolutions at 25/30 fps in H.264 and MJPEG formats. It features a microSDHC memory card slot (card not included) for on-board storage.
The encoder supports PoE (Power over Ethernet), allowing you to power the encoder from the network itself, without any extra wiring or power supplies. It also features an active tampering alarm that immediately sends an email notification when trigged. Password protection adds another layer of security by providing access to only authorized users.
- 25/30 fps at Full D1 resolution
- Selectable H.264 HP, MJPEG compressions
- Supports two-way audio
- Video motion detection
- Digital input and digital output (via terminal block, included)
- Serial ports for PTZ control (via terminal block, included)
- Operating temperature ranges from -40 to 158�F (-40 to 70�C)
UPC: 888034004917
In the Box
ACTi V24 4-Channel 960H/D1 H.264 Video Encoder
- Power Terminal Block
- Audio Terminal Block
- Serial Communication Terminal Block
- Digital Input / Output Terminal Block
- Screw Pack
- Limited 3-Year Warranty
| Device |
| Type | Video encoder |
| Number of Channels | 4 |
| PTZ |
| Protocol | Sony VISCA, Pelco-D, Pelco-P |
| Control | Remote manual control; 32 preset points; 10 preset tours |
| Video |
| Compression | H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 960 x 480 (NTSC); 25 fps at 960 x 576 (PAL)
30 fps at 720 x 480 (Full D1, NTSC); 25 fps at 720 x 576 (Full D1, PAL) |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28 kb/s to 6 Mb/s (per stream) |
| Bit Rate Mode | Constant, Variable |
| Image Enhancement | Brightness; Saturation; Contrast; Hue; Sharpness; Deinterlacing |
| Privacy Masking | 4 regions |
| Text Overlay | User defined text on video |
| Image Orientation | Image flip; image mirror |
| Audio |
| Compression | 8 kHz, Mono, PCM, 16-bit encoding, G.711 |
| Audio Input | 4, via terminal block |
| Audio Output | 1, via terminal block |
| Network |
| Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco D, Pelco P |
| Ethernet Port | 1 x 10/100 Base-T Ethernet, RJ45 connector |
| Security | IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login |
| Alarm |
| Alarm Triggers | Video motion detection (3 regions); External device through digital input |
| Alarm Response | Notify control center; Go to PTZ preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage, Upload video, snapshot to FTP server; Activate external device through digital output |
| Interface |
| Analog Video Input | 1 x CVBS, 1 Vpp with 75 ? BNC connector |
| Digital Input/Output | 4 (configurable), via terminal block |
| Serial Port | RS-485 / RS-422, terminal block |
| Local Storage | microSDHC/SDXC memory card slot (card not included) |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| ISV Integration | Software Development Kit (SDK) available; ONVIF compliant |
| Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality);
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) |
| General |
| Power Source | PoE Class 3 (IEEE802.3af)
12 VDC (adapter not included) |
| Power Consumption | PoE: 3.36 W
12 VDC: 3 W |
| Operating Temperature | -40 to 158�F (-40 to 70�C) |
| Operating Humidity | 10 to 85% RH |
| Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) |
| Dimensions (W x H x D) | 5.4 x 1.4 x 4.8" (137.0 x 35.5 x 121.8 mm) |
| Weight | 1.021 Ib (0.462 kg) |
