Description

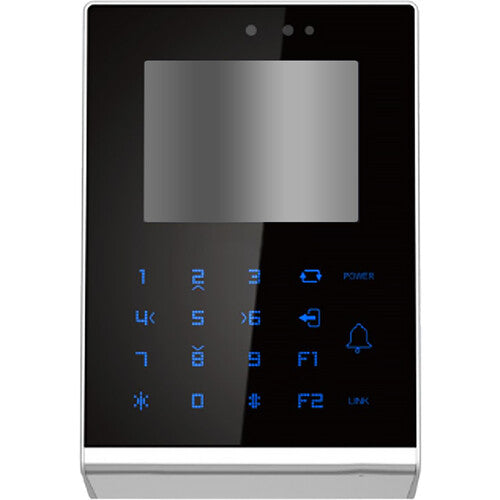

ACTi R73C-32 Overview
Implement access control functionality via MIFARE RFID card reading with the R73C-32 Wireless MIFARE Card Recognition Reader & Controller from ACTi. Designed for indoor use, this unit features a built-in MIFARE RFID 13.56 MHz module to read up to 100,000 cards. Additionally, the R73C-32 will log up to 500,000 events and is equipped with a speaker output.
Capacity
Card capacity up to 100,000
Event logs up to 300,000
General Features
Embedded Linux OS
Access control for door contact, door lock, and exit button
Access mode via card only, card and password, and card or password
0 to 2" card reading range
Supports Wiegand 26 and Wiegand 34
2.8" color LCD display
Illuminated touch-panel keypad
Remote management via web client
Tampering detection and RFID recognition
UPC: 888034016118
Items Included
- ACTi R73C-32 Wireless MIFARE Card Recognition Reader & Controller
- Mounting Plate
- Wire Cable
- Wrench
- Screw Pack
- Limited 1-Year Manufacturer Warranty
Additional Resources
ACTi R73C-32 Specs
General
| Compatibility |
RFID MIFARE Cards & Credentials
|
| Frequency |
13.56 MHz Frequency
|
Display
| Panel Type |
LCD
|
| Display Size |
2.8"
|
| Native Resolution |
320 x 240
|
| Touchscreen |
No
|
Inputs/Outputs
| USB Port |
1
|
| Audio |
Speaker Out
|
| Network |
1000M RJ45 Connector
|
| Inputs/Outputs |
1 x RS-485
2 x Digital Inputs, 1 x Digital Output 1 x Door Contact, 1 x Exit Button 1 x Door Lock 1 x Configurable Wiegand I/O 1 x Tamper Switch - 1 Form C, 30 VDC, 1000 mA |
Power
| Power Source |
DC Input
|
| DC Input Power |
12 VDC at 2 A
|
Physical
| Mounting |
Multiple Surface, Wall
|
| Color |
Black
|
| Operating Conditions |
-22 to 140°F / -30 to 60°C at 10 to 90% Humidity
|
| Dimensions |
5.4 x 3.6 x 1.4" / 136.8 x 91.4 x 36 mm
|
