Description
- 1920 x 1080 Resolution at 30 fps
- 3.6mm Fixed Lens
- 87.5° Horizontal Field of View
- Speaker Microphone for 2-Way Audio
- RJ45 Ethernet with PoE Technology
- IP66 Weatherproof for Outdoor Use
- IK10 Vandal Resistance

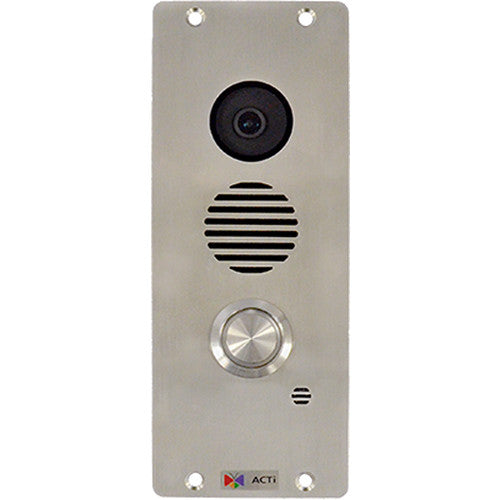

The Q970 2MP Outdoor Intercom Camera from ACTi features a 3.6mm fixed lens and a f/1.85 aperture. With a 1/2.9" progressive scan CMOS sensor, the camera captures images at a maximum resolution of 1920 x 1080 at 30 fps. The front-plate-mounted camera can be integrated into an intercom system to add a microphone and speaker. It uses H.264 and MJPEG compression to maximize storage and bandwidth efficiency, and a memory card slot supports microSD cards for on-site recording and storage. Image enhancements include basic WDR, white balance, brightness, contrast, sharpness, AGC, and flickerless. The system is rated IP66 for outdoor use and IK10 for vandal resistance.
In the Box
ACTi Q970 2MP Outdoor Intercom Camera with 3.6mm Fixed Lens
ACTi Q970 specs
| Camera | |
|---|---|
| Device Type | Intercom |
| Sensor | 2 MP 1/2.9" progressive scan CMOS |
| Effective Pixels | 1984 x 1105 (2.19 MP) |
| Horizontal Resolution | 1100 TVL |
| S/N Ratio | 52 dB |
| Lens | |
|---|---|
| Focal Length / Aperture | 3.6mm fixed lens, f/1.85 |
| Iris | Fixed iris fixed focus |
| Lens Mount | Board mount |
| Field of View | Horizontal: 87.5° Vertical: 48.1° |
| Video | |
|---|---|
| Compression | H.264 (Baseline/Main/High-Profile), MJPEG |
| Resolution | 1920 x 1080 at 30 fps 1280 x 720 at 30 fps 800 x 600 at 30 fps 640 x 480 at 30 fps |
| Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28 kb/s to 6 Mb/s (per stream) Mode: Constant, variable |
| Wide Dynamic Range | Basic WDR (75 dB) |
| Image Enhancement | White balance, brightness, contrast, sharpness, AGC, and flickerless |
| Privacy Masking | Four configurable regions |
| Text Overlay | Yes |
| Audio | |
|---|---|
| Compression | 8 kHz, 16-bit encoding, mono, G.711 |
| Audio Streaming | 2-way, built-in microphone and speaker, mic input line input |
| Network | |
|---|---|
| Protocols | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Security | IP Address Filtering, HTTPS Encryption, Password Protected User Levels, Anonymous Login, IEEE 802.1X Network Access Control |
| Ethernet Port | 1 x RJ45 |
| Event | |
|---|---|
| Event Trigger | Touch button, external device through digital input, sound detection |
| Event Response | Notify control center, change camera settings, command other devices, email notification with snapshots, play the audio file, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output |
| Interface | |
|---|---|
| Local Storage | microSDHC/microSDXC memory card slot (card not included) |
| Ports | 1 x RS-485, serial 1 x terminal block, audio input 2 x terminal block, digital input 2 x terminal block, digital output |
| General | |
|---|---|
| Power | 12 VDC / PoE Class3 (IEEE 802.3af) |
| Power Consumption | PoE: 12.95 W |
| Approvals | CE, FCC |
| Casing | IP66 weatherproof front plate IK10 vandal-resistant metal casing |
| Operating Temperature | -40 to 131°F / -40 to 55°C |
| Storage Temperature | -40 to 131°F / -40 to 55°C |
| Mount Type | Flush |
| Dimensions | 3.2 x 8.4 x 1.9" / 8.2 x 21.2 x 4.7 cm |
| Weight | 1.6 lb / 728 g |
