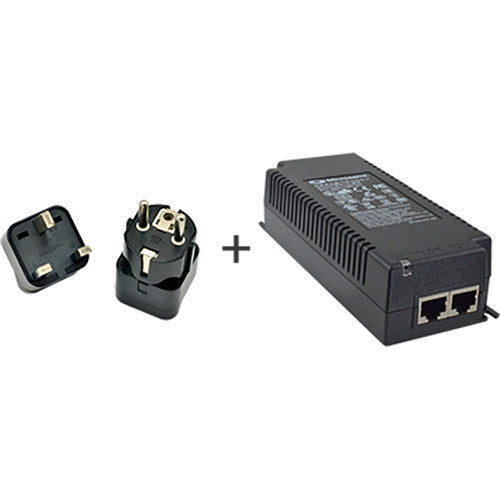

ACTi PPOE-0103 60W High PoE Injector

Delivers 60W Power over Ethernet

IEEE 802.3at Compliant

55 VDC Output

Universal Power Connector Included

Power devices such as IP cameras with the black PPOE-0103 60W High PoE Injector from ACTi . This unit will support devices that require up to 60W of PoE power. It complies with the IEEE 802.3at standard. An included universal power connector enables this injector to be used internationally.

Universal connectors for select ACTi cameras (I93 to I910, I915, B915 to B917, B922, B928, B945, B949, and A950) 1000M Ethernet interface Universal power connector enables use in the US, Japan, UK, Europe, and Australia CE, EN 60950-1, FCC, GS, RoHS, UL, and VCCI certified UPC: 888034011922

Type

Injector

Connectors	2 x RJ45 Gigabit Ethernet
Supported IEEE Standards	802.3at

PoE Power	55 VDC, 60 W (Output)
Power Consumption	60 W (Maximum)
AC Input Power	100 to 240 VAC, 50 / 60 Hz

Operating Temperature	14 to 104°F / -10 to 40°C
Certifications	CE, EN 60950-1, FCC, GS, RoHS, UL, VCCI, as per Manufacturer

Dimensions	5.9 x 2.4 x 1.5" / 151.0 x 62.0 x 38.0 mm
Weight	0.7 lb / 320 g

Package Weight	1.375 lb
Box Dimensions (LxWxH)	8.1 x 4.6 x 2.6"
