Description

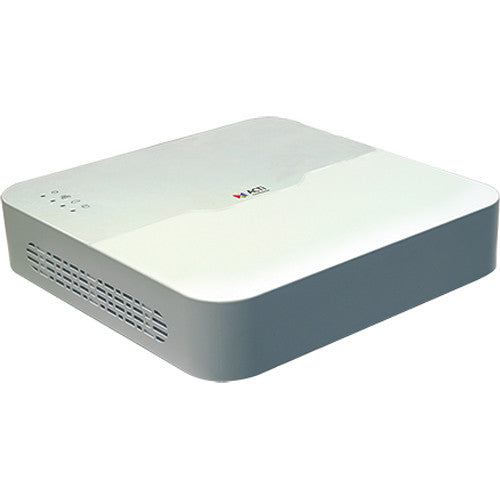

ACTi ZNR-120P Overview
Stream and record up to four channels of video with this (No HDD)ACTi Standalone PoE NVR at resolutions up to 8MP. Equipped with one SATA port, the NVR can be configured to have up to 8TB of internal storage (HDD available separately). External storage options include PCs via internet connection, network servers, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using H.265 and H.264 dual-streaming compression.
The NVR enables simultaneous live view at up to 12MP and playback of up to four channels at resolutions up to 8MP via its VGA and HDMI ports. Up to four channels can be recorded simultaneously, with a maximum combined throughput of 40 Mb/s. The NVR is equipped with RCA connectors for bidirectional audio, and with an integrated PoE switch for powering up to four IP cameras directly via network connection.
In the Box
- ACTi INR-460 4-Channel 8MP Standalone PoE NVR (No HDD)
- Limited 3-Year Warranty
ACTi ZNR-120P Specs
| Maximum Number of Cameras | 4 channels |
| Licenses | 4-channel license included |
| Maximum Number of Clients | Local: 1 Remote: 2 |
| Number of Remote Users Supported | 128 max. |
| Compression | H.265, H.264 |
| Local Display | Resolution: 8 MP max. |
| Operating System | Server: Linux embedded Client PC: Windows 8, Windows 7 |
| Compliance | Supports ONVIF-compliant devices |
| Web Browser | IE 10 or newer, Firefox, Chrome, Opera |
| Remote Access | Web client |
| Approvals | CE, FCC |
| Display Layout Mode | 1, 4 |
| Resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, 2CIF, CIF |
| Synchronized Playback | Up to 4 channels |
| Playback Control | Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x Pause Stop |
| Video Export | MP4 |
| Audio Connectors | 1 x RCA, 1-channel input 1 x RCA, 1-channel output |
| Control | PTZ control, speed control |
| Maximum Recording Throughput | 40 Mb/s total bit rate |
| Maximum Frame Rate vs. Resolution | 30 fps at 3840 x 2160, 20 fps at 2688 x 1520, 25 fps at 1920 x 1080, 25 fps at 1280 x 720 |
| Multi-Streaming | Main Stream: For scheduled recording and recording triggered by events such as alarm inputs or motion detection alarms Sub Stream with Low-Resolution Video: For local or remote real-time monitoring |
| HDD Interface | 1 x SATA, up to 8 TB (HDD available separately) |
| Protocol | UPnP, NTP, DHCP, PPPoE |
| Ethernet Ports | Non-PoE: 1 x Ethernet 10/1000Base-T, RJ45 PoE: 4 x Ethernet 10/100Base-T, RJ45 |
| PoE Support | IEEE 802.3at and IEEE 802.3af standards |
| Access | Local: HDMI/VGA monitor, USB keyboard & mouse |
| CPU | Hi3536 |
| Power Source | 48 VDC |
| Power Consumption | 8 W (without HDD) |
| PoE Power Budget | 30 W max. for single port, 54 W max. total (13.5 W per PoE port) |
| USB | 2 x USB 2.0 ports |
| Audio | 1 x line-in 1 x line-out |
| Display | 1 x VGA 1 x HDMI |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 10-90% RH |
| Dimensions | 1.7 x 8.1 x 8.1" / 4.2 x 20.5 x 20.5 cm |
| Weight | 1.3 lb / 0.59 kg |
