Description
ACTi ECD-1100 Overview
- 1Description
- 216-Channel Decoder
- 3Up to 1080p HDMI Video Support
- 4Interface
- 5Functions

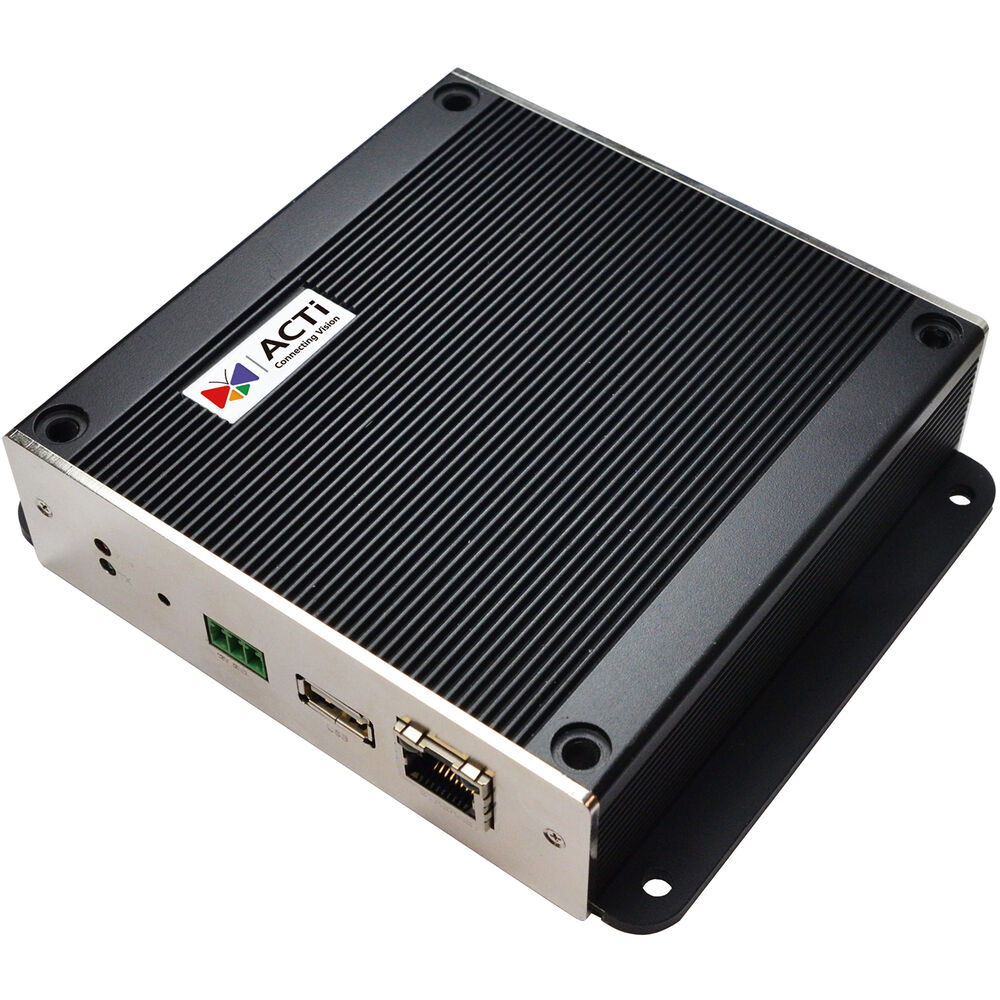

The ECD-1100 16-Channel H.264 Video Decoder from ACTi decodes IP video streams from up to 16 cameras or other video devices. This decoder supports up to 1920 x 1080p30 video resolutions and has one RJ45 Ethernet input and one HDMI 2.0 output. Designed for digital signage, video decoding, and public displays, this decoder incorporates PTZ control for ACTi cameras. The ECD-1100 Decoder comes with a pole mount and a power adapter.
16-Channel Decoder
This decoder enables you to display content from up to 16 video devices for your digital signage display.
Up to 1080p HDMI Video Support
Supports multiple video resolutions up to 1080p60.
Interface
Input video using the RJ45 Ethernet port and output to your display via the HDMI 2.0 port.
Functions
Features include digital zoom, event triggering, response, and notification.
UPC: 888034015340
In the Box
- ACTi ECD-1100 16-Channel H.264 Video Decoder
- Power Supply
- Pole Mount
- Limited 3-Year Manufacturer Warranty
Table of Contents
- Description
- 16-Channel Decoder
- Up to 1080p HDMI Video Support
- Interface
- Functions
ACTi ECD-1100 Specs
Inputs / Outputs
| Video Inputs |
1x RJ45 Female
|
| Audio Inputs |
No
|
| Video Outputs |
1x HDMI Female
1x BNC (Composite) |
| Audio Outputs |
No
|
| Other I/O |
1x USB-A 2.0 Input/Output
|
| Expansion Slots |
No
|
Format Support
| Input Video Format |
RJ45
1080p at 30 fps 480p at 30 fps 576i / 625 lines at 25 fps VGA (640 x 480) at 30 fps |
| Output Video Format |
HDMI
1080p at 30 fps 480p at 30 fps 576i / 625 lines at 25 fps VGA (640 x 480) at 30 fps |
Standards
| HDCP Support |
Yes
|
IP Streaming
| Video IP Decoding |
H.264, RTP, RTSP, TCP, UDP: 1920 x 1080 at 30p
|
Hardware
| OS Compatibility |
Windows 8.1
Windows 7 Linux |
Power
| Built-In Battery |
Yes
|
| Power I/O |
1x Barrel (12 VDC) Input
|
| PoE Support |
PoE 802.3af
|
| Power Consumption |
Power Supply: 7 to 8.5 VDC
|
Environmental
| Operating Temperature |
32 to 82°F / 0 to 50°C
|
| Storage Temperature |
32 to 122°F / 0 to 50°C
|
| Operating Humidity |
10 to 85%
|
General
| Certifications |
CE, FCC, UL
|
| Dimensions |
5.3 x 4.5 x 1.3" / 135 x 114 x 33 mm
|
| Weight |
1.2 lb / 566 g
|
Packaging Info
| Package Weight |
2.565 lb
|
| Box Dimensions (LxWxH) |
11.6 x 8.3 x 3.9"
|
