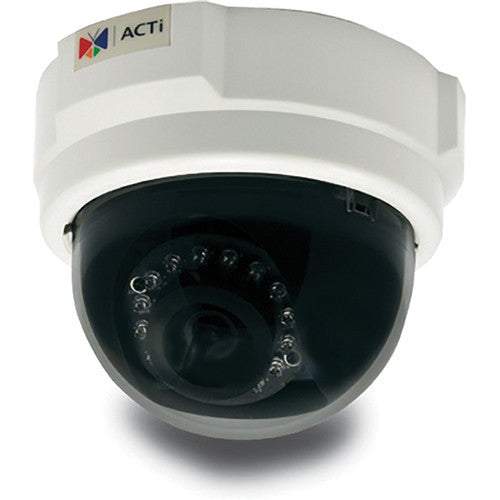

The ACTi�E54 5 MP Indoor Day & Night Dome Camera with IR Illuminator features a progressive scan CMOS image sensor to deliver high-quality images at a resolution of up to 2,592 x 1,944 pixels. The integrated 10 IR LEDs activate automatically when the ambient light drops below a certain level.
The Motion Detection feature triggers an alarm when movement is detected in a designated portion of the video display. Privacy masking function (4 configurable regions) allows you to block certain portions of an image for security reasons.
- Progressive scan CMOS sensor
- Minimum illumination of 0 lux with IR LED On
- Built-in f3.6mm / F1.8 MP fixed lens allows you to record footage at 15 fps at 2,592 x 1944 resolution
- Selectable H.264 HP, MJPEG compressions with dual streaming
- Powered by PoE Class 2
- Video motion detection
- Basic WDR (Wide Dynamic Range)
UPC: 888034000636
In the Box
ACTi E54 5 MP Indoor Day & Night Dome Camera with IR Illuminator
| Device Type | Fixed Indoor Dome Camera |
| Image Sensor | Progressive Scan CMOS |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400�K); B/W: 0 lux (IR LED on) |
| Color to B/W switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700 to 1,100 nm |
| IR LED | 10x IR LED (850 nm) |
| IR Working Distance | 49.2' (15 m) (0 lux, 30 IRE, maximum exposure gain) |
| Electronic Shutter | 1/5 to 1/2,000 sec (manual), 1/5 to 1/10,000 sec (auto mode) |
| Lens |
| Focal Length / Aperture | Fixed focal, f3.6 mm / F1.8 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board Mount |
| Horizontal Viewing Angle | 72� |
| Viewing Angle Adjustment | Pan: 0 to 330�; Tilt: 20 to 90� |
| Video |
| Compression | H.264 HP, MJPEG |
| Maximum Frame Rate vs. Resolution | 15fps at 2592x1944; 15 fps at 2048x1536; 30 fps at 1920 x 1080 (Full HD 1080p); 30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) |
| Multi-Streaming | Simultaneous dual steams based on 2 configurations |
| Bit Rate | 28 Kbps to 6 Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Image Enhancement | Basic WDR; white balance: automatic, hold, and manual;Brightness; Contrast; Auto gain control; Digital noise reduction; Flicker-less |
| Privacy Mask Type | 4 configurable regions |
| Text Overlay | User-defined text on video |
| Image Orientation | Image flip and mirror |
| Network |
| Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering; HTTPS encryption; Password-protected user levels; IEEE 802.1X network access control |
| Alarm |
| Alarm Triggers | Video motion detection (3 regions) |
| Alarm Response | Notify control Center; Change camera settings; Command other devices; Email notification with snapshots; Upload video, snapshot to FTP server |
| General |
| Power Source and Consumption | PoE Class 2 (IEEE802.3af) / 6.49 W (IR On) |
| Mount Type | Surface, Pendant, Wall, Corner, Pole, Flush |
| Operating Temperature | 14 to 122�F (-10 to 50�C) |
| Operating Humidity | 10 to 85% RH |
| Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| ISV Integration | Software Development Kit (SDK) available; ONVIF compliant |
| Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with VLC installed (partial functionality) |
| Dimensions (� x H) | 5.12 x 3.90" (128 x 99 mm) |
| Weight | 0.64 lb (0.29 kg) |
| Packaging Info |
| Package Weight | 1.4 lb |
| Box Dimensions (LxWxH) | 6.8 x 6.8 x 6.7" |
