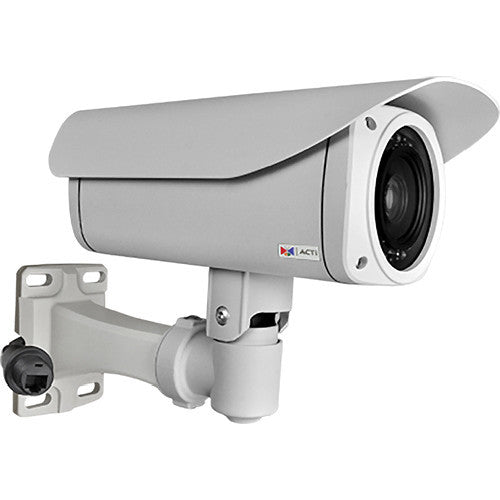

The B44 1.3Mp Day/Night Outdoor 720p IP Bullet Camera from ACTi utilizes a 1.3Mp 1/3" progressive-scan CMOS sensor with a 4.9 to 49mm lens to capture video at a resolution of up to 1280 x 720 at 60 fps. Its 27 onboard IR LEDs enable it to capture clear images up to a distance of 65.6� even in complete darkness. It also features basic WDR (Wide Dynamic Range), Superior Low Light Sensitivity (SLLS), and a mechanical IR-cut filter. H.264 HP and MJPEG compression allow for optimal usage of network and storage resources.
The camera can be programmed to detect motion and monitor activities in up to 3 regions. Thanks to its IP66-rated weatherproof and IK-10 vandal-proof metal enclosure, the B44 camera can be installed outdoors and in high-risk areas.
- 1/3" progressive scan CMOS sensor captures clear images at 1280 x 720 resolution at 60 fps
- 27 onboard IR LEDs enable the camera to capture clear images up to a distance of 65.6' even in complete darkness
- 4.9 to 49mm DC iris lens with 10x optical zoom helps focus on distant objects with accuracy
- H.264 HP and MJPEG compression allow for optimal usage of network and storage resources
- Dual power capability: Power-over-Ethernet (PoE) and 12VDC
- Wide dynamic range (83.5 dB) and day/night functionality when combined with Super Low Light Sensitivity (SLLS) enables clear images in varying ambient lighting conditions (0.1 lux in color and 0 lux in monochrome)
- IP66-rated weatherproof and IK10-rated vandal-proof metal enclosure
- Camera can be installed outdoors and in high-risk areas
- Image enhancement features include Basic WDR (69 dB), White balance (automatic, hold, and manual); Brightness; Contrast; Sharpness (auto); Auto gain control; Digital noise reduction; Flickerless
UPC: 888034004009
In the Box
ACTi B44 1.3Mp Day/Night Outdoor 720p IP Bullet Camera with 10x Zoom Lens
- Bracket
- Weatherproof Connector Kit
- Limited 3-Year Warranty
| Device |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400�K); B&W: 0 lux (IR LED On) |
| Color to B/W switch | ISP based switch; Configurable |
| IR Sensitivity Range | 700 to 1100 nm |
| IR LED | Auto adaptive 27 IR LEDs (850 nm) |
| IR Working Distance | 65.6' (20.0 m) (0 lux, 30 IRE, Gain 255, Auto shutter mode) |
| Electronic Shutter | 1/5 to 1/2,000 sec (manual mode); 1/5 to 1/10,000 sec (auto mode) |
| Lens |
| Focal Length / Aperture | 4.9 to 49.0 mm / f1.8 to 3.0 |
| Zoom | 10x optical ; 2.5 sec (wide to tele) |
| Iris | DC iris |
| Focus | Auto focus |
| Lens Mount | Board |
| Horizontal Viewing Angle | 52.1 to 5.7� |
| Video |
| Compression | H.264 HP, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 1280 x 960; 60 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320x240 |
| Multi-Streaming | Simultaneous dual streams based on 2 configurations |
| Bit Rate | 28 Kb/s to 6 Mb/s (per stream) |
| Bit Rate Mode | Constant, Variable |
| Text Overlay | User-defined text on video |
| Image Orientation | Image flip and mirror |
| Audio |
| Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 |
| Audio I/O | Terminal block |
| Network |
| Protocols | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony VISCA, Pelco-D, Pelco-P |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption; Password-protected user levels; Anonymous login, IEEE 802.1X network access control |
| Approvals | CE (EN55022Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, NEMA 4X, IK10 (metal casing) |
| Alarm |
| Alarm Triggers | Video motion detection (3 regions); External device through digital input |
| Alarm Response | Notify control center; Change camera settings; Command other devices; E-mail notification with snapshots; Save video or snapshot to local storage; Upload video, snapshot to FTP server; Activate external device through digital output |
| Interface |
| Digital I/O | 1 each, Terminal block |
| Local Storage | micro SDHC/micro SDXC card slot (card not included) |
| Integration |
| Unified Solution | Fully compatible with ACTi software |
| ISV Integration | Software Development Kit (SDK) available; ONVIF compliant |
| Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality); Other browsers with VLC installed (partial functionality) |
| General |
| Power Source and Consumption | PoE Class 3 (IEEE802.3af) and 12 VDC / 12 W (built-in heater and IR On) |
| Environmental Casing | Weatherproof (IP66-rated); Vandal-proof metal casing (IK10) |
| Mount Type | Wall, pole, ceiling, gang box |
| Starting Temperature | -40 to 122�F (-40 to 50�C) within 30 mins |
| Operating Temperature | -4 to 122� F (-20 to 50� C) |
| Operating Humidity | 10 to 85% RH |
| Dimensions | 4.8 x 4.0 x 9.5" (12.19 x 10.16 x 24.13 cm) |
| Weight | 5.19 lb (2.36 kg) |
