ACTi A29 Overview

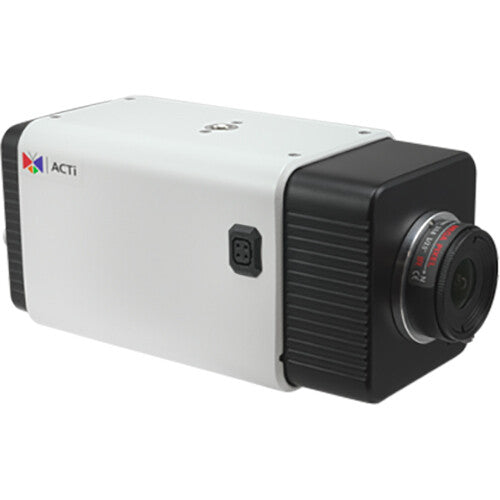

Monitor a room or hallway with the white A29 2MP Network Box Camera from ACTi. This unit uses a 1/2.8" progressive scan CMOS image sensor to capture 1080p resolution video at 60 fps. It is equipped with a CS mount and comes bundled with a 2.8mm fixed lens that delivers a 108.6° horizontal field of view. Two-way audio communication is possible thanks to an audio input and output. An onboard memory card slot accepts microSD/SDHC/SDXC cards up to 256GB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
This box camera complies with ONVIF profiles G, Q, S, and T, making it compatible with a wide range of surveillance devices.
Built-in analytics include: people detection, car detection, face detection, tampering detection, people line crossing detection, people enter area detection, people exit area detection, and people loitering detection
Video motion detection (3 regions), external device through digital input, sound detection, intelligent event detection, and video stream loss event triggers
Mechanical IR cut filter enables day and night functionality
H.265, H.264, and MJPEG video codecs
Simultaneous triple streams based on three configurations
Flip, rotation, and mirror orientation (90, 180, and 270° corridor mode)
Image enhancements include: white balance, brightness, contrast, saturation, sharpness, backlight compensation, and strong light suppression
Privacy masking for four configurable regions
Terminal block for digital input and output
Compatible with Internet Explorer 11, Chrome, Edge, and Safari
ACTi A29 Specs
Camera
| Sensor |
2 MP 1/2.8" CMOS |
| Lens Mount |
CS |
| Focal Length |
2.8mm |
| Maximum Aperture |
f/1.8 |
| Lens Field of View |
Horizontal: 108.6°
Vertical: 63.6° |
| IR Cut Filter |
Mechanical |
| Day/Night |
Yes |
| Shutter Speed |
1/64,000 to 1/5 Seconds |
Video
| Streaming Resolution |
1920 x 1080 at 60 fps |
| Supported Video Compression |
H.264, H.265, MJPEG |
| Multi-View Streaming |
Yes, 3 Streams |
Audio
| 1- or 2-Way Audio |
Two-Way |
| Audio Formats |
G.711 |
| Audio I/O |
Input:
1 x Terminal Block (Unspecified Pin Count)
Output:
1 x Terminal Block (Unspecified Pin Count) |
Networking
| Security |
Anonymous Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection |
| Supported Protocols |
ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) |
ONVIF Profiles G, Q, S & T |
| Analytics |
People Detection, Car Detection, Face Detection, Tampering Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, People Loitering Detection |
Sensors & Alarms
| Event Trigger |
Yes |
| Event Action |
Recording, Notification, Alarm |
| Data Streaming |
Yes |
| Alarm I/O |
None |
Hardware
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
Power
| Power Source |
DC, PoE 802.3af (15 W) |
Environmental
| Operating Temperature |
14 to 122°F / -10 to 50°C |
General
| Inputs/Outputs |
1 x RJ45
1 x Power
1 x Serial 9-Pin (RS-485)
2 x Unspecified Block |
