Description
- 2592 x 1944 Resolution at 15 fps
- IR LEDs for Up to 98.4' of Night Vision
- 2.8-12mm Varifocal Lens
- 69.2� to 28.2� Horizontal FOV
- microSD Slot Supports Edge Storage
- Input and Output for 2-Way Audio
- Simultaneous Dual Streaming
- RJ45 Ethernet with PoE Technology
- ONVIF-Compliant
- IP68- and IK10-Rated for Outdoor Use

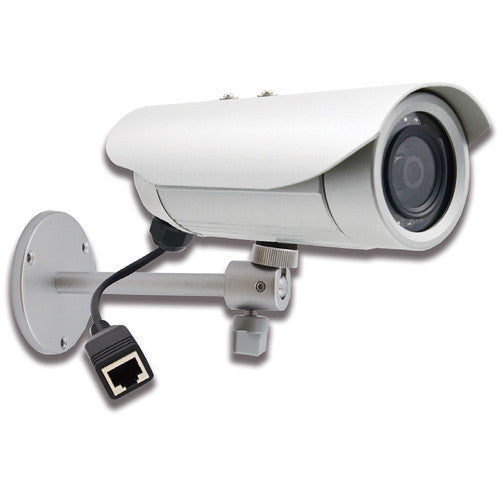

The 5MP Outdoor Bullet Camera from ACTi utilizes a 1/3.2" progressive-scan CMOS sensor to capture video in 2592 x 1944 resolution at 15 fps, and it features a 2.8-12mm lens for a 69.2� to 28.2� horizontal field of view. Fifteen integrated IR LEDs enable the camera to capture video at a distance of up to 98.4', even in complete darkness. Additionally, WDR, white balance, automatic gain control, and digital noise reduction enable the camera to capture clear images in ambient lighting. H.264 and MJPEG formatting maximizes your storage and bandwidth usage, and a microSD slot supports microSD cards for on-site recording and edge storage.
The camera features motion and sound detection as well as a number of alarm responses, including sending an email with a snapshot of the detected movement. Privacy masking can be configured in four separate areas of the viewing field, and 1/8" jacks with cables provide 2-way audio capability. The camera is ONVIF compliant, enabling compatibility with a variety of other surveillance devices. With its IP68-rated weatherproof and IK10-rated vandal-proof metal enclosure, the camera can be installed outdoors and in high-risk areas. Additionally, PoE technology enables you to setup the camera using just one RJ45 cable, simplifying your installation process.
- 1/3.2" progressive-Scan CMOS sensor provides up to 5MP resolution
- 15 integrated IR LEDs enable the camera to capture clear images up to a distance of 98.4' in complete darkness
- True Day/Night functionality with a mechanical IR cut filter
- Image enhancements including WDR, white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Simultaneous dual streaming with two configurations
- Input and output 1/8" jacks for 2-way audio
- H.264 and MJPEG compression maximizes your network and storage usage
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple installation
- Network security with IP address filtering, HTTPs encryption, and password protected user levels
- The camera can be wall, ceiling, corner, and pole mounted
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- IP68-rated weatherproof and IK10-rated vandal-proof metal enclosure allows you to install the camera outdoors and in high risk areas
- Bracket
- Sun Shield
- Conduit Gland
- Mounting Hardware
- Limited 3-Year Warranty
| Image Sensor | 1/3.2" progressive-scan CMOS |
| Effective Pixels | 5.04 MP: 2592 (H) x 1944 (V) |
| Horizontal Resolution | 1350 TVL |
| Day/Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at f/1.4 (30 IRE, 2400 K) B/W: 0 lux (IR LED on) |
| Color to B/W switch | Configurable ISP-based switch |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700 to 1100 nm |
| IR LED | Adaptive IR LED x 15 (850 nm) |
| IR Working Distance | 98.4' / 30.0 m (0 lux, 30 IRE, Gain 255, Auto shutter mode) |
| Electronic Shutter | Manual Mode: 1/5 to 1/2,000 sec Auto Mode: 1/5 to 1/10,000 sec |
| Signal to Noise Ratio | 52 dB |
| Lens | |
|---|---|
| Focal Length | 2.8-12mm varifocal |
| Aperture | f/1.4 |
| Iris | Fixed |
| Focus | Manual |
| Lens Mount | Board |
| Horizontal Viewing Angle | 69.2� to 28.2� |
| Video | |
|---|---|
| Compression | H.264 (Baseline / Main / High Profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 2592 x 1944 at 15 fps 2048 x 1536 at 15 fps 1920 x 1080 at 30 fps 1280 x 720 at 30 fps 800 x 600 at 30 fps 640 x 480 at 30 fps 320 x 240 at 15 fps |
| Multi-Streaming | Simultaneous dual steams based on 2 configurations |
| Bit Rate | 28 kb/s to 6 Mb/s (per stream) |
| Bit Rate Mode | Constant, variable |
| Image Enhancement | Basic WDR (74 dB) White balance (automatic, hold, manual) Brightness, Contrast, Sharpness (auto) Automatic gain control Digital noise reduction Flickerless |
| Privacy Mask Type | 4 configurable regions |
| Text Overlay | User-defined text on video |
| Graphics | User defined image layer on video |
| Image Orientation | Image flip, mirror, rotation |
| Audio | |
|---|---|
| Compression | 8 kHz, mono, PCM, 16 bit encoding, G.711 |
| Input & Output | Input: 1 x cable with 1/8" (3.5 mm) jack Output: 1 x cable with 1/8" (3.5 mm) jack |
| Network | |
|---|---|
| Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, password-protected user levels, anonymous login, IEEE 802.1X network access control |
| Alarm | |
|---|---|
| Alarm Triggers | Video motion detection (3 regions), external device through digital input, sound detection |
| Alarm Response | Notify control center, change camera settings, command other devices, email notifications with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP; activate external device through digital output |
| Interface | |
|---|---|
| Digital Input/Output | Input: 1 x cable without connector Output: 1 x cable without connetor |
| Local Storage | microSDHC/SDXC memory card slot |
| Integration | |
|---|---|
| Unified Solution | Fully compatible with ACTi software |
| ISV Integration | Software Development Kit (SDK) available ONVIF-compliant |
| Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality) Safari with QuickTime installed and other browsers with VLC installed (partial functionality) |
| Firmware Upgrades | Automatic |
| GPS | Positioning: manual setting |
| General | |
|---|---|
| Power Source | PoE Class 2 (IEEE802.3af) |
| Power Consumption | 5.76 W (IR on) |
| Environmental Casing | Weatherproof (IP68-rated) Vandal proof (IK10-rated) |
| Mount Type | Wall, ceiling, corner, pole |
| Starting Temperature | -4 to 122�F (-20 to 50�C) |
| Operating Temperature | -40 to 122�F (-40 to 50�C) |
| Operating Humidity | 10 to 85% RH |
| Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), and NEMA 4X |
| Dimensions (� x H) | 3.0 x 8.6" (7.7 x 21.8 cm) |
| Weight | 2.1 lb (1.0 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 3.05 lb |
| Box Dimensions (LxWxH) | 11.1 x 8.0 x 3.9" |
