Description

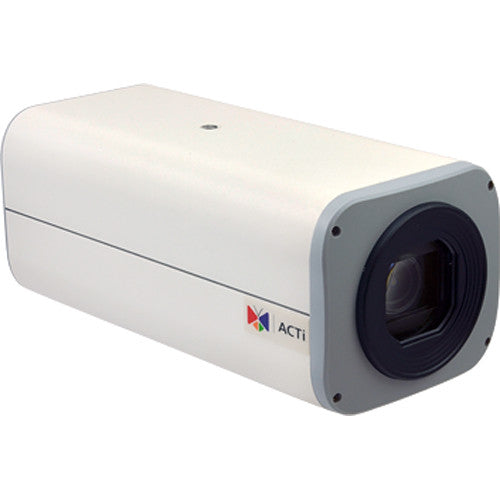

The B26 3MP Network Box Camera from ACTi features a 4.6-165.6mm varifocal lens to capture video at a resolution up to 3MP. It supports H.265, H.264 (Baseline/Main/High profile), and MJPEG compression formats with simultaneous triple streaming based on three configurations. The camera offers wide dynamic range of up to 145 dB for capturing video under challenging conditions. It comes with a built-in microSDHC/SDXC card slot for onboard storage.
-
- 3MP resolution
- Built-in analytics
- 36x optical zoom
- Low light sensitivity
- Wide dynamic range: 145 dB
- Heater
UPC: 888034010352
| Camera | |
|---|---|
| Maximum Resolution | 3 MP |
| Effective Pixels | 3.21 MP, 2065 x 1553 |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.1 lux at f/1.55 (30 IRE, 2400K) B&W: 0.01 lux at f/1.55 (30 IRE, 2400K) |
| Mechanical IR Cut Filter | Yes |
| Horizontal Resolution | 1450 TVL |
| Signal to Noise Ratio | 56 dB |
| Lens | |
|---|---|
| Focal Length | 4.6-165.6mm varifocal |
| Aperture | f/1.55 to f/5.0 |
| Zoom Ratio | 36x optical |
| Zoom Operation | Camera installation, auto zoom by event, manual operation |
| Iris | DC iris |
| Focus | Auto |
| Lens Mount | Board |
| Horizontal Viewing Angle | 64.3° to 2.04° |
| PTZ Protocols | Visca, Pelco D, Pelco P, ACTi URL command |
| Video | |
|---|---|
| Compression | H.265, H.264 (Baseline/Main/High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 2048 x 1536 at 30 fps 1920 x 1080 at 60 fps 1280 x 960 at 30 fps 1280 x 720 at 60 fps 800 x 600 at 30 fps 640 x 480 at 30 fps 320 x 240 at 30 fps |
| Multi-Streaming | Simultaneous triple streams based on three configurations |
| Bit Rate | 128 kb/s to 12 Mb/s (per stream) |
| Bit Rate Mode | Constant, variable |
| Wide Dynamic Range | 145 dB |
| Image Enhancement | Digital image stabilizer, defogging |
| Digital Noise Reduction | 2D + 3D-DNR |
| Privacy Masking | Yes |
| Text Overlay | Yes |
| Graphics | Onscreen |
| Embedded Analytics | Object based motion detection, tampering, shock detection, line crossing, enter area, missing object, unattended object, loitering, smoke detection, fire detection (some of the algorithms may not be available in the first release, can be upgraded for free later) |
| Analytics | VMS-Based Analytics: Object counting, people counting, face detection, object-based motion detection, tamper, line crossing, enter area, missing object, unattended object, smoke detection, heat map, dwell time, people queue management, (require PC-based or standalone IVS or ALPR server) |
| Image Orientation | Flip, Mirror, Rotation |
| Audio | |
|---|---|
| Type | 2-way, line-in, line-out |
| Compression | 8 kHz, 16-bit encoding, Mono, PCM, G.711 |
| Network | |
|---|---|
| Protocol | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ45 connector |
| Security | IP address filtering, HTTPS encryption, password protected user level, anonymous login, IEEE 802.1X network access control |
| Event | |
|---|---|
| Event Trigger | Video motion detection (10 regions), external device through digital input, sound detection, intelligent event detection |
| Event Response | Notify control center, go to zoom preset point or preset tour, change camera settings, command other devices, email notification with snapshots, push notification to mobile device, save video to local storage, upload video to NVR server, upload video or snapshot to FTP server, activate external device through digital output |
| Interface | |
|---|---|
| Serial Port | 1 x RS-485/RS-422 |
| Local Storage | microSDHC/SDXC memory card slot |
| Digital Input/Output | 1 x input 1 x output |
| Integration | |
|---|---|
| Unified Solution | Fully compatible with ACTi software |
| GPS | Manual setting |
| Compliance | ONVIF compliant (Profile S, Profile G) GB28181 compliant |
| Web Browser | Internet Explorer 11 |
| General | |
|---|---|
| Power Source | 12 VDC, PoE Class 3 (IEEE 802.3af) |
| Power Consumption | 12.95 W (PoE) |
| Heater | Yes |
| Starting Temperature | Within 30 minutes: 14 to 122°F / -10 to 50°C |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Approvals | CE, FCC, UL (for optional PoE injector and power adapter) |
| Dimensions | 3.17 x 2.81 x 7.01" / 80.6 x 71.4 x 178.14 mm |
| Weight | 1.79 lb / 810 g |
In the Box
ACTi B26 3MP Network Box Camera with 4.6-165.6mm Varifocal Lens
- Limited 3-Year Warranty
