Description
- 3648 x 2736 Resolution at 7 fps
- IR LEDs for Up to 98.4' of Night Vision
- 3.1-13.3mm Varifocal Lens
- 101.25 to 34.3� Field of View
- Inputs and Outputs for 2-Way Audio
- microSD Slot Supports Edge Storage
- Multiple Image Enhancements
- RJ45 Ethernet with PoE Technology
- ONVIF-Compliant
- IP67- and IK10-Rated for Outdoor Use

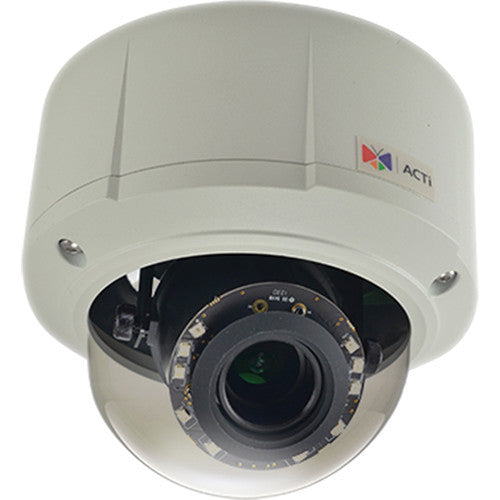

The 10MP Outdoor Dome Camera from ACTi utilizes a 1/2.3" progressive scan CMOS sensor to capture video in 3648 x 2736 resolution at 7 fps, and it features a 3.1 to 13.3mm lens for a 101.25 to 34.3� horizontal field of view. Ten integrated IR LEDs enable the camera to capture video at a distance of up to 98.4', even in complete darkness. Additionally, WDR, white balance, automatic gain control, and digital noise reduction enable the camera to capture clear images in ambient lighting. H.264 and M-JPEG formatting maximizes your storage and bandwidth usage, and a microSD slot supports microSD cards for on-site recording and edge storage.
The camera features motion and sound detection as well as a number of alarm responses, including sending an email with a snapshot of the detected movement. Pan, tilt, and rotate adjustments can be made during installation for multiple viewing options, and privacy masking can be configured in four separate areas of the viewing field. The camera is ONVIF compliant, enabling compatibility with a variety of other surveillance devices. With its IP67-rated weatherproof and IK10-rated vandal proof metal enclosure, the camera can be installed outdoors and in high-risk areas. Additionally, PoE technology enables you to set up the camera using just one RJ45 cable, simplifying your installation process.
- 1/2.3" progressive scan CMOS sensor provides up to 10MP resolution
- 10 integrated IR LEDs enable the camera to capture clear images up to a distance of 98.4' in complete darkness
- True day/night functionality with a mechanical IR cut filter
- Basic WDR (70 dB) allows you to take clear images in ambient lighting
- Image enhancements including white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Simultaneous dual streaming with two configurations
- H.264 and M-JPEG compression maximizes your network and storage usage
- Audio inputs and output for 2-way audio capability
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple installation
- The camera can be surface, pendant, wall, corner, pole, flush, and gang box mounted
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- IP67-rated weatherproof and IK10-rated vandal-proof metal enclosure allows you to install the camera outdoors and in high risk areas
- Limited 3-Year Warranty
| Camera | |
|---|---|
| Image Sensor | 1/2.3" progressive scan CMOS |
| Effective Pixels | 10.66 MP: 3856 (H) x 2764 (V) |
| Horizontal Resolution | 1450 TVL |
| Day/Night | Yes |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at f/1.4 (30 IRE, 2400K) B/W: 0 lux (IR LED On) |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700 to 1100 nm |
| IR LED | Adaptive IR (object and zoom adaptive IR) x 10 (850 nm) |
| IR Working Distance | 98.4' / 30.0 m (0 lux, 30 IRE, Gain 255, Auto shutter mode) |
| Electric Shutter | Manual Mode: 1/5 to 1/2,000 seconds Auto Mode: 1/5 to 1/10,000 seconds |
| Signal to Noise Ratio | 52 dB |
| Lens | |
|---|---|
| Focal Length | 3.1-13.3mm varifocal |
| Aperture | f/1.4 to 4.0 |
| Zoom | 4.3x optical / 3 seconds (1x to 4.3x) Application: Camera installation |
| Iris | P-iris |
| Focus | Auto |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 101.25 to 34.3� |
| Viewing Adjustments | Pan: 0 to 350� Tilt: 5 to 175� Rotate: 0 to 350� |
| Video | |
|---|---|
| Compression | H.264 (baseline / main / high profile), M-JPEG |
| Maximum Frame Rate | 7 fps at 3648 x 2736 7 fps at 3648 x 2160 7 fps at 2592 x 1944 7 fps at 2048 x 1536 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 15 fps at 320 x 240 |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28 kbps to 6 Mbps (per stream) |
| Bit Rate Mode | Constant, variable |
| Image Enhancement | Basic WDR (70 dB) White Balance: Auto, hold, and manual Brightness, Contrast, Sharpness (auto) Automatic gain control 2D- and 3D-digital noise reduction Flickerless |
| Privacy Masking | 4 configurable zones |
| Image Orientation | Image flip and mirror |
| Audio | |
|---|---|
| Compression | 8 kHz, mono, PCM, 16 bit encoding, G.711 |
| Input & Output | Input: terminal block Output: terminal block |
| Network | |
|---|---|
| Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, Sony Visca, Pelco-D, Pelco-P |
| Network Connectors | 1 x Ethernet (10/100 Base-T), RJ45 connector |
| Security | IP address filtering, HTTPs encryption, password protected user levels, anonymous login, IEEE 802.1X network access control |
| Alarm | |
|---|---|
| Alarm Trigger | Video motion detection (3 regions), external device through digital input, sound detection |
| Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshots, save video or snapshot to local storage, upload video or snapshot to FTP server, activate external device through digital input |
| Interface | |
|---|---|
| Digital In/Out | Input: 2 x terminal block Output: 2 x terminal block |
| Local Storage | microSDHC/SDXC memory card slot |
| Integration | |
|---|---|
| Unified Solution | Fully compatible with ACTi software |
| ISV Integration | Software Development Kit (SDK) available ONVIF-compliant |
| GPS | Positioning: Manual setting |
| Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality) Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) |
| General | |
|---|---|
| Power Source | PoE Class 3 (IEEE802.3af) |
| Power Consumption | 7.28 W (built-in heater and IR on) |
| Environmental Casing | Weatherproof (IP67-rated) Vandal proof (IK10-rated) Transparent dome cover |
| Mount Type | Surface, pendant, wall, corner, pole, flush, and gang box |
| Starting Temperature | -4 to 122�F (-20 to 50�C) |
| Operating Temperature | -22 to 122�F (-30 to 50�C) |
| Operating Humidity | 10 to 85% RH |
| Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), NEMA 4X, UL (for optional PoE injector) |
| Dimensions (� x H) | 6.0 x 5.2" / 15.2 x 13.2 cm |
| Weight | 3.1 lb / 1.4 kg |
| Packaging Info | |
|---|---|
| Package Weight | 4.1 lb |
| Box Dimensions (LxWxH) | 7.9 x 7.7 x 7.0" |
