| ₹ 62585.0 includes GST and import duties. | |
| B2B customers can avail ₹ 9544.21 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
- 3648 x 2736 Resolution at 7 fps
- 1.37mm Fixed Lens
- 180� and 109.8� Views
- Mic & 3.5mm Jack for 2-Way Audio
- microSD Slot Supports Edge Storage
- H.264 and M-JPEG Compression
- Simultaneous Dual Streaming
- RJ45 Ethernet with PoE Technology
- Can Be Wall or Ceiling Mounted
- ONVIF Compliant

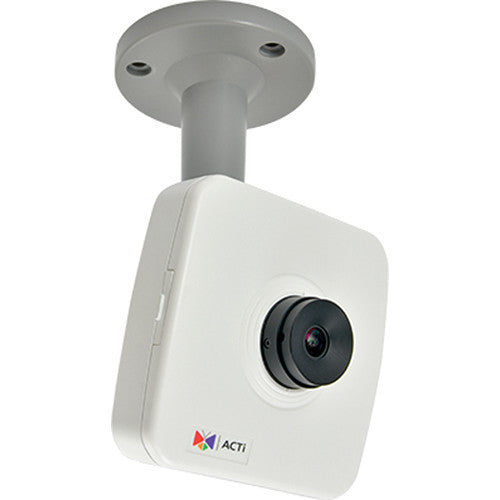

The 10MP Cube Camera from ACTi utilizes a 1.37mm fixed fisheye lens, providing a 180� overview and a 109.8� view of highly detailed areas. With a 1/2.3" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 3648 x 2736. Wide dynamic range, white balance, auto gain control, and digital noise reduction features enable you to capture clear images in ambient lighting. The camera uses both H.264 and MJPEG formatting for maximizing your storage and bandwidth, and a microSD slot allows for on-site recording with edge storage. Additionally, a built-in microphone and a 3.5mm jack offer 2-way audio capability.
The camera can detect motion in up to three programmable areas, and it will also set off an alarm if sound is detected. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your local storage. Furthermore, there are four configurable privacy zones, allowing you to customize your field of view. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be wall or ceiling mounted for multiple setup options. ONVIF compliance enables compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR for additional storage and management features.
- 1/2.3" progressive scan CMOS sensor provides up to 10MP resolution
- Wide dynamic range allows you to capture clear images in varied lighting
- Image enhancements include white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- 4 configurable privacy masking zones for customizing your field of view
- Simultaneous dual streaming with two configurations
- Built-in microphone and 3.5mm phone jack output for 2-way audio
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple installation
- Network security with IP address filtering, HTTPS encryption, and password-protected user levels
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- Bracket
- Mounting Hardware
- Limited 3-Year Warranty
| Camera | |
|---|---|
| Image Sensor | 1/2.3" progressive-scan CMOS |
| Effective Pixels | 10.66 MP: 3856 (H) x 2764 (V) |
| Low Light Sensitivity | Standard |
| Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2400 K) |
| Shutter Speed | Manual Mode: 1/5 to 1/2,000 seconds Auto Mode: 1/5 to 1/10,000 seconds |
| Horizontal Resolution | 1450 TVL |
| S/N Ratio | 52 dB |
| Lens | |
|---|---|
| Lens | 1.37mm fixed fisheye |
| Aperture | f/2.0 |
| Iris | Fixed |
| Focus | Fixed |
| Lens Mount | Board |
| Horizontal Viewing Angle | Overview Area: 180� High Detail Area: 109.8� |
| Video | |
|---|---|
| Compression | H.264 (baseline / main / high profile), M-JPEG |
| Maximum Frame Rate | 3648 x 2736 at 7 fps 2592 x 1944 at 7 fps 2048 x 1536 at 7 fps 1440 x 1080 at 7 fps 1280 x 960 at 7 fps 800 x 600 at 7 fps 640 x 480 at 7 fps 320 x 240 at 7 fps |
| View Mode | Fisheye view, 180� / 360� panorama, ePTZ |
| Multi-Streaming | Simultaneous dual streams based on two configurations |
| Bit Rate | 28 Kbps to 6 Mbps (per steam) |
| Bit Rate Mode | Constant, variable |
| Image Enhancement | Basic WDR (74 dB) White Balance: Automatic, hold, and manual Brightness, Contrast, Sharpness (auto) Automatic gain control 2D- and 3D-Digital noise reduction Flickerless |
| Privacy Masking | 4 configurable regions |
| Text Overlay | User defined text on video |
| Image Orientation | Image flip and mirror |
| Audio | |
|---|---|
| Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 |
| Input | Built-in microphone |
| Output | 3.5mm phone jack |
| Network | |
|---|---|
| Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Network Connectors | 1 x Ethernet (10/100 Base-T), RJ45 connector |
| Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control |
| Alarm | |
|---|---|
| Alarm Trigger | Video motion detection (3 regions), sound detection |
| Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshot, save video or snapshot to local storage, upload video or snapshot to FTP |
| Interface | |
|---|---|
| Local Storage | microSDHC/SDXC memory card slot |
| Integration | |
|---|---|
| Unified Solution | Fully compatible with ACTi software |
| ISV Integration | Software Development Kit (SDK) available ONVIF-compliant |
| GPS | Positioning: Manual setting |
| Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality) Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) |
| General | |
|---|---|
| Power Source | PoE Class 2 (IEEE 802.3af) |
| Power Consumption | 3.84 W |
| Mount Type | Wall, Ceiling |
| Starting Temperature | 14 to 122�F / -10 to 50�C |
| Operating Temperature | 14 to 122�F / -10 to 50�C |
| Operating Humidity | 10 to 85% RH |
| Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector) |
| Dimensions | 3.8 x 3.8 x 1.8" / 9.7 x 9.7 x 4.6 cm |
| Weight | 8.6 oz / 245.0 g |
| Packaging Info | |
|---|---|
| Package Weight | 1.05 lb |
| Box Dimensions (LxWxH) | 7.9 x 5.5 x 3.5" |
Bulk Discount
| Quantity | Price |
| 2 | ₹ 61333.3 |
| 3-5 | ₹ 60707.45 |
| 5-10 | ₹ 59455.75 |
| 10+ | ₹ 58204.05 |
Bulk discount will be automatically applied during checkout based on quantity.
