Description
ACOPower 40A MPPT Overview
- 1Description
- 2Rated Charge Current
- 3Nominal System Voltage
- 4Battery Input Voltage Range
- 5Maximum PV Open Circuit Voltage
- 6MPPT Voltage Range
- 7Communication Port
- 8Power Terminals
- 9Grounding
- 10Rated Charge Power

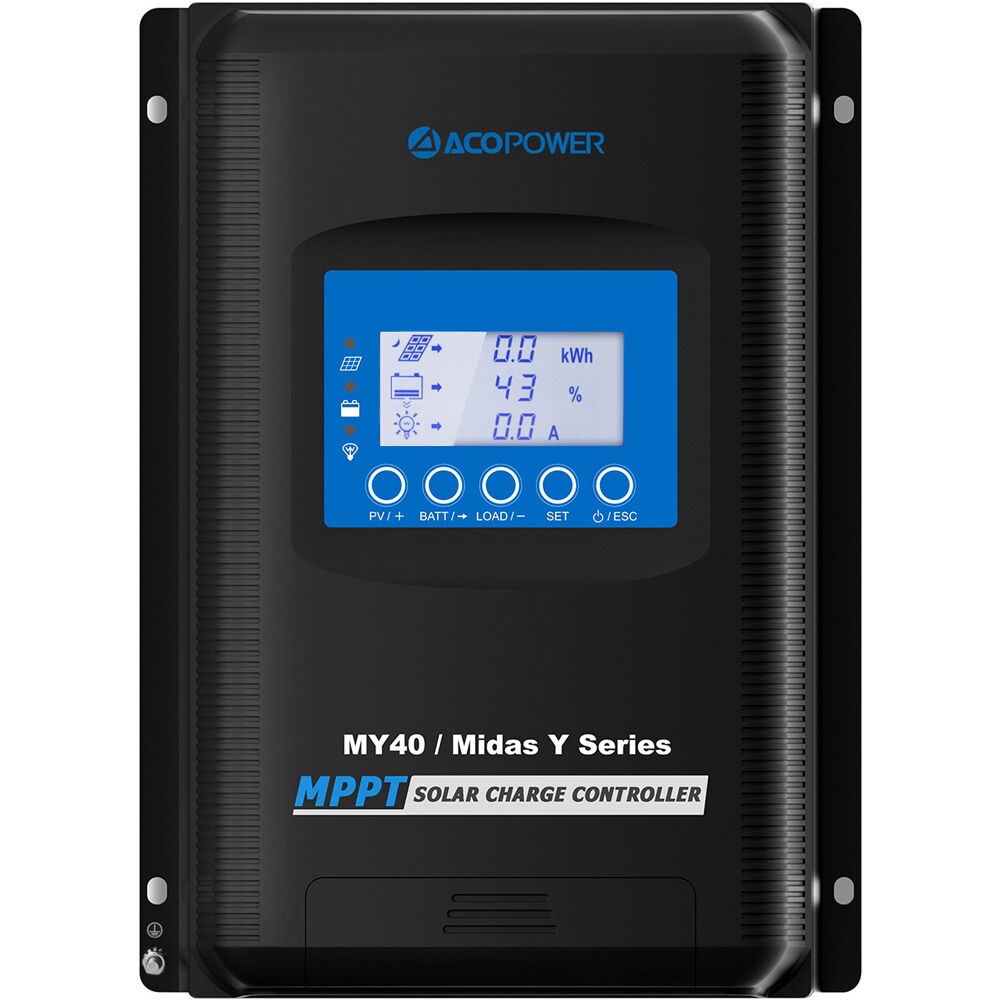

With the Midas 40A MPPT Solar Charge Controller from ACOPower, you can use your solar panels to safely and efficiently recharge 12 or 24V batteries. This negative-ground controller offers tracking efficiency up to 99.5% and 98% peak conversion efficiency. It can be used with flooded, sealed, gel, and Li-ion batteries. The plug-and-play controller is easy to use and automatically detects the solar panel voltage to deliver bulk, boost, float, and equalization charging.
Rated Charge Current
40A
Nominal System Voltage
12/24 VDC (auto)
Battery Input Voltage Range
8-32V
Maximum PV Open Circuit Voltage
100V at minimum operating temperature / 92V at 77°F
MPPT Voltage Range
Battery Voltage (+ 2V) - 72V

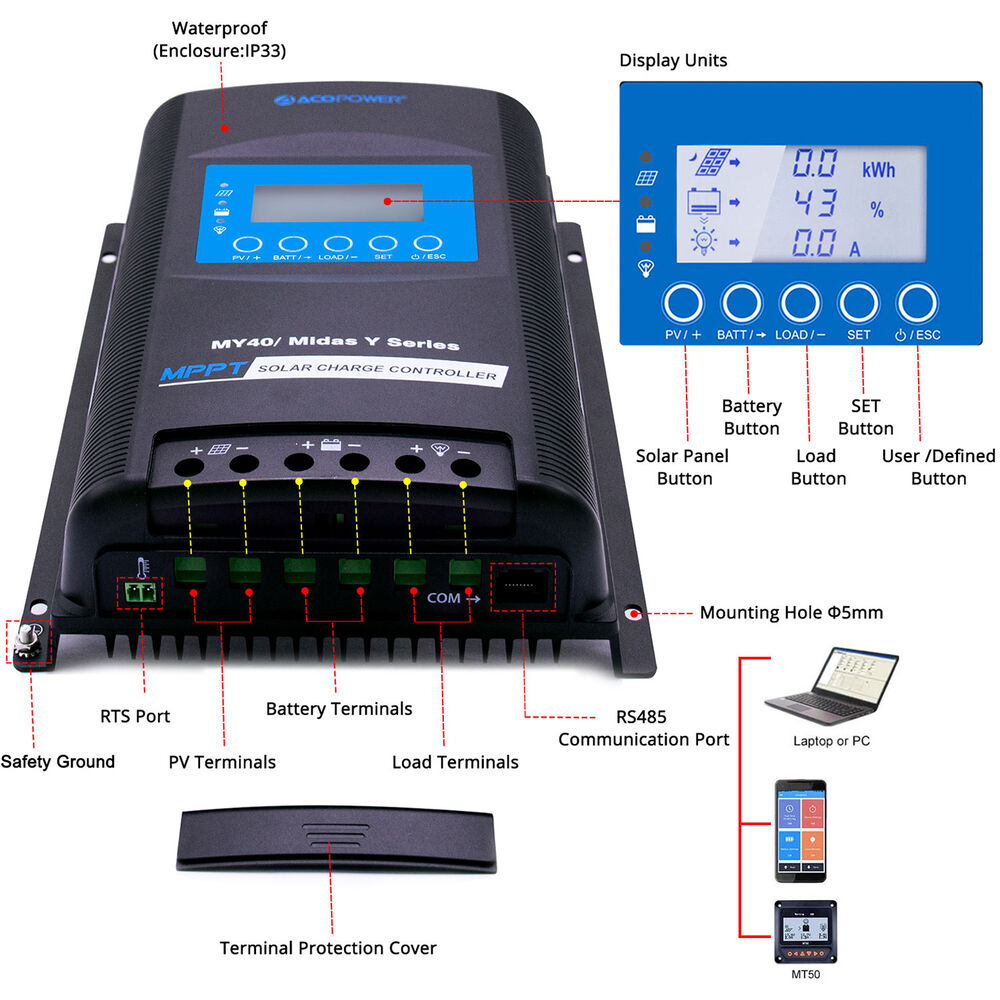

Communication Port
RS-485 (RJ45)
Power Terminals
Up to 6 AWG
Grounding
Common negative
Rated Charge Power
12V/520W, 24V/1040W
In the Box
- ACOPower Midas 40A MPPT Solar Charge Controller
- Temperature Sensor
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Rated Charge Current
- Nominal System Voltage
- Battery Input Voltage Range
- Maximum PV Open Circuit Voltage
- MPPT Voltage Range
- Communication Port
- Power Terminals
- Grounding
- Rated Charge Power
ACOPower 40A MPPT Specs
Environmental
| IP Rating | IP33 |
| Operating Temperature | -13 to 122°F / -25 to 50°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
Physical

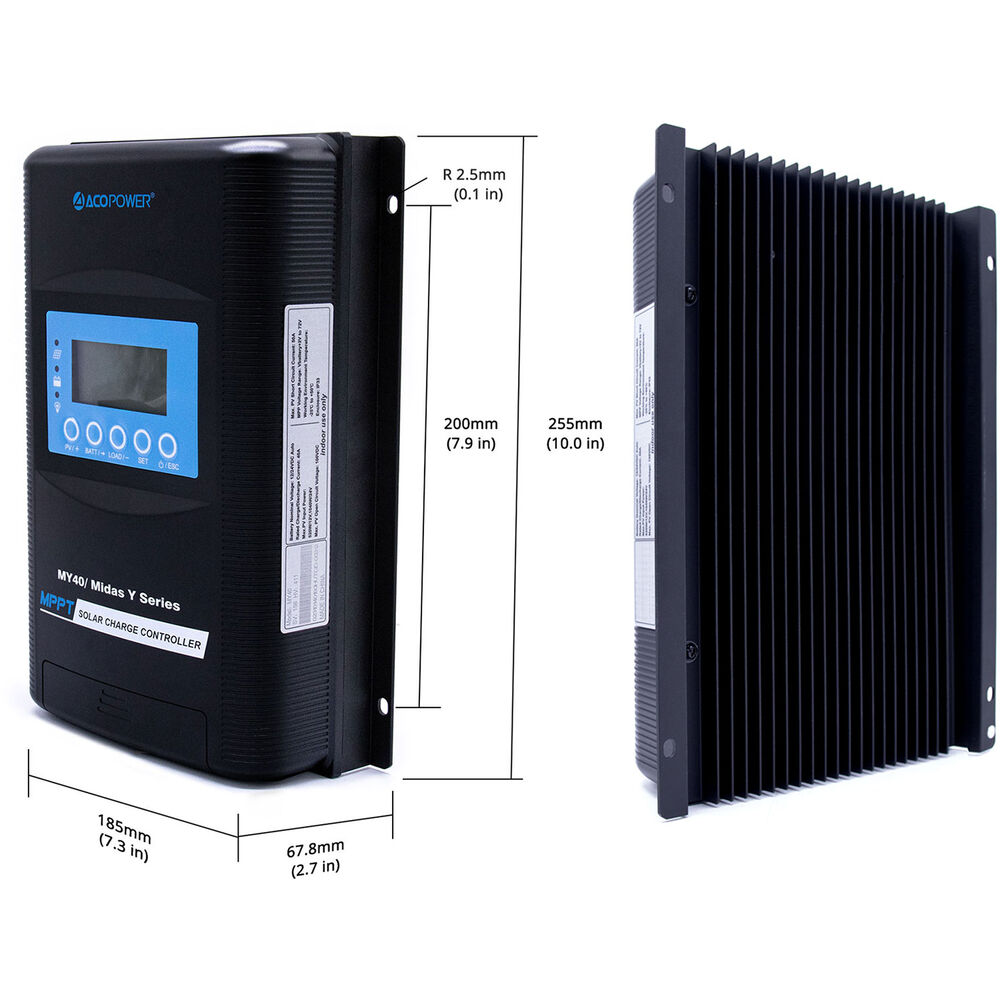

| Dimensions | 10 x 7.3 x 2.7" / 25.4 x 18.5 x 6.9 cm |
| Weight | 3.7 lb / 1.7 kg |
Packaging Info
| Package Weight | 4.3 lb |
| Box Dimensions (LxWxH) | 12.7 x 8.1 x 3.9" |
