ACOPower HY015-12P Overview

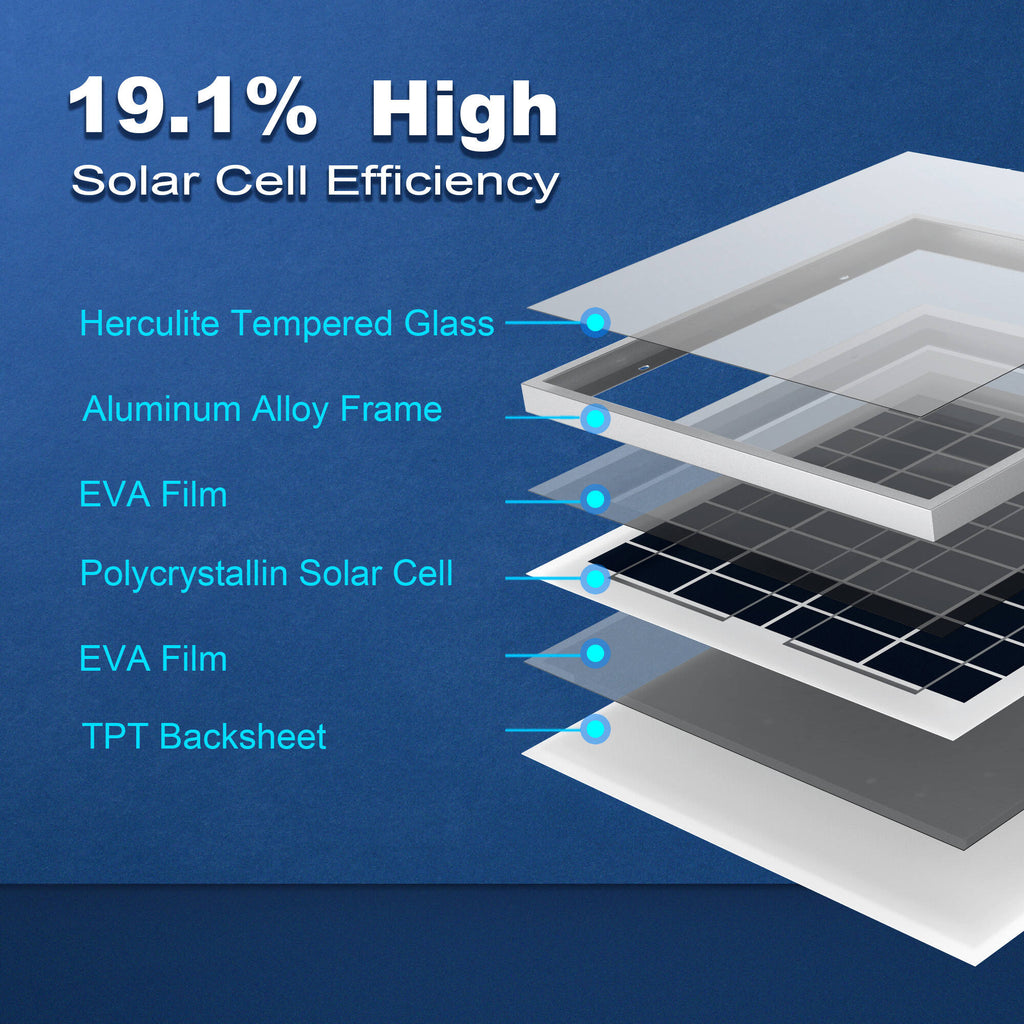

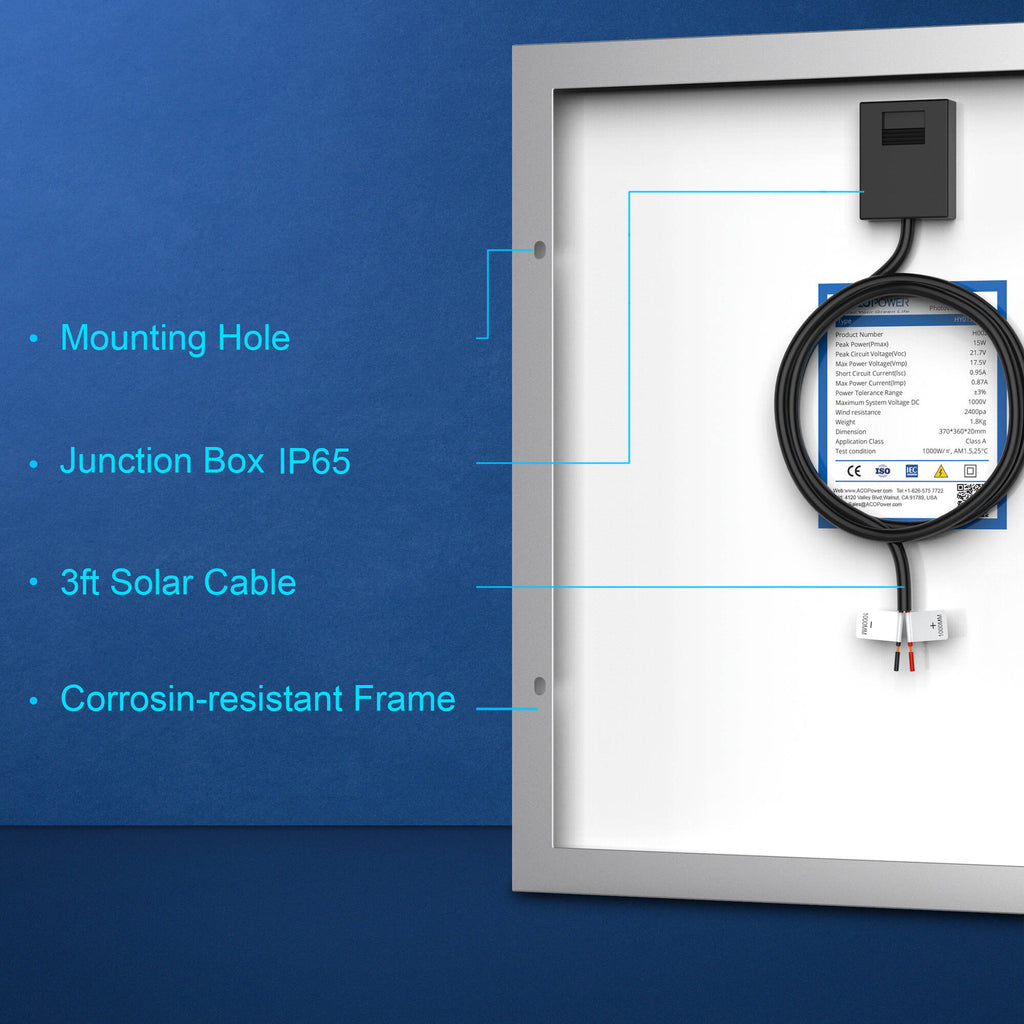

Suited to home, RV, van life, and many more applications, the ACOPower 15-Watt Polycrystalline Solar Panel collects renewable energy for charging 12-volt batteries and portable power stations. Pre-drilled for easy installation on a structure or vehicle, the panel is made with tempered glass that's been treated with antireflective coating, plus two layers of EVA film, a TPT backsheet, and an anodized aluminum frame�all designed to withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The junction box on the rear of the panel carries an IP65 water-resistance rating. The panel comes with a 3.2', 16 AWG cable with male and female quick connectors.
ACOPower HY015-12P Specs
| Efficiency |
19.1% |
| Maximum Power |
15 W |
| Operating Voltage |
17.5 V |
| Maximum Operating Current |
0.87 A |
| Open Circuit Voltage |
21.7 V |
| Short Circuit Output Current |
0.95 A |
| Operating Temperature |
-40 to 185°F / -40 to 85°C |

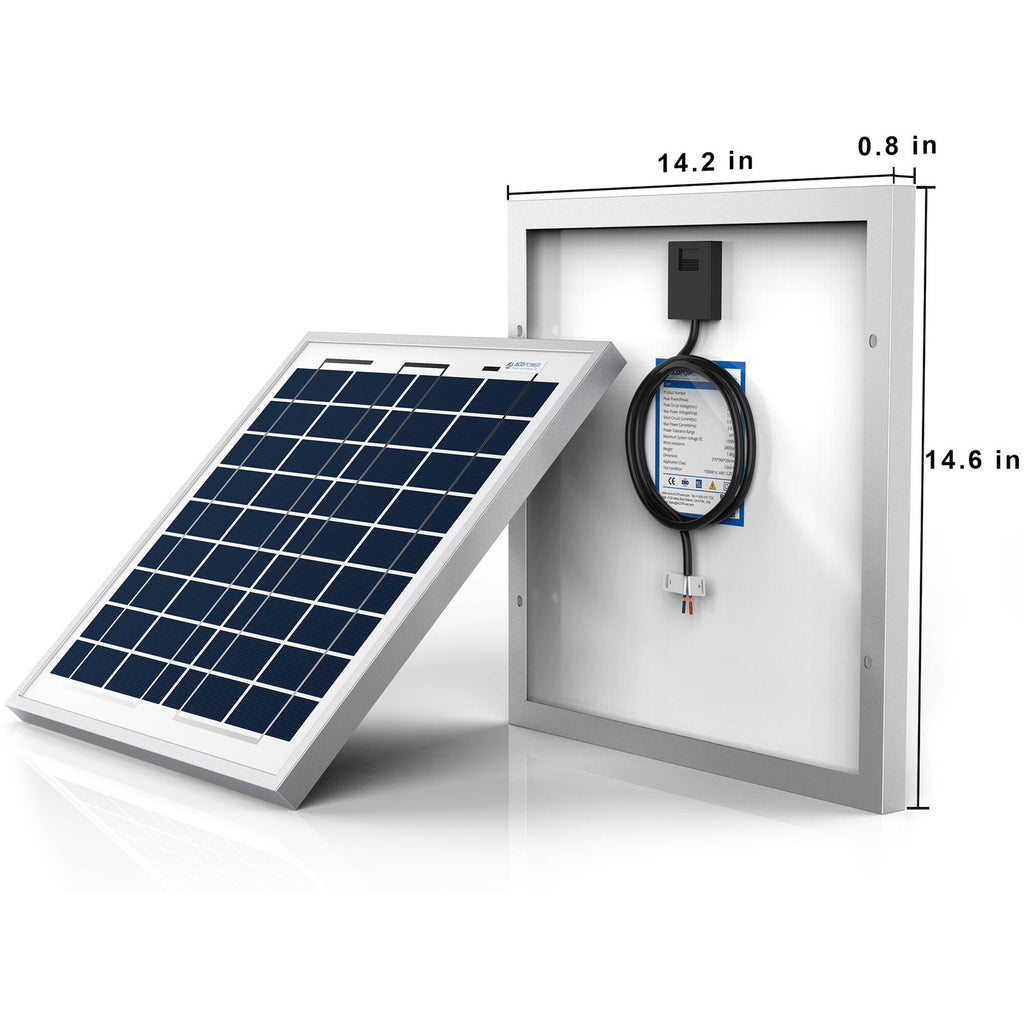

| Dimensions |
14.6 x 14.2 x 0.8" / 37 x 36 x 2 cm |
| Weight |
4 lb / 1.8 kg |
Packaging Info
| Package Weight |
3.7 lb |
| Box Dimensions (LxWxH) |
15 x 1.75 x 1.5" |
