ACOPower HY100-12M Overview

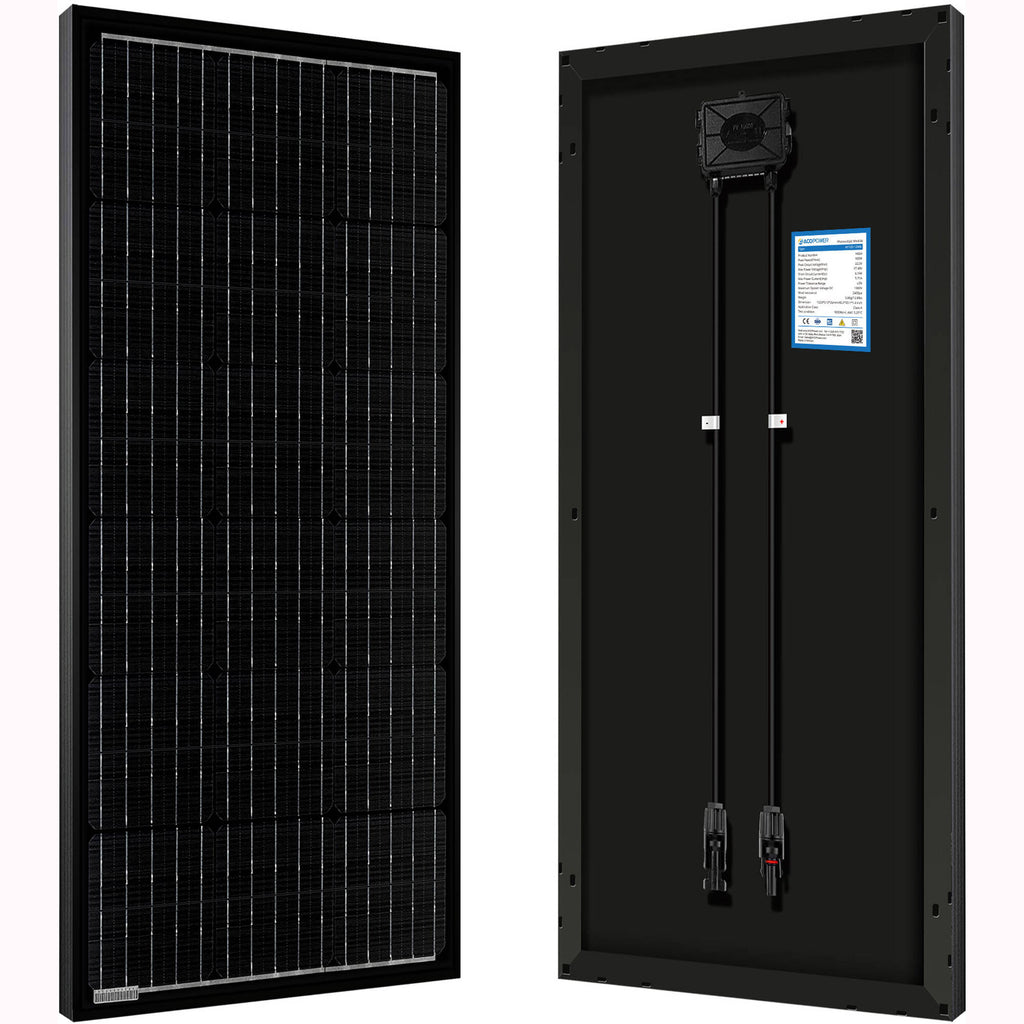

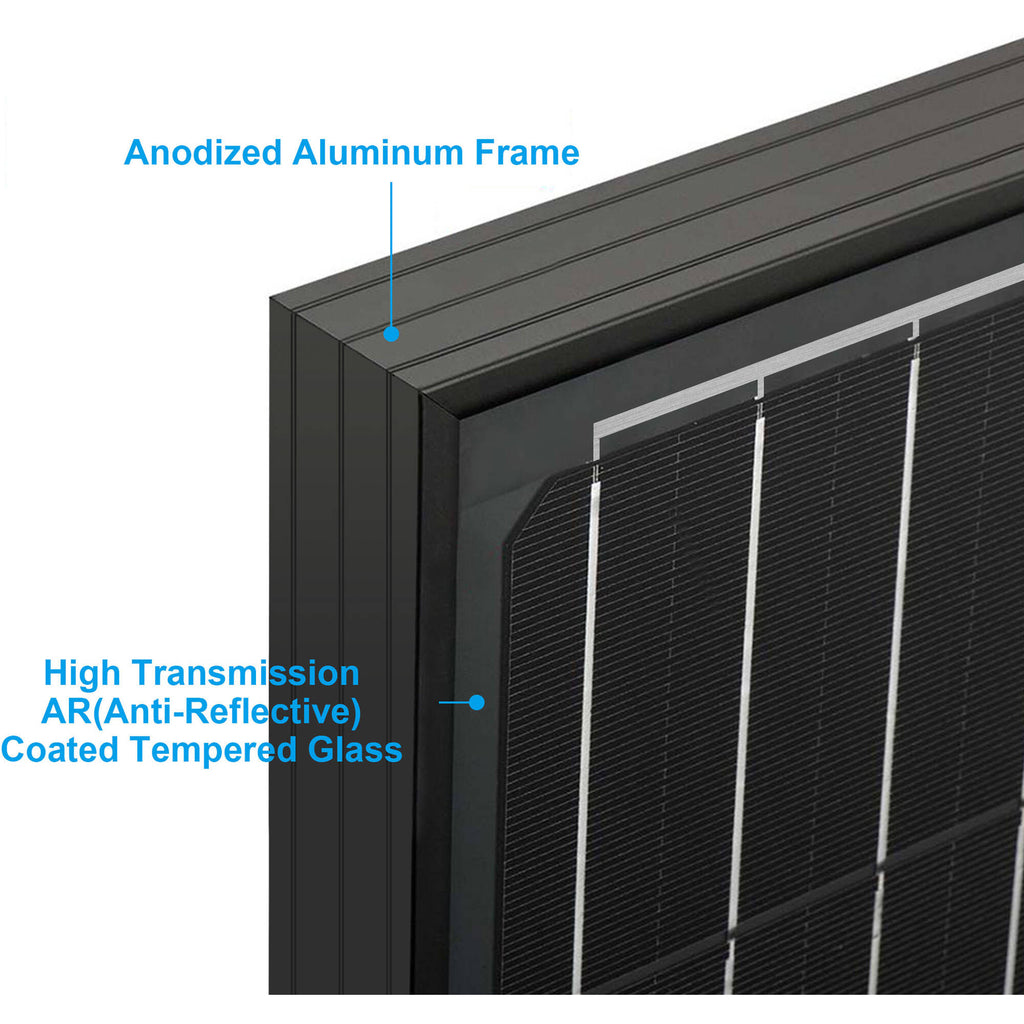

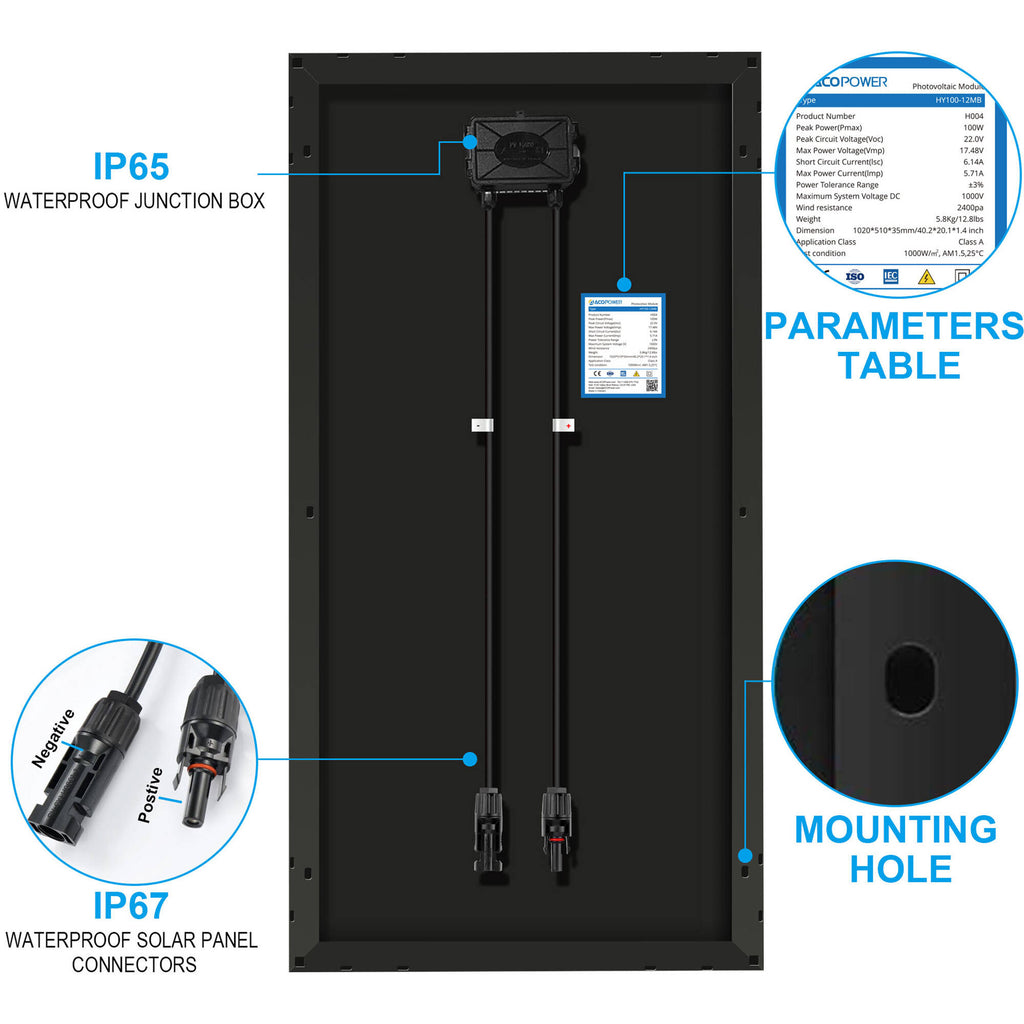

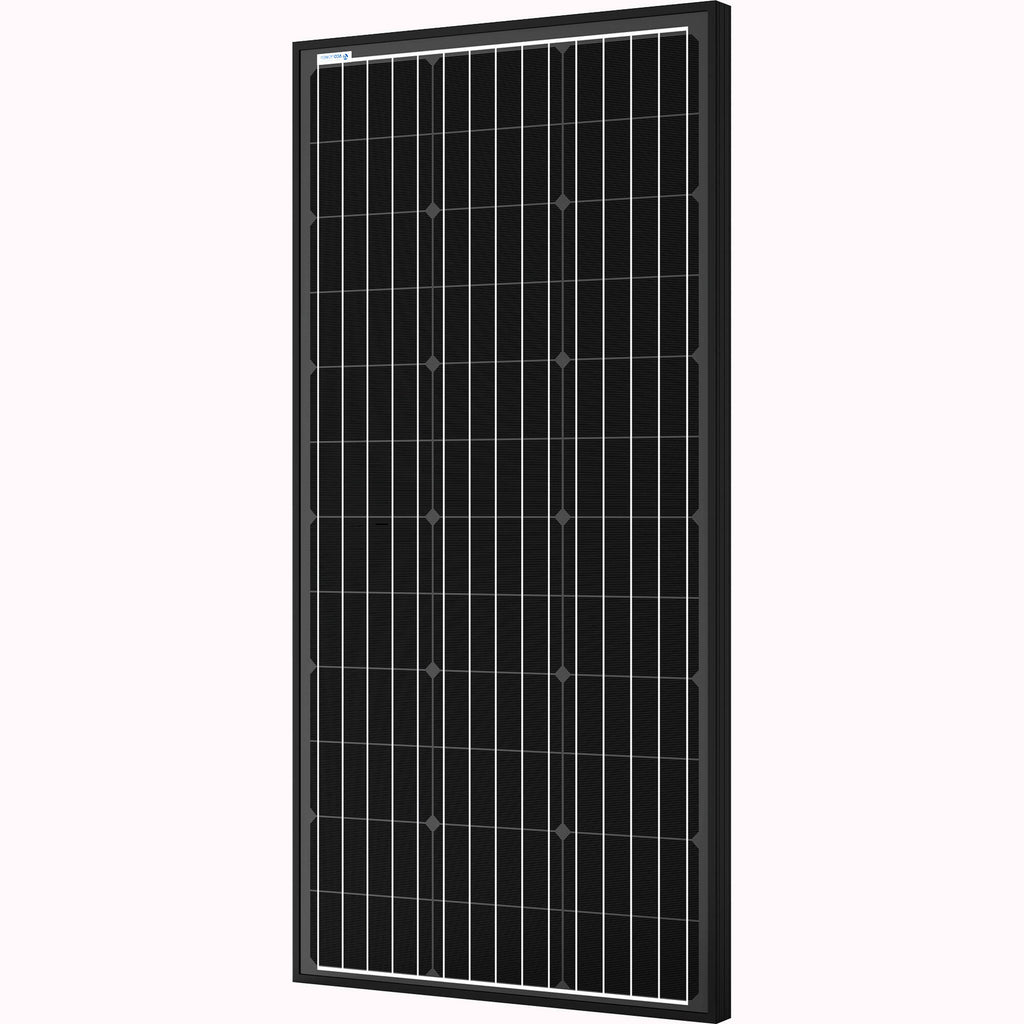

Suited to home, RV, van life, and many more applications, the ACOPower 100-Watt Monocrystalline Solar Panel collects renewable energy for charging 12-volt batteries and portable power stations. Pre-drilled for easy installation on a structure or vehicle, the panel is made with tempered glass that's been treated with antireflective coating, plus two layers of EVA film, a TPT backsheet, and an anodized aluminum frame�all designed to withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The junction box on the rear of the panel carries an IP65 water-resistance rating. The panel comes with a 3.2', 16 AWG cable with male and female quick connectors.
ACOPower HY100-12M Specs
| Efficiency |
22% |
| Maximum Power |
100 W |
| Operating Voltage |
17.48 V |
| Maximum Operating Current |
5.71 A |
| Open Circuit Voltage |
22 V |
| Short Circuit Output Current |
6.14 A |
| Operating Temperature |
-40 to 185°F / -40 to 85°C |
| Dimensions |
40.2 x 20.1 x 1.4" / 102 x 51 x 3.5 |
| Weight |
12.8 lb / 5.8 kg |
Packaging Info
| Package Weight |
15.05 lb |
| Box Dimensions (LxWxH) |
41.5 x 21.25 x 2.5" |
