Description
- Up to 1080p60 Uncompressed Transmission
- Range up to 394' with <1 ms Latency
- HDMI and 3G-SDI Input/Output
- Ten Channels at 5 GHz Frequency
- Signal Status Indicators
- Use up to Four Sets without Interruption
- Supports Multiple Audio Formats
- Pre-Paired Transmitter and Receiver Set

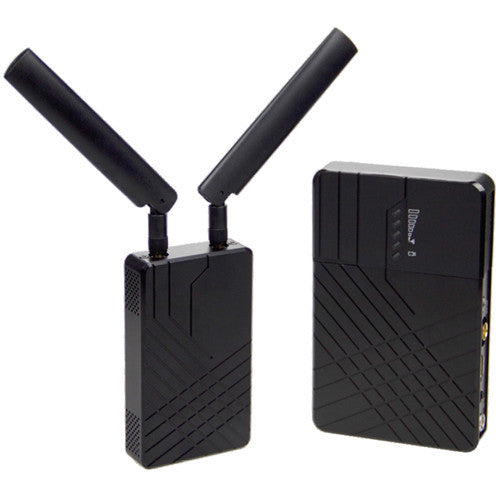

The Acebil WT-120 Wireless Video Transmitter/Recei ver Set provides HDMI/SDI audio/video transmission up to 394' away. It supports signals up to uncompressed 1080p. The WT-120's <1 ms latency provides real-time viewing, crucial for accurate focus pulling by your camera assistant. Up to four systems can be used together without interruption, each paired to one of 10 channels (at 5 GHz frequency). Each transmitter and receiver set is factory pre-paired, reducing on-set startup time.
Multiple audio formats are supported, including Dolby True HD, and DTS-HD master audio. An optional Sony NP-F970 battery adapter (available separately) can be used for powering the units.
�
- Up to 1080p uncompressed wireless video and audio transmission
- Transmits up to a distance of 394' with under one millisecond latency
- HDMI and 3G-SDI input and output
- Select from ten 5 GHz channels
- Employ up to four sets simultaneously
- Factory-paired transmitter and receiver sets
- LED indicators for receiver signal strength, network status, and video status
- Multiple audio formats are supported
- Works with optional Sony NP-F970 battery adapter plate
- Limited 1-Year Warranty
| Interface - Connectors | Transmitter: 1 x SDI input (BNC female) 1 x HDMI input (Type A female) 2 x Antenna ports (RF-2 SMA male) 1 x DC input (4-pin LEMO female) Receiver: 1 x SDI input (BNC female) 1 x HDMI input (Type A female) 1 x DC input (4-pin LEMO female) |
| Video Input/Output | HDMI: 1080p 23.98/24/25/29.9/30/50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60 625i 50/59.94/60 525i 50/59.94/60 3G/HD/SD-SDI (Auto-Selected): SMPTE-259/274/292/296/372/424/425 |
| Audio Input / Output | SDI 4-channel / embedded / 24-bit / 48 kHz |
| ESD Protection | All Ports: +/- 8 kV |
| Frequency | 5.1 to 5.9 GHz |
| Modulation Mode | OFDM 16-QAM |
| Transmission Distance | 131' (120 m) |
| Maximum Transmit Power | 21 dBm |
| Receiver Sensitivity | -75 dBm |
| Occupied Bandwidth | 40 MHz |
| Encryption | AES-128 |
| Material of Construction | Anodized aluminum |
| Power Supply Voltage | Transmitter/Receiver: 7 to 36 VDC |
| Power Consumption | Transmitter: <6.5 W Receiver: <7.5 W |
| Operating Temperature | 32 to 104�F (0 to 40�C) |
| Storage Temperature | -4 to 140�F (-20 to 60�C) |
| Dimensions (LxWxH) | Transmitter: 4.5 x 2.6 x 0.9" (11.5 x 6.7 x 2.3 cm) Receiver: 6.0 x 3.7 x 0.9" (15.2 x 9.5 x 2.3 cm) |
| Weight | Transmitter: 9.5 oz (270 g) Receiver: 12.5 oz (355 g) |
