- Supports Loads Up to 33 lb
- CH6 Fluid Head
- 1-Stage T1000 Aluminum Tripod
- 100mm Ball/Bowl
- 6-Step Counterbalance
- 6-Step Pan & Tilt Drag
- Height Range: 32.2 to 53.3"
- GS-3 Ground Spreader
- S-50 Carry Case

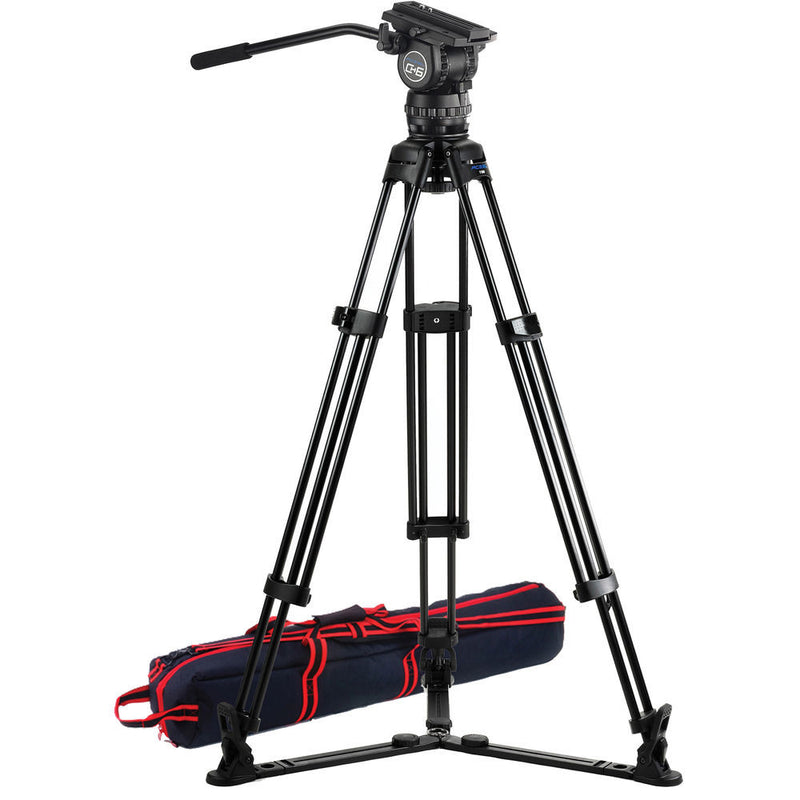

The Acebil CS-680G Professional Tripod System features a 100mm ball CH6 Fluid Head, T1000 Aluminum Tripod, GS-3 Ground Spreader, and a S-50 Carry Case. The head supports loads up to 33 pounds and has a 6-step counterbalance and independent 6-step pan and tilt drag. It comes equipped with a sliding quick-release plate and pan handle.
The 100mm bowl T1000 tripod features a 1-stage design and aluminum construction. It has a height range of 32.2 to 53.3" and comes with a GS-3 Ground Spreader for enhanced stability. A carrying case is included for easy storage and transport of the tripod system.
- Key Features
-
- Supports up to 33 lb
- CH6 Fluid Head (100mm ball)
- 6-Step counterbalance
- 6-Step pan/tilt drag
- LED illuminated bubble level
- 1-Stage T1000 aluminum tripod with 100mm bowl
- Tripod height range: 32.2 to 53.3"
- GS-3 Ground Spreader enhances tripod stability and holds the tripod legs in position
- S-50 Carry Case included for storing and transporting the tripod system
In the Box
Acebil CS-680G Professional Tripod System
Head |
Payload | Approx. 33 lb (15 kg) |
Ball Diameter | 100 mm |
Counterbalance | 6 steps plus zero |
Pan Drag | 6 steps plus zero |
Tilt Drag | 6 steps plus zero |
Pan Lock | Yes |
Tilt Lock | Yes |
Tilt Range | +85� / -75� |
Panning Range | 360� |
Quick Release Plate | Yes |
Leveling Bubble / Illuminated | Yes / Yes |
Weight | Not specified by manufacturer |
Tripod Legs |
Load Capacity | 88 lb (40 kg) |
Pipe Material | Aluminum |
Height | 32.2 to 53.3" (82 to 143 cm) |
Bowl Diameter | 100 mm |
Sections | 1 stage |
Spreader | Ground level |
Weight | 7.9 lb (3.6 kg) |
