- Supports Loads Up to 26.4 lb
- CH4 Fluid Head
- 2-Stage T1002 Aluminum Tripod
- 100mm Ball/Bowl
- 6-Step Counterbalance
- 4-Step Pan & Tilt Drag
- Height Range: 17.7 to 60.2"
- GS-3 Ground Spreader
- S-52 Carry Case

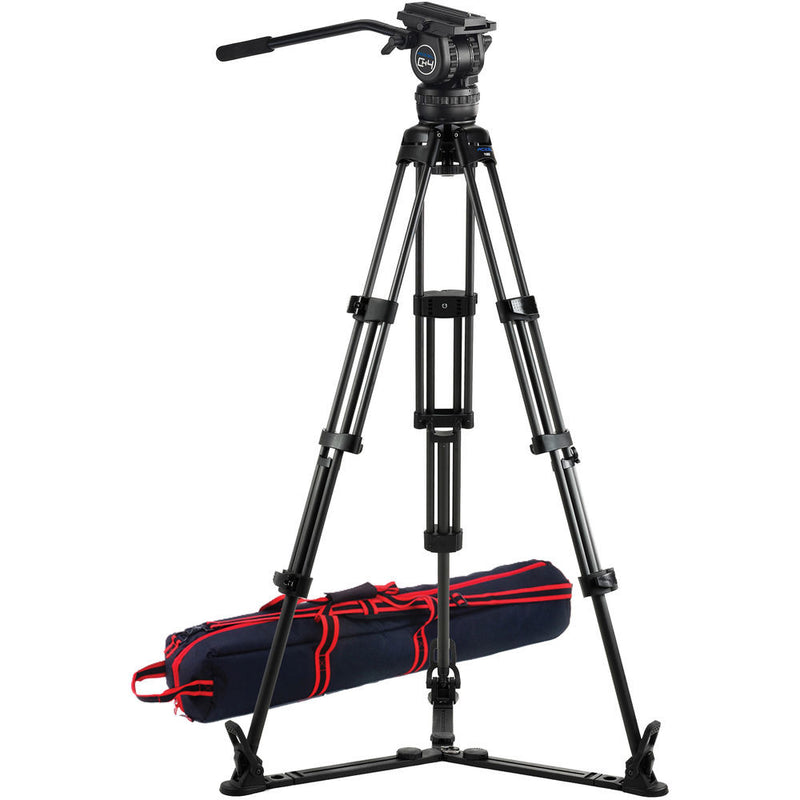

The Acebil CS-482G Professional Tripod System features a 100mm ball CH4 Fluid Head, T1002 Aluminum Tripod, GS-3 Ground Spreader, and a S-52 Carry Case. The head supports loads up to 26.4 pounds and has a 6-step counterbalance and independent 4-step pan and tilt drag. It comes equipped with a sliding quick-release plate and pan handle.
The 100mm bowl T1002 tripod features a 2-stage design and aluminum construction. It has a height from of 17.7 to 60.2" and comes with a GS-3 Ground Spreader for enhanced stability. A carrying case is included for easy storage and transport of the tripod system.
- Key Features
-
- Supports up to 26.4 lb
- CH4 Fluid Head (100mm ball)
- 6-Step counterbalance
- 4-Step pan/tilt drag
- 2-Stage T1002 aluminum tripod with 100mm bowl
- Tripod height range: 17.7 to 60.2"
- GS-3 Ground Spreader enhances tripod stability and holds the tripod legs in position
- S-52 Carry Case included for storing and transporting the tripod system
In the Box
Acebil CS-482G Professional Tripod System
| Head |
| Payload | Approx. 26.4 lb (12 kg) |
| Ball Diameter | 100 mm |
| Counterbalance | 6 steps plus zero |
| Pan Drag | 4 steps plus zero |
| Tilt Drag | 4 steps plus zero |
| Pan Lock | Yes |
| Tilt Lock | Yes |
| Tilt Range | +85� / -75� |
| Panning Range | 360� |
| Quick Release Plate | Yes |
| Weight | Not specified by manufacturer |
| Tripod Legs |
| Load Capacity | 88 lb (40 kg) |
| Pipe Material | Aluminum |
| Height | 17.7 to 60.2" (45 to 153 cm) |
| Bowl Diameter | 100 mm |
| Sections | 2 stage |
| Spreader | Ground level |
| Weight | 9.3 lb (4.2 kg) |
| Packaging Info |
| Package Weight | 21.2 lb |
| Box Dimensions (LxWxH) | 39.4 x 9.0 x 8.1" |
