- Supports Loads Up to 26.4 lb
- CH4 Fluid Head
- 1-Stage T1000 Aluminum Tripod
- 100mm Ball/Bowl
- 6-Step Counterbalance
- 4-Step Pan & Tilt Drag
- Height Range: 32.2 to 53.3"
- MS-3 Mid-Level Spreader
- RF-3 Rubber Feet
- S-50 Carry Case

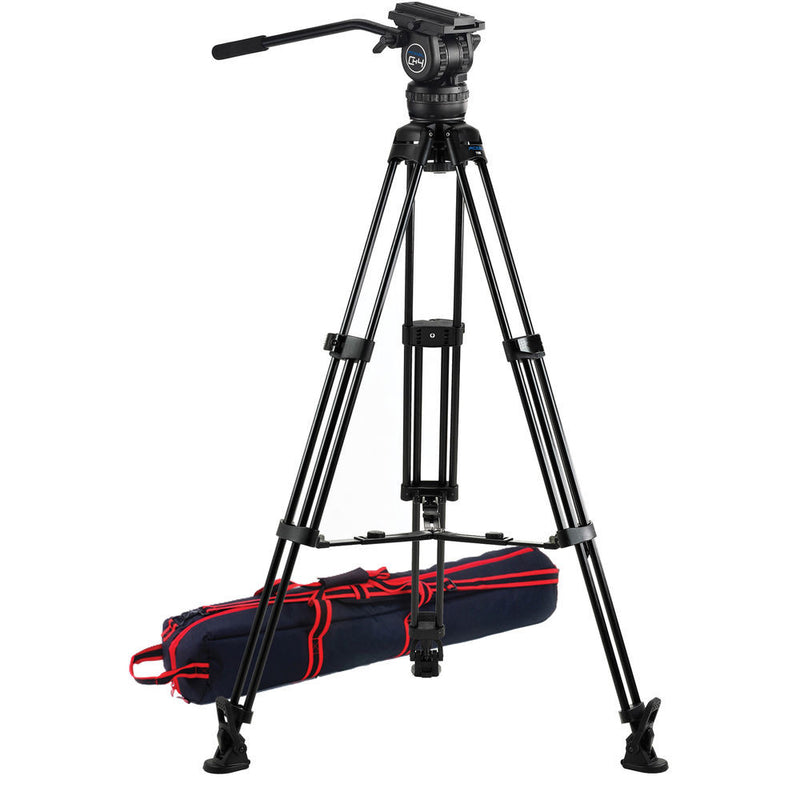

The Acebil CS-480M Professional Tripod System features a 100mm ball CH4 Fluid Head, T1000 Aluminum Tripod, MS-3 Mid-Level Spreader, RF-3 Rubber Feet, and a S-50 Carry Case. The head supports loads up to 26.4 pounds and has a 6-step counterbalance and independent 4-step pan and tilt drag. It comes equipped with a sliding quick-release plate and pan handle.
The 100mm bowl T1000 tripod features a 1-stage design and aluminum construction. It has a height range of 32.2 to 53.3" and comes with a MS-3 Mid-Level Spreader for enhanced stability. The RF-3 Rubber Feet help protect indoor surfaces from tripod feet abrasions. A carrying case is included for easy storage and transport of the tripod system.
- Key Features
-
- Supports up to 26.4 lb
- CH4 Fluid Head (100mm ball)
- 6-Step counterbalance
- 4-Step pan/tilt drag
- 1-Stage T1000 aluminum tripod with 100mm bowl
- Tripod height range: 32.2 to 53.3"
- MS-3 Mid-Level Spreader enhances tripod stability and holds the tripod legs in position
- RF-3 Rubber Feet
- S-50 Carry Case included for storing and transporting the tripod system
In the Box
Acebil CS-480M Professional Tripod System
| Head |
| Payload | Approx. 26.4 lb (12 kg) |
| Ball Diameter | 100 mm |
| Counterbalance | 6 steps plus zero |
| Pan Drag | 4 steps plus zero |
| Tilt Drag | 4 steps plus zero |
| Pan Lock | Yes |
| Tilt Lock | Yes |
| Tilt Range | +85�° / -75�° |
| Panning Range | 360� |
| Quick Release Plate | Yes |
| Weight | Not specified by manufacturer |
| Tripod Legs |
| Load Capacity | 88 lb (40 kg) |
| Pipe Material | Aluminum |
| Height | 32.2 to 53.3" (82 to 143 cm) |
| Bowl Diameter | 100 mm |
| Sections | 1 stage |
| Spreader | Mid-level |
| Weight | 7.9 lb (3.6 kg) |
