Description
Accsoon CineView SE Overview
- 1Description
- 2Wireless Transmission
- 3Apps
- 4Twin Image Transmission
- 5Video Input/Output
- 6Design

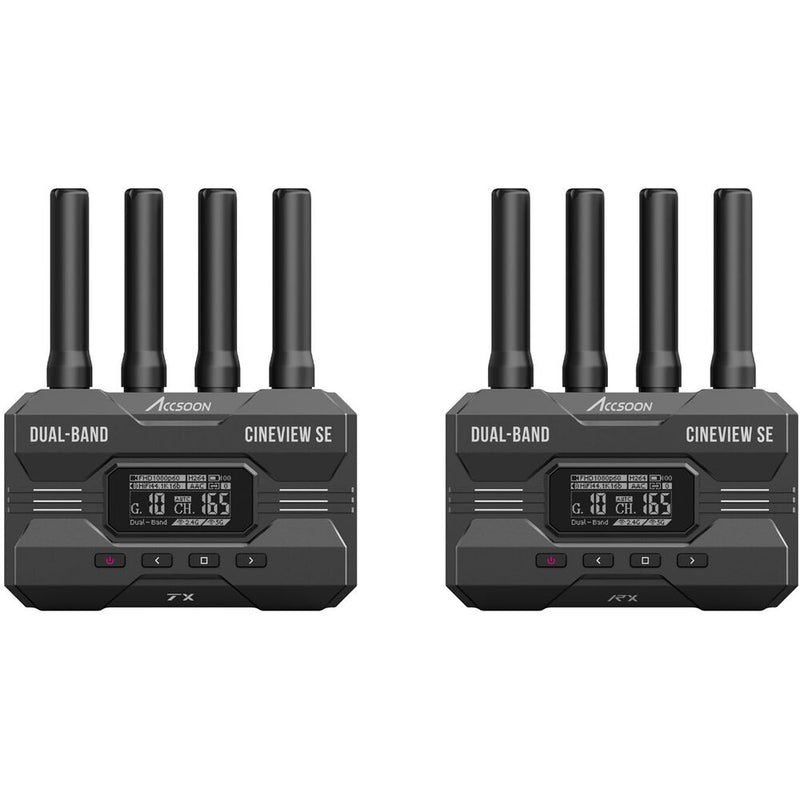

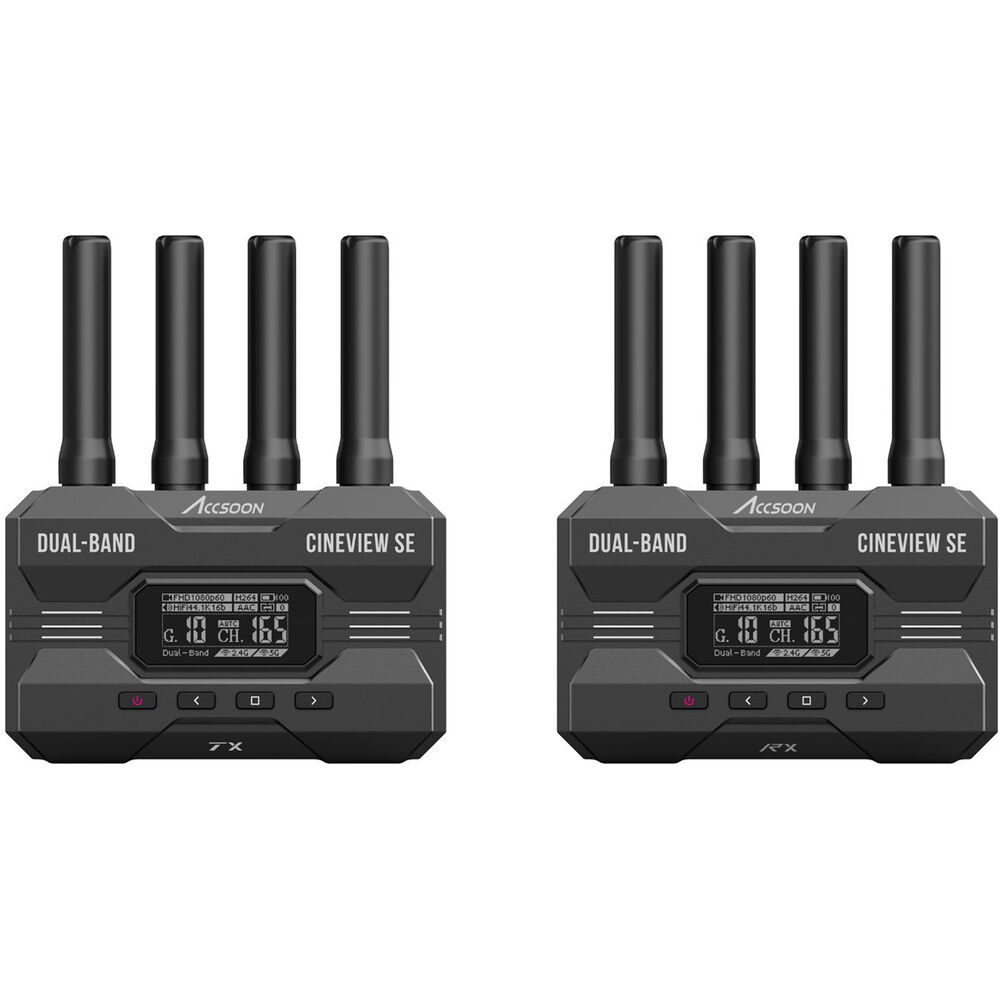

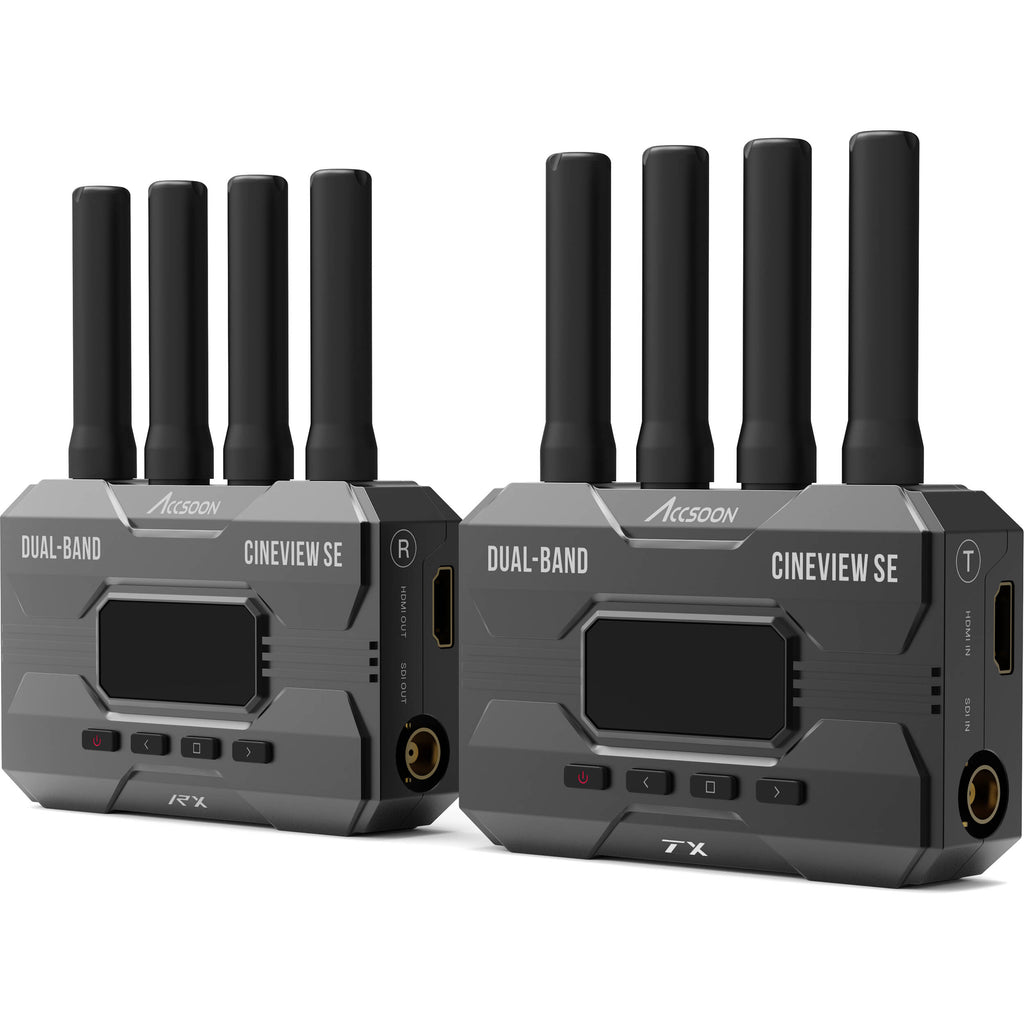

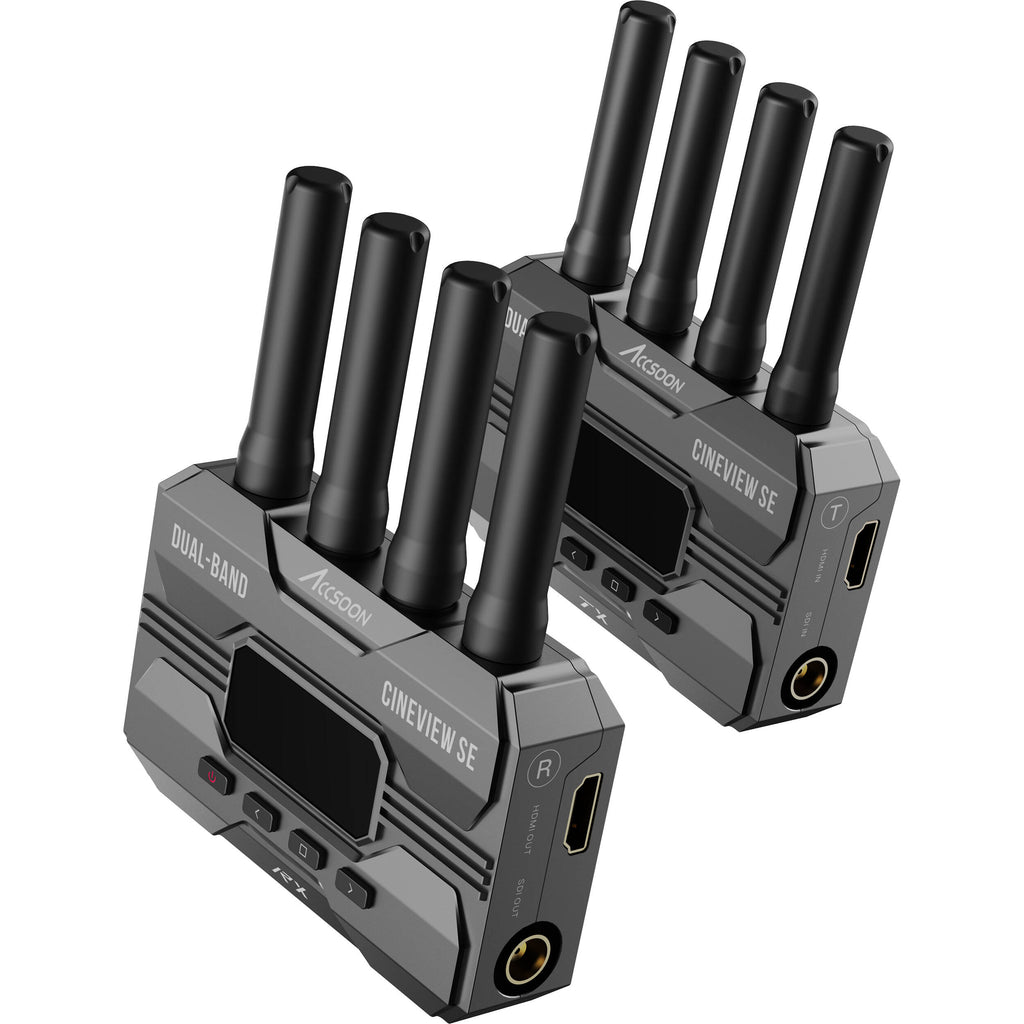

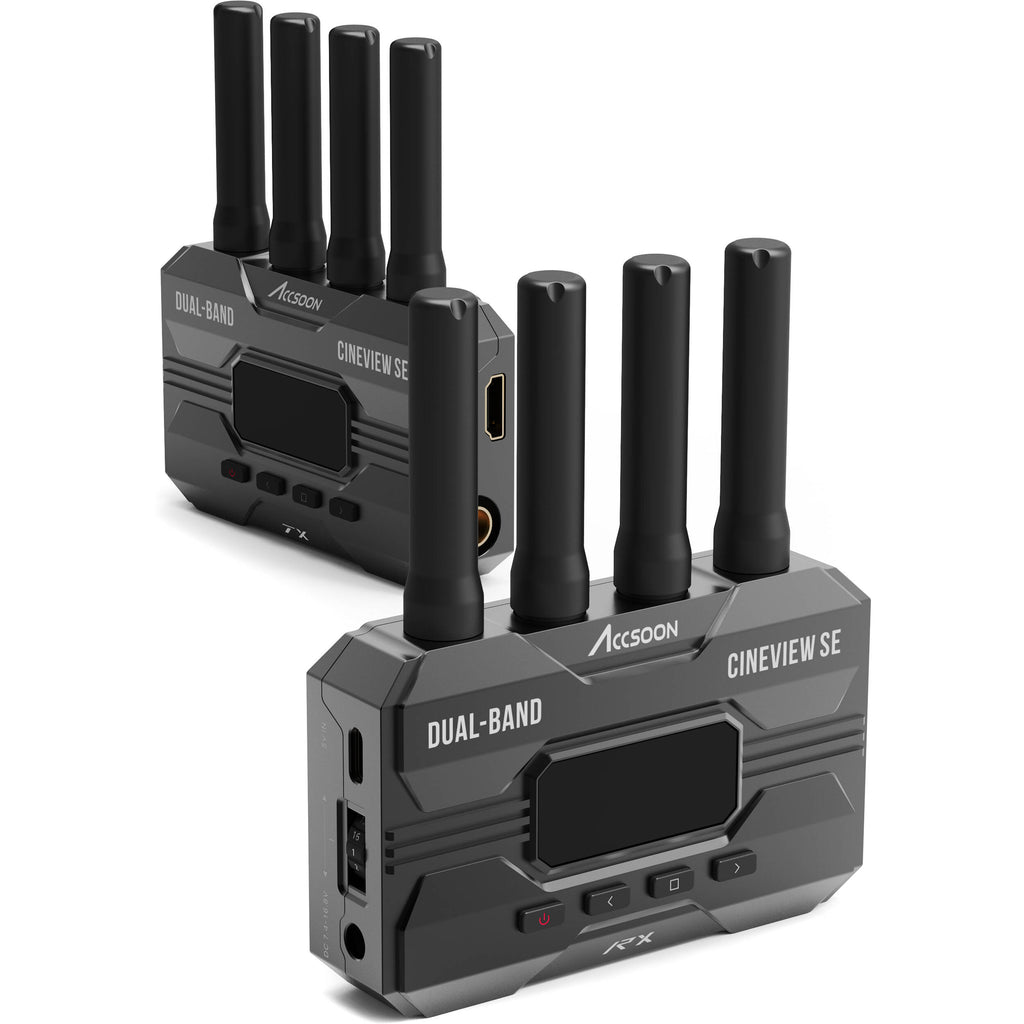

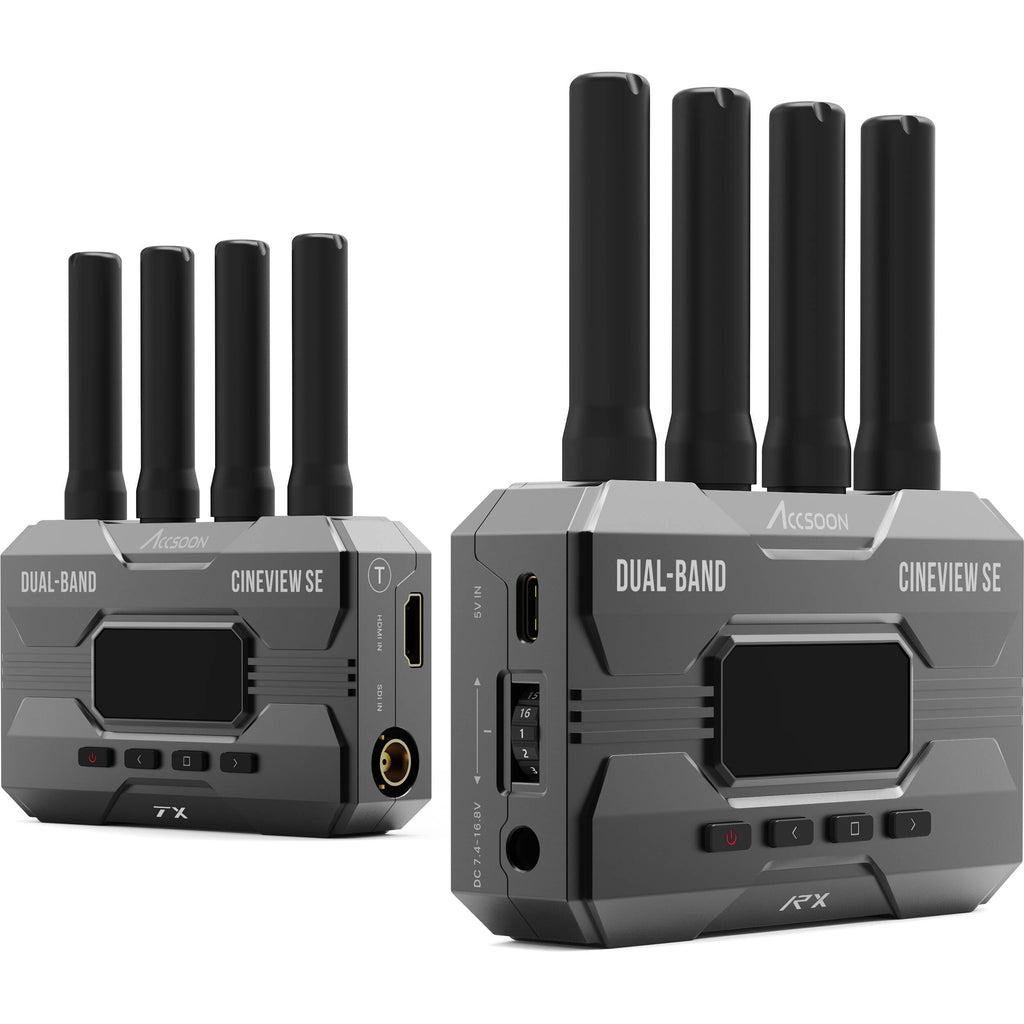

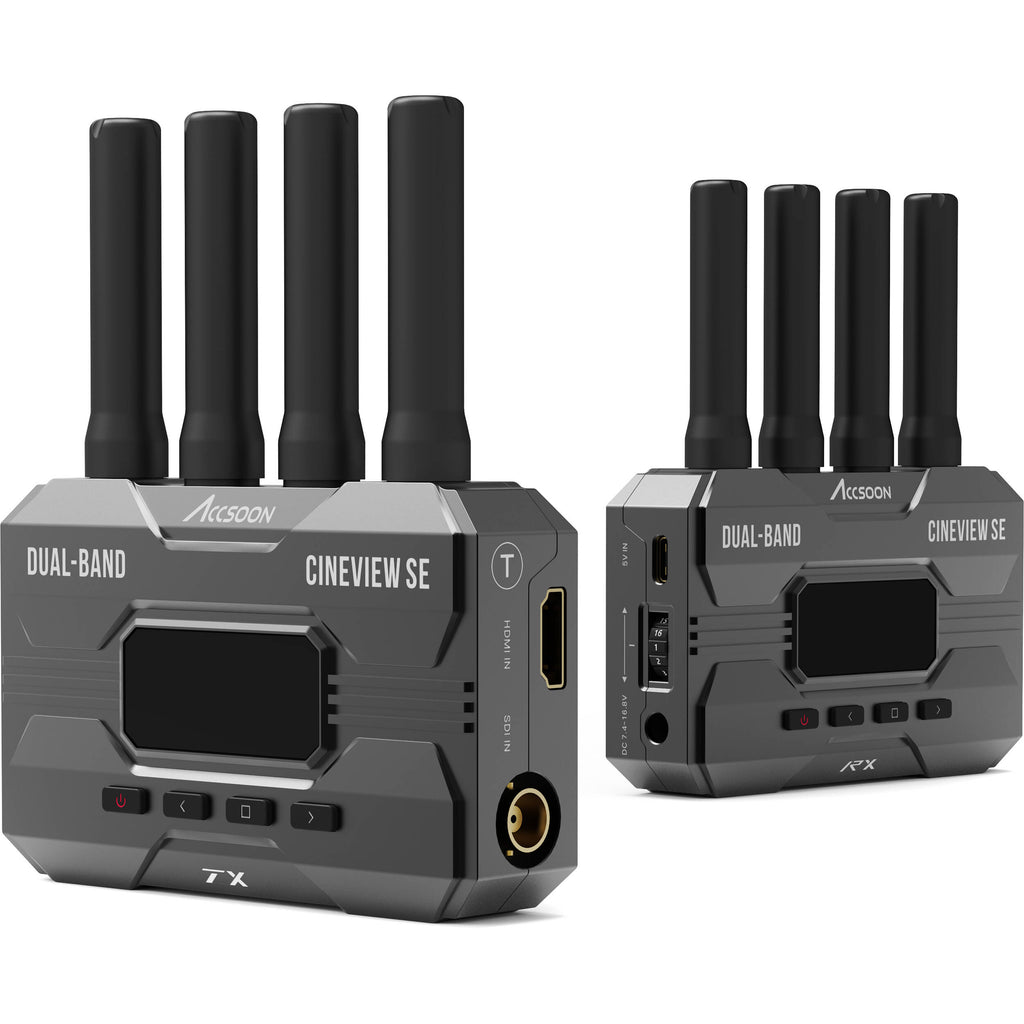

The CineView SE Multi-Spectrum Wireless Video Transmission System from Accsoon has been updated from previous models with an even smaller and lighter form factor. With the SE, you can now send signal to a total of four devices simultaneously over distances up to 1200' with only a 50ms delay, and you can still transmit to any mix of receivers and iOS/Android smartphones and tablets.
Like other models, the CineView SE allows you to send a 1080p60 camera signal to the included receiver plus up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI or SDI camera signal. Its Quad technology allows you to transmit exact copies of your transmission over 2.4 and 5 GHz signals for redundant, high-quality images.
The included dedicated receiver is easy to set up and pair, and it features an HDMI and SDI output. The free-to-download companion app installs on a tablet or smartphone and it features image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay, and new features include Smart Sharpening and Onion Skin overlay. The transmitter and receiver feature DC power inputs, USB Type-C power inputs, and they also support an optional L-series battery that can power the set for up to 12 hours.
In the Box
- Accsoon CineView SE Multi-Spectrum Wireless Video Transmission System
- CineView Quad Transmitter
- CineView Quad Receiver
- Shoe Mount
- Description
- Wireless Transmission
- Apps
- Twin Image Transmission
- Video Input/Output
- Design
Accsoon CineView SE Specs
| Antenna I/O | Transmitter/Receiver: 4 x RP-SMA |
| Video I/O | Transmitter: 1 x HDMI Input Transmitter: 1 x BNC (3G-SDI) Input Receiver: 1 x HDMI Output Receiver: 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x Barrel 2.1 mm (16.8 VDC) Input Transmitter/Receiver: 1 x USB-C (5 VDC) Input |
| Encryption | None |
| Wireless Range | 1200' / 365.8 m |
| # of Channels | 20 |
| Frequency Range | 2412 to 2472 MHz 5180 to 5580 MHz 5660 to 5825 MHz |
| Latency | < 50 ms |
| RF Power | 17 dBm |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | None |
| Video Format | HDMI/SDI/Wireless 1080p: 60/59.94/50/30/29.97/25/24/23.98 |
| Audio Format | 2-Channel 24-Bit 48 kHz PCM Audio |
| Timecode Support | No |
| DC Input Power | 7.4 to 16.8 VDC |
| Battery Type | Transmitter/Receiver: 1 x L-Series |
| Power Consumption | Transmitter: 4.5 W (Typical) Receiver: 3.5 W (Typical) |
| Mounting | 1 x 1/4"-20 Female |
| IP Rating | None |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Material of Construction | Aluminum |
| Dimensions | Transmitter/Receiver: 4.1 x 2.6 x 1.3" / 10.5 x 6.6 x 3.2 cm |
| Weight | Transmitter/Receiver: 7.4 oz / 210 g, Including Antenna |
| Package Weight | 1.85 lb |
| Box Dimensions (LxWxH) | 8.2 x 5.8 x 2.2" |
Accsoon CineView SE Reviews
SDI I/Os are too small
I was really looking forward to upgrading my 2s Pro which provided everything I was looking for in a budget wireless TX/RX solution to what I was hoping was going to be this because of the much better form factor and size. However, I realize that the slots for the SDI ports on the units only fit cables with an end that were smaller than a specific diameter, any bigger and they are not able to be locked in. This is not a huge deal breaker but it is disappointing because I do have to buy additional SDI cables.
NOT for critical focus
I was hopeful that the multi-spectrum would help with range and interference, however this isn't even a clear picture when you're standing within 0-25ft. Latency was a lot better than I expected, however there just isn't enough sharpness in there to confidently pull focus. It also appeared to shift the color considerably pink.
Worked perfectly in a live event environment.
I'm really surprised there are no reviews for this product. After reviewing a few of the major, lower-price wireless video solutions during NAB, I have to say they are all major improvements vs. what my teradek (no knock to them, their current line up is amazing) back in the day could do. I choose to move forward with them because they are focused on wireless video AND, they are one of the few products that Tx both on 2.4 and 5GHz concurrently. I just used the Accsoon out of the box for a major live stream with a few hundred attendees and it worked great! Major chance I took with them as I hadn't had the chance to fully test the equipment prior. The unit boots up quickly, we powered it via USB from our V mount battery, and it just worked great. When we did a battery swap, no issues. I will pick up a few more of these as I'm really impressed with the quality and engineering.
Perfect for my needs
Works perfectly out of the box. Right now only running about 50 feet. But am confident this will provide great signal range
Loses signal frequently
Sold Hollyland 400s to get this and the Accsoon doest do well with SDI input dropping signal constantly. You cannot cross connect the hdmi and SDI and also the build quality feels like I'm going to break it for sure so I really regret not sticking with the Hollyland 400s even though it had less distance it was rock solid every time.
