Accsoon CineView SE Overview
-
1Description
-
2Wireless Transmission
-
3Apps
-
4Twin Image Transmission
-
5Video Input/Output
-
6Design

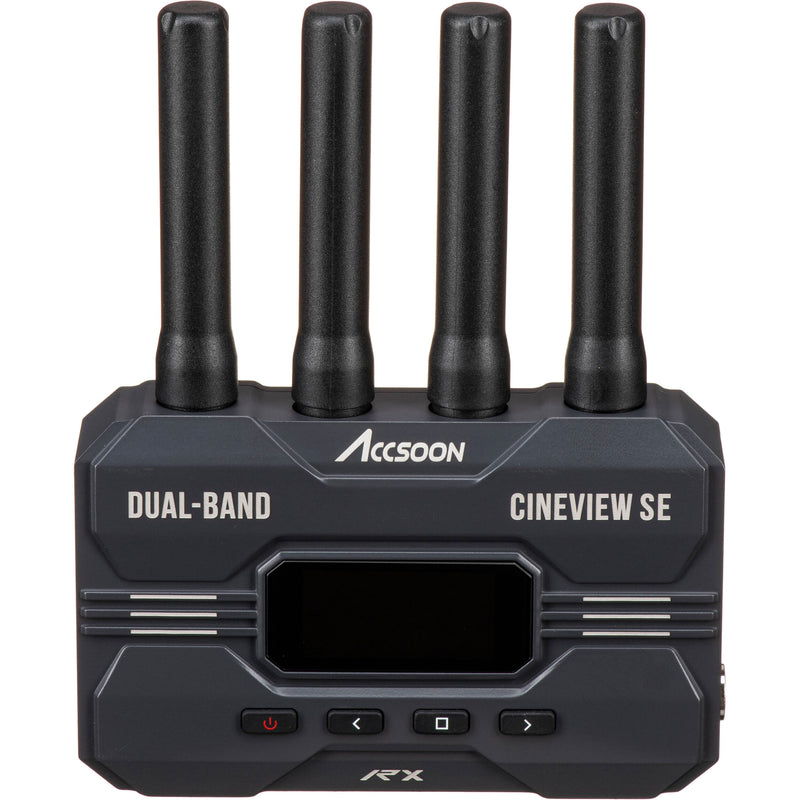

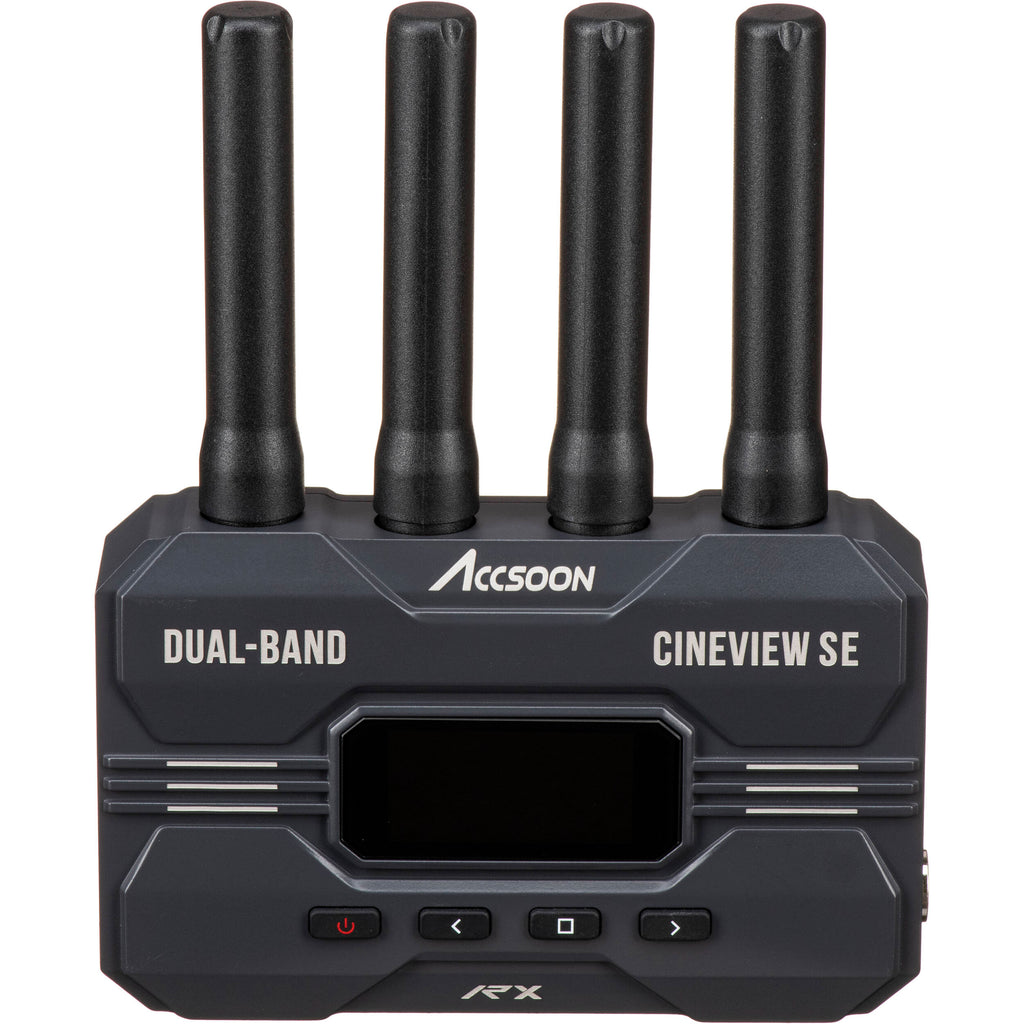

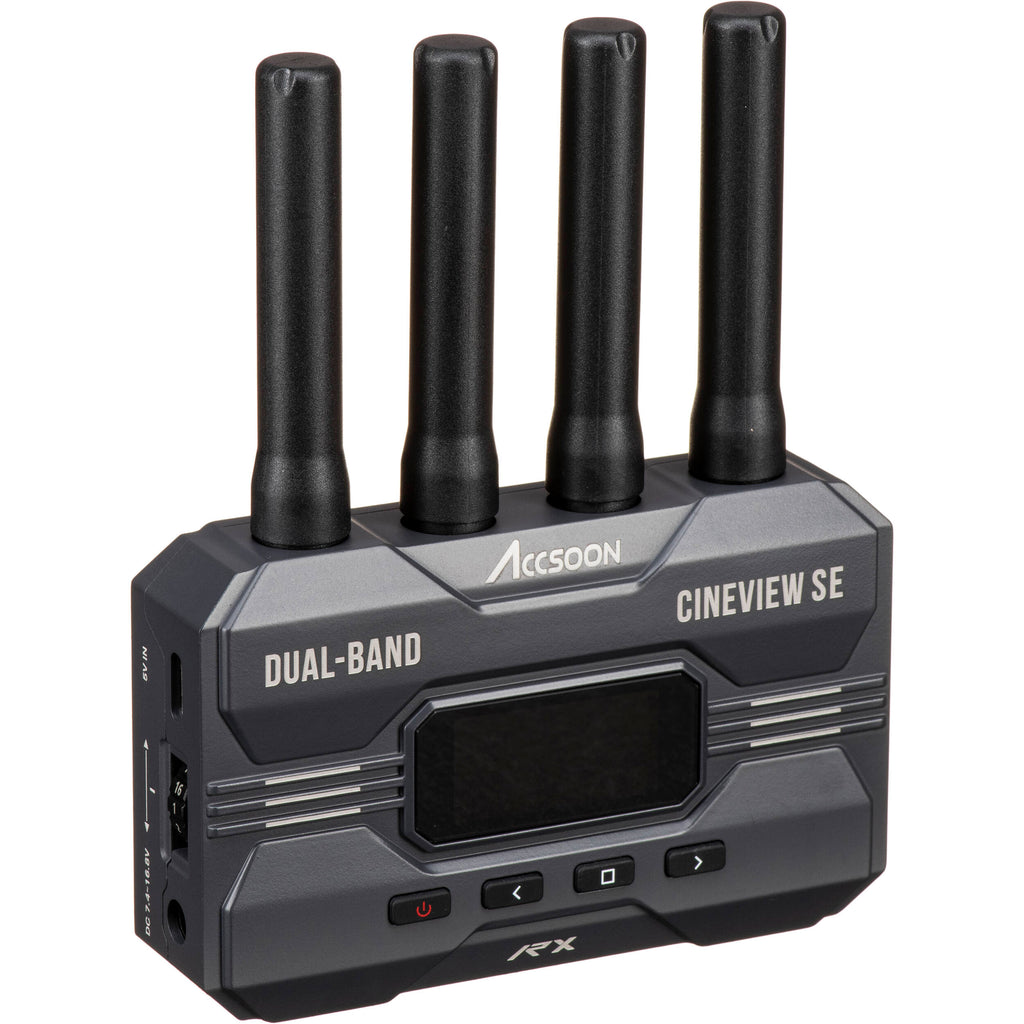

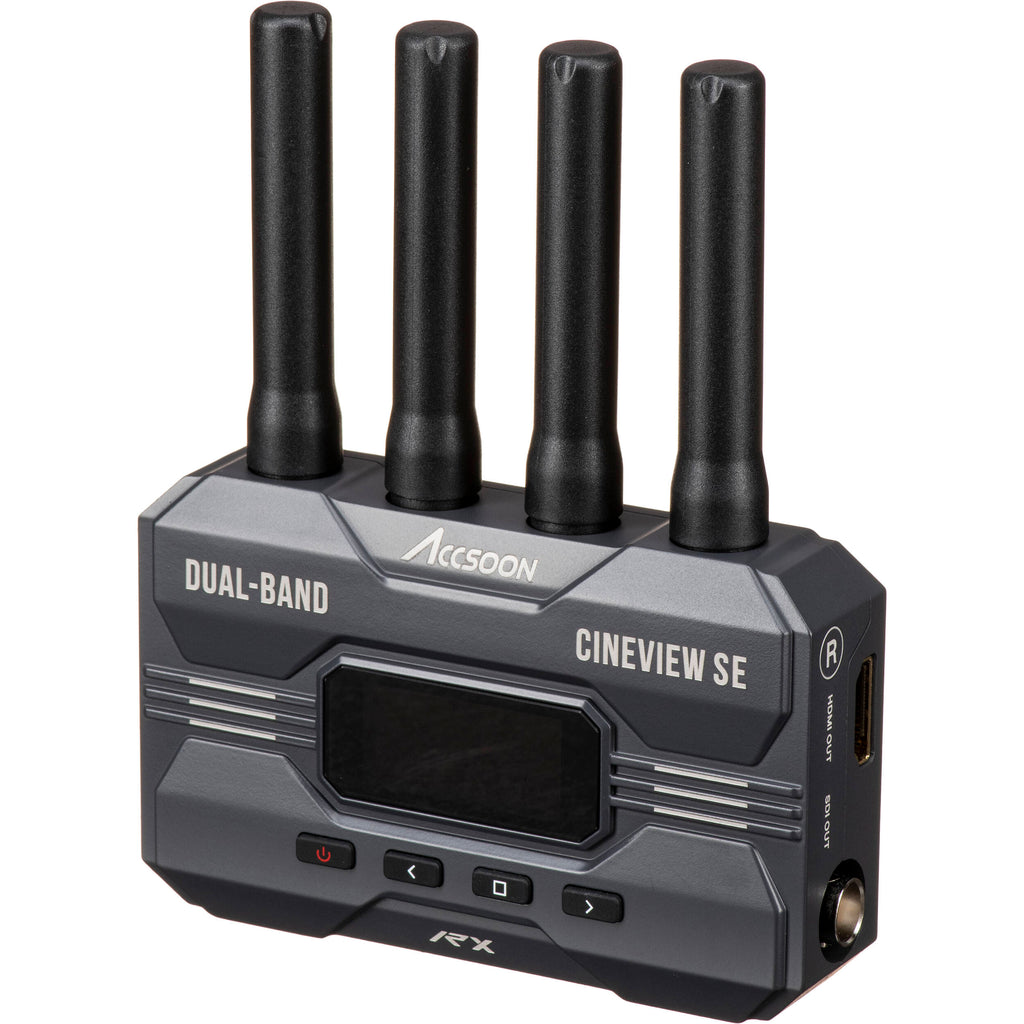

Add an extra receiver to your CineView Quad transmission system with this CineView SE Extra Receiver from Accsoon. The receiver can be added to an existing system since transmitter can simultaneously send a 1080p60 video signal to any mix of receivers and iOS/Android smartphones and tablets up to four total. You can send video signals over distances up to 1200' with only a 50ms delay.
Quad technology allows you to transmit exact copies of your transmission over 2.4 and 5 GHz signals for redundant, high-quality images. The receiver is easy to set up and pair, and it features an HDMI and SDI output. The free-to-download companion app installs on a tablet or smartphone and it features image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay, and new features include Smart Sharpening and Onion Skin overlay. The receiver features a DC power input, USB-C power input, and it also supports an optional L-series battery that can power the unit for up to 12 hours.
Twin dual-band wireless technology transmits the same image on both 2.4 and 5 GHz frequencies at the same time
Latency of less than 50ms
Long-distance transmission range of 1200'
One transmitter can simultaneously connect up to four devices such as receivers, smartphones, or tablets
Wireless remote monitoring via Accsoon Go App
Smart Sharpening tool for more accurate focusing
Onion Skin Overlay tool for precise repetition of shots and improved LUT loading and recording
Ability to multitask with the Go App on Split View when using a suitable iPad
High-end features like focus peaking, histogram, and false color
The system transmits two identical copies of your camera's video output on both 2.4 and 5 GHz frequencies at the same time. When these signals arrive at the receiver unit, they are instantly combined as needed to create the final high-quality video feed

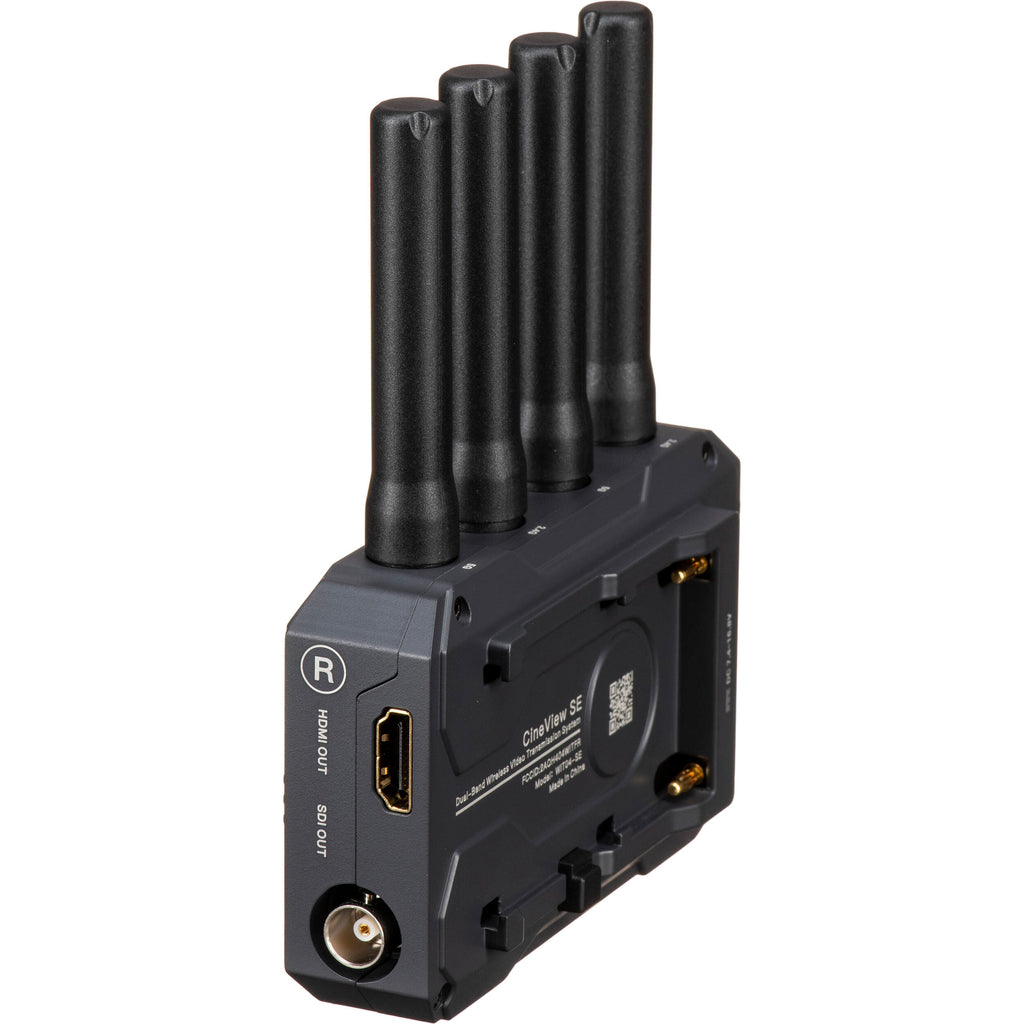

HDMI and SDI outputs on the receiver
Receive up to Full HD 1080p60 video
The CineView SE system is even smaller and lighter than ever, with the receiver weighing in at just 7.4 oz
Fanless design for silent operation

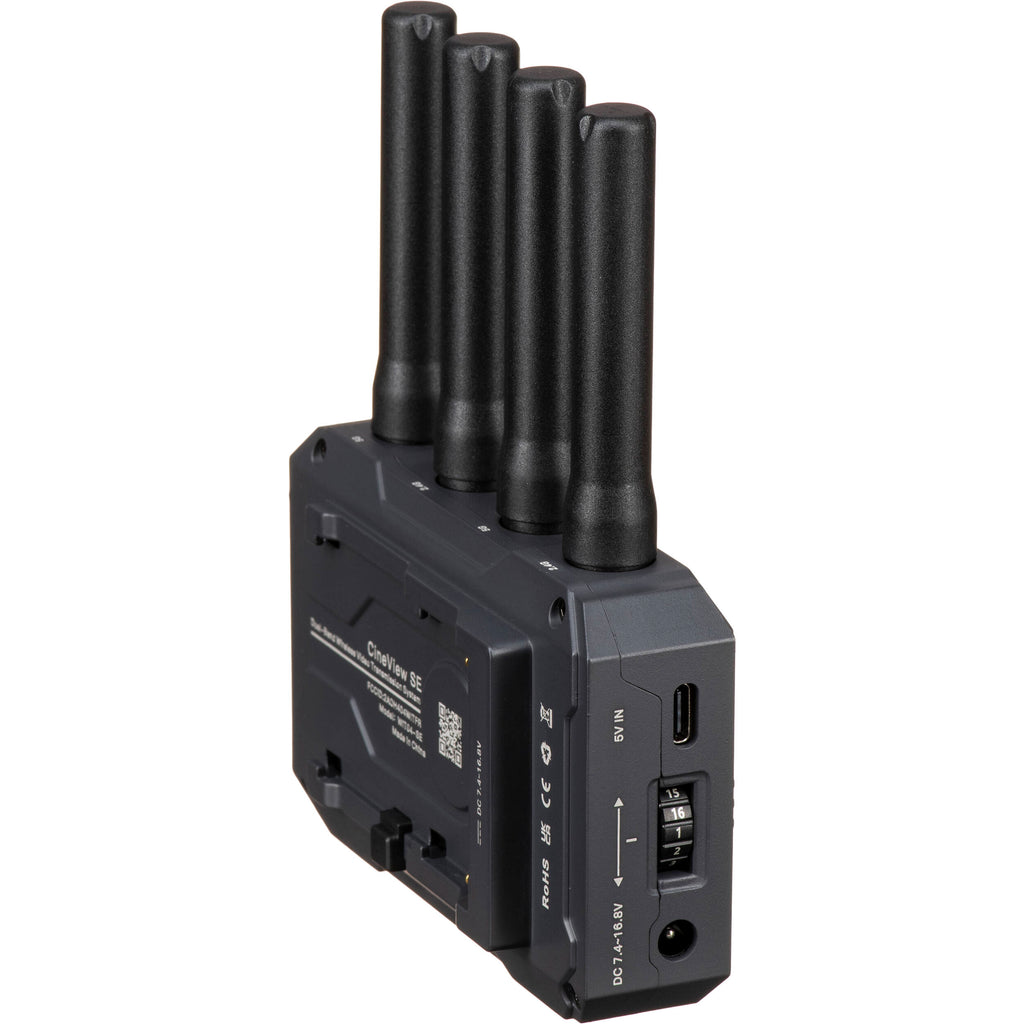

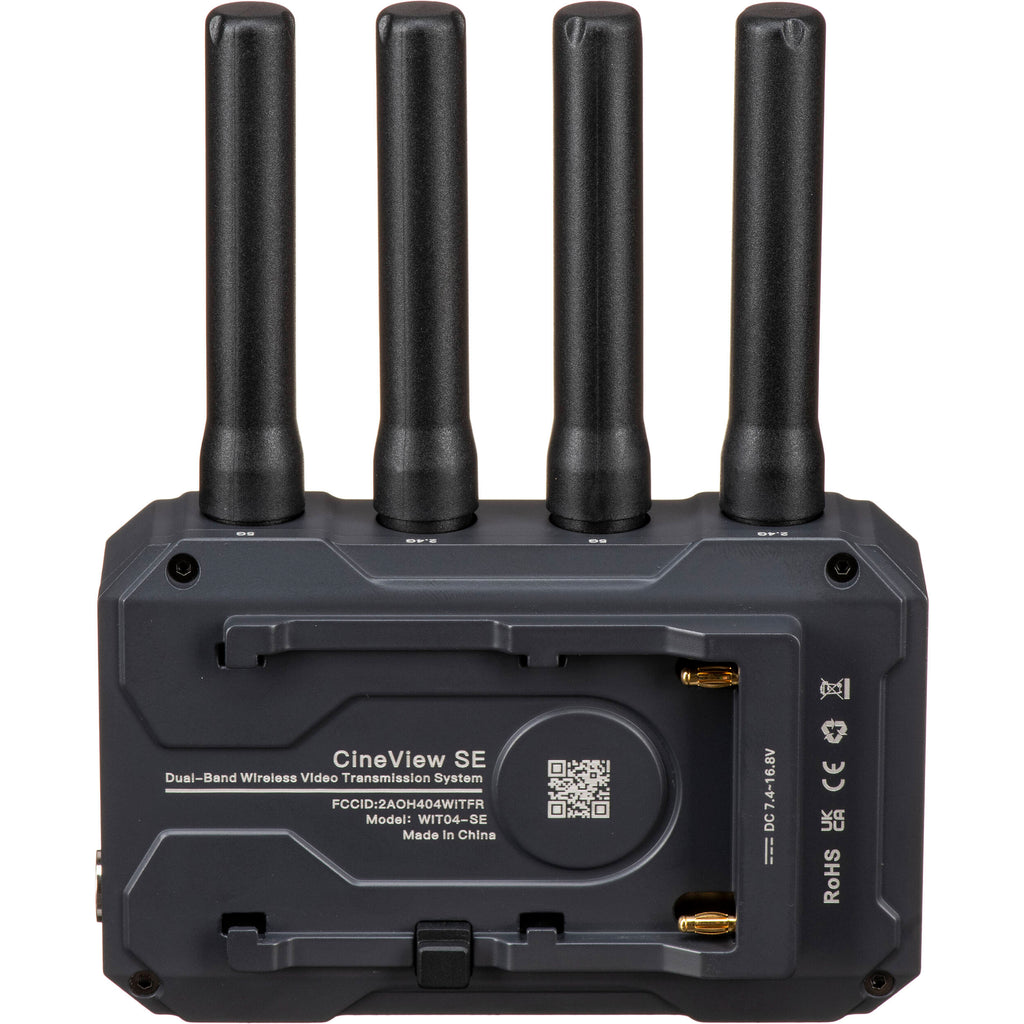

Powered by L-series/NP-F type battery, USB-C input, or DC input
Durable aluminum construction
In the Box
- Accsoon CineView SE Extra Receiver
- Shoe Mount
Table of Contents
- Description
- Wireless Transmission
- Apps
- Twin Image Transmission
- Video Input/Output
- Design
Accsoon CineView SE Specs
Inputs / Outputs
| Antenna I/O |
4 x RP-SMA Female |
| Video I/O |
1 x HDMI Output
1 x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI/SDI |
| Audio I/O |
None |
| Power I/O |
1 x Barrel (16.8 VDC) Input
1 x USB-C (5 VDC) Input |
Wireless
| Wireless Range |
1200' / 365.8 m |
| # of Channels |
20 |
| Frequency Range |
2412 to 2472 MHz
5180 to 5580 MHz
5660 to 5825 MHz |
| Latency |
< 50 ms |
| RF Power |
17 dBm |
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth |
None |
Format Support
| Video Format |
HDMI/SDI/Wireless
1080p: 60/59.94/50/30/29.97/25/24/23.98 |
| Audio Format |
2-Channel 24-Bit 48 kHz PCM Audio |
| Timecode Support |
No |
Power
| DC Input Power |
7.4 to 16.8 VDC |
| Battery Type |
1 x L-Series |
Mounting

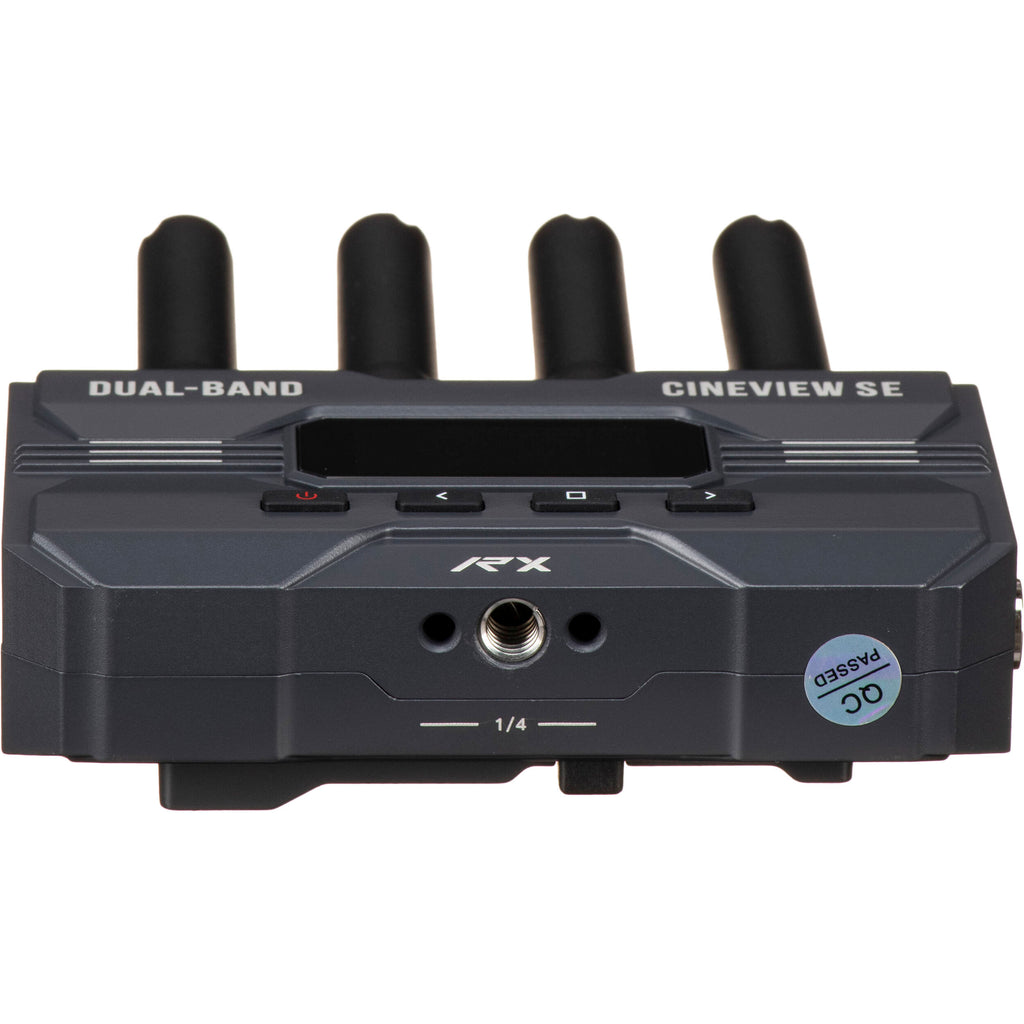

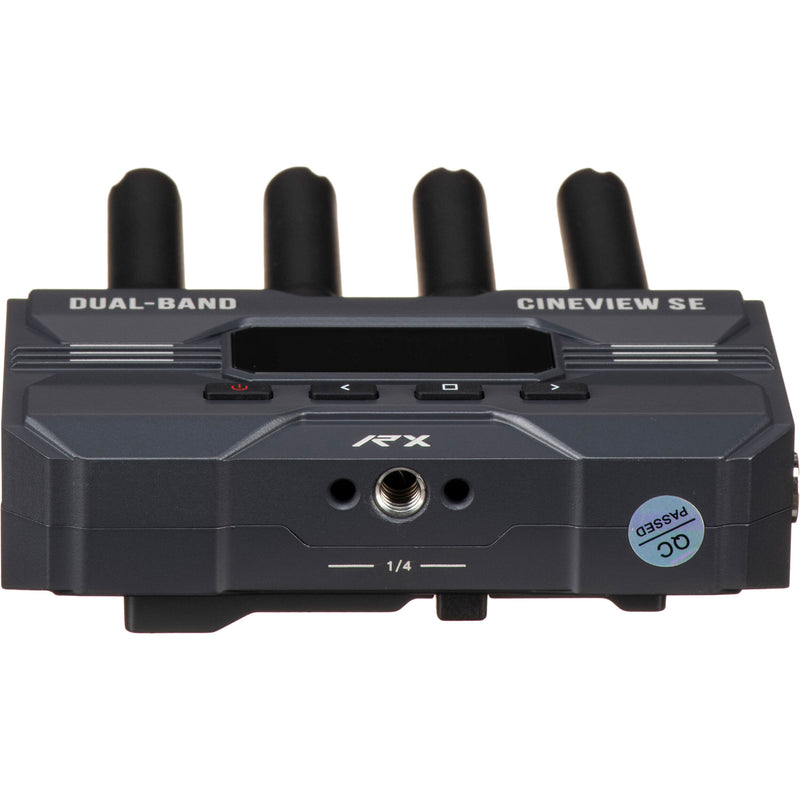

| Mounting |
1 x 1/4"-20 Female |
Environmental
| IP Rating |
None |
| Operating Temperature |
14 to 104°F / -10 to 40°C |
General
| Material of Construction |
Aluminum |
| Dimensions |
4.1 x 2.6 x 1.3" / 10.5 x 6.6 x 3.2 cm |
| Weight |
7.4 oz / 210 g |
Packaging Info
| Package Weight |
0.925 lb |
| Box Dimensions (LxWxH) |
6.2 x 3.9 x 2.5" |
