Description

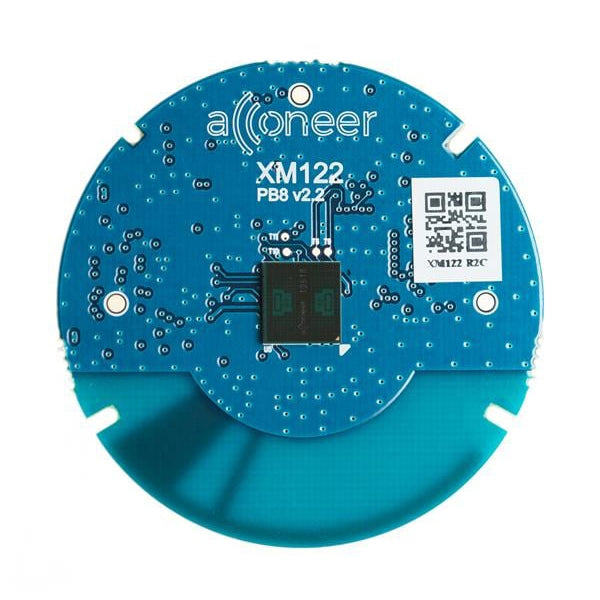

The XM122 is built around the Nordic Semiconductor nRF52840 Bluetooth® 5 SoC (System on Chip).
Features & Specs
- The A111 60GHz Pulsed Coherent radar (PCR) with integrated baseband, RF front-end, and Antenna in Package (AiP)
- Low power connected radar module
- The nRF52840 protocol stack support for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT, and 2.4GHz proprietary stacks and is built around the 64MHz Arm® Cortex™-M4 CPU with 256KB SRAM and 1MB Flash
- Integrated 2.4GHz antenna with support for external 2.4GHz antenna
- Optional NFC antenna support for quick Bluetooth pairing via the PCB test points
- Optimized circular form factor with a diameter of 33mm
- Wide single supply operating voltage range 2.0V to 5.5V
- Operating temperature -40° to 85°C
- External I/F support - SPI, UART, I2C, GPIO, Reset
- SWD/JTAG for SW flash and debug
Features & Specs
- The A111 60GHz Pulsed Coherent radar (PCR) with integrated baseband, RF front-end, and Antenna in Package (AiP)
- Low power connected radar module
- The nRF52840 protocol stack support for Bluetooth 5, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT, and 2.4GHz proprietary stacks and is built around the 64MHz Arm® Cortex™-M4 CPU with 256KB SRAM and 1MB Flash
- Integrated 2.4GHz antenna with support for external 2.4GHz antenna
- Optional NFC antenna support for quick Bluetooth pairing via the PCB test points
- Optimized circular form factor with a diameter of 33mm
- Wide single supply operating voltage range 2.0V to 5.5V
- Operating temperature -40° to 85°C
- External I/F support - SPI, UART, I2C, GPIO, Reset
- SWD/JTAG for SW flash and debug
Documentation
WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. See link below for more information. www.P65Warnings.ca.gov
Bulk Discount
| Quantity | Price |
| 2 | ₹ 6345.5 |
| 3-5 | ₹ 6280.75 |
| 5-10 | ₹ 6151.25 |
| 10+ | ₹ 6021.75 |
Bulk discount will be automatically applied during checkout based on quantity.
