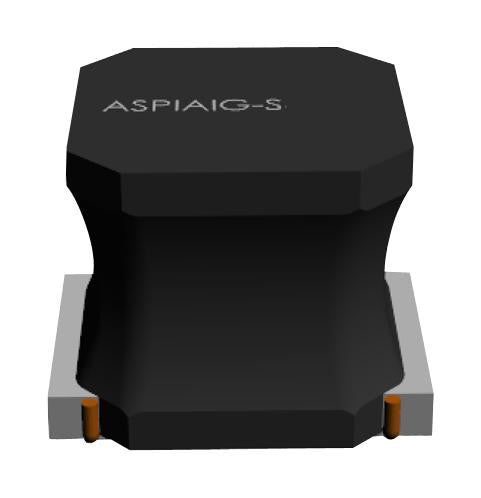

This is a Surface Mount Power Inductor, AEC-Q200, ASPIAIG-S8050 Series, 10 µH, 3.6 A, 5.2 A, Shielded product from ABRACON with the model number ASPIAIG-S8050-100M-T
Product details
| Product Range |
ASPIAIG-S8050 Series |
| Inductance |
10µH |
| RMS Current (Irms) |
3.6A |
| Saturation Current (Isat) |
5.2A |
| Inductor Construction |
Shielded |
| DC Resistance Max |
0.038ohm |
| Power Inductor Case |
8mm x 8mm x 5mm |
| Inductance Tolerance |
± 20% |
| Packaging |
Cut Tape |
Other details
| Brand |
ABRACON |
| Part Number |
ASPIAIG-S8050-100M-T |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
