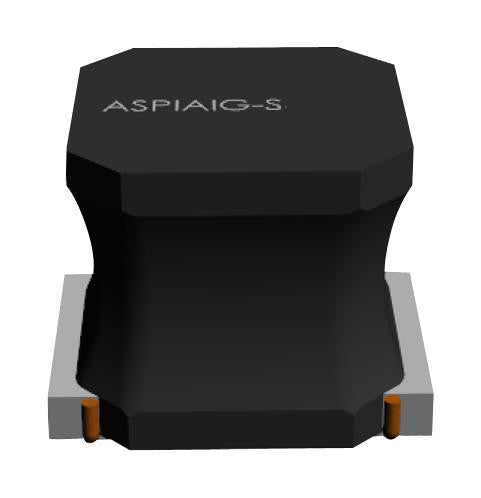

This is a Surface Mount Power Inductor, AEC-Q200, ASPIAIG-S6055 Series, 100 µH, 1.1 A, 1.1 A, Shielded product from ABRACON with the model number ASPIAIG-S6055-101M-T
Product details
| Product Range |
ASPIAIG-S6055 Series |
| Inductance |
100µH |
| RMS Current (Irms) |
1.1A |
| Saturation Current (Isat) |
1.1A |
| Inductor Construction |
Shielded |
| DC Resistance Max |
0.434ohm |
| Power Inductor Case |
6mm x 6mm x 5.5mm |
| Inductance Tolerance |
± 20% |
| Packaging |
Cut Tape |
Other details
| Brand |
ABRACON |
| Part Number |
ASPIAIG-S6055-101M-T |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
