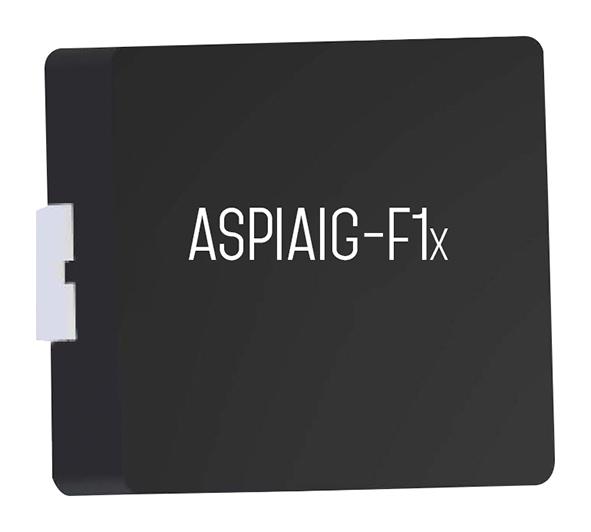

This is a Power Inductor (SMD), 1.5 µH, 16 A, Shielded, 33 A, ASPIAIG-F1x Series, 11mm x 10mm x 3.8mm product from ABRACON with the model number ASPIAIG-F1040-1R5M-T
Product details
| Inductance |
1.5µH |
| RMS Current (Irms) |
16A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
33A |
| Product Range |
ASPIAIG-F1x Series |
| Power Inductor Case |
11mm x 10mm x 3.8mm |
| DC Resistance Max |
0.0046ohm |
| Inductance Tolerance |
± 20% |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
ABRACON |
| Part Number |
ASPIAIG-F1040-1R5M-T |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
