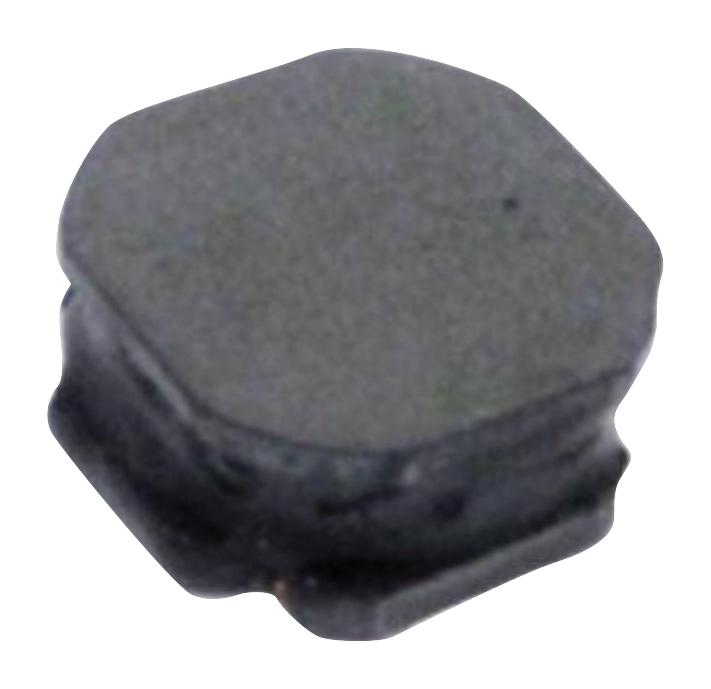

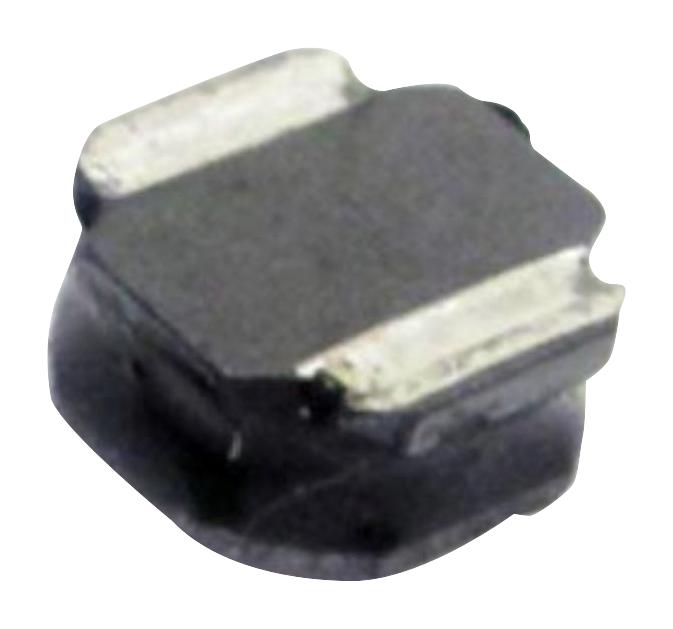

This is a ASPI-0840-680M-T Power Inductor (SMD) , 68 µH, 1.3 A, Shielded, 1.3 A, ASPI-0840 Series, 8mm x 8mm x 4mm New product from ABRACON with the model number ASPI-0840-680M-T
Product details
| Inductance |
68µH |
| RMS Current (Irms) |
1.3A |
| Inductor Construction |
Shielded |
| Saturation Current (Isat) |
1.3A |
| Product Range |
ASPI-0840 Series |
| Power Inductor Case |
8mm x 8mm x 4mm |
| DC Resistance Max |
0.2ohm |
| Inductance Tolerance |
± 20% |
Other details
| Brand |
ABRACON |
| Part Number |
ASPI-0840-680M-T |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
