| ₹ 389.21 includes GST and import duties. | |
| B2B customers can avail ₹ 59.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

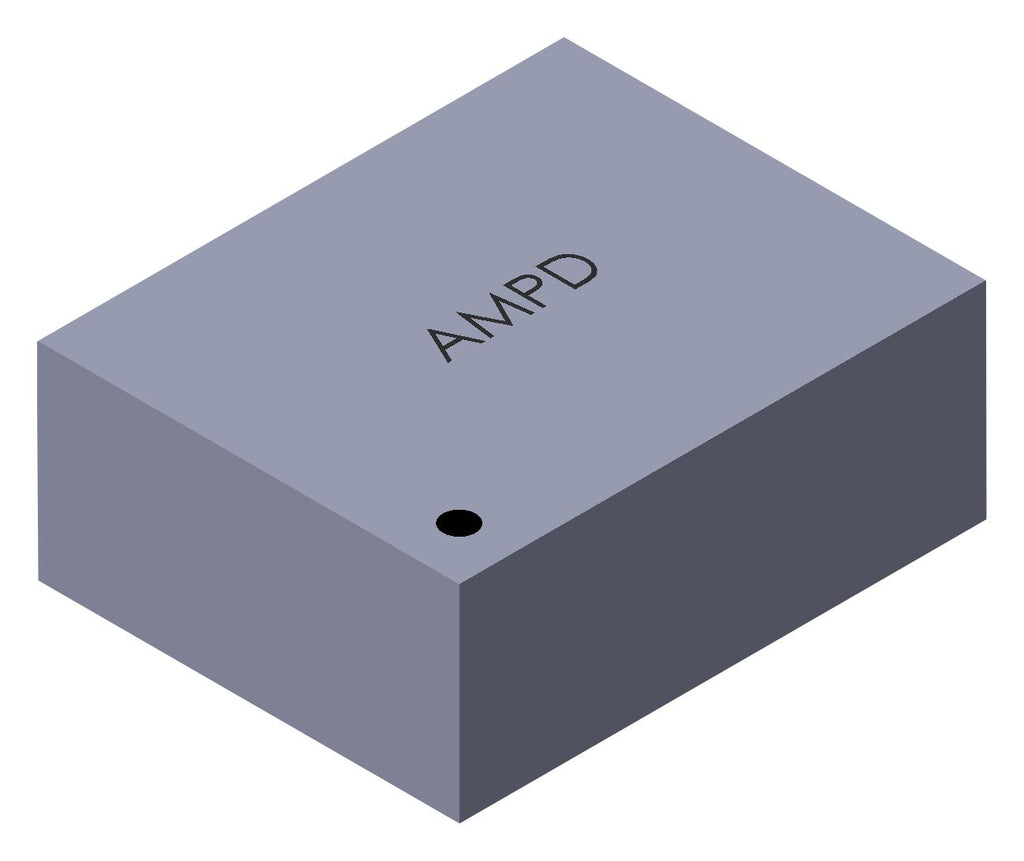

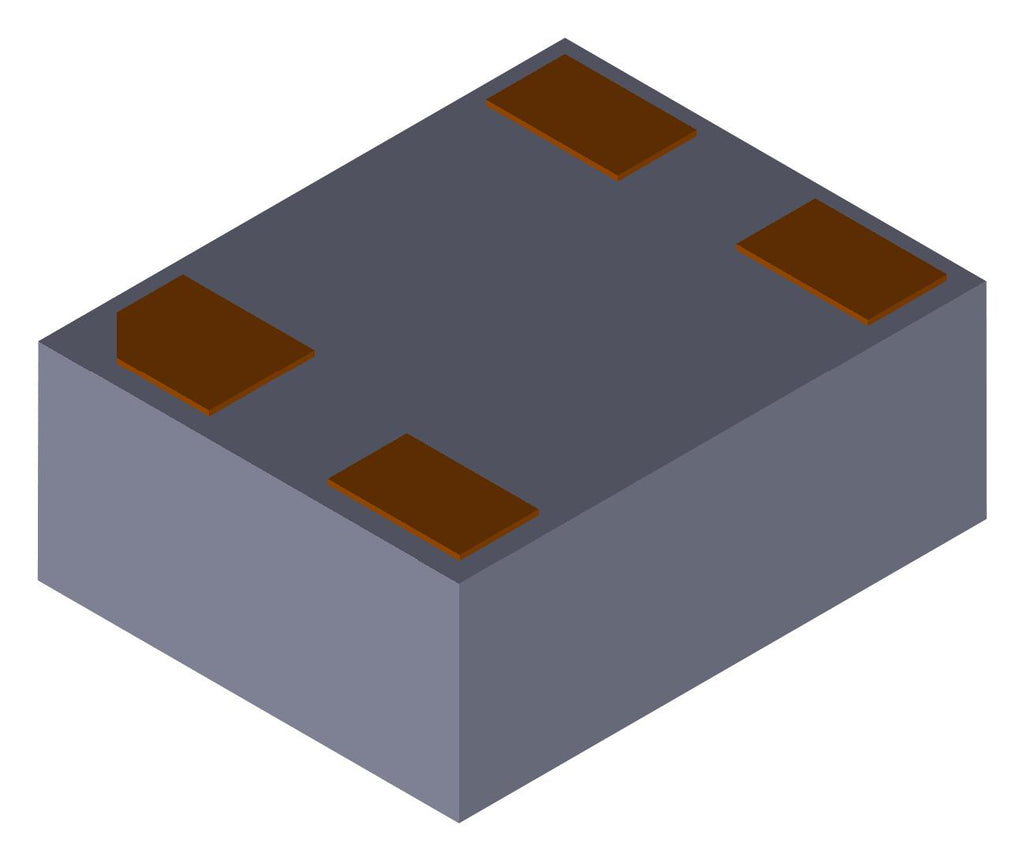

This is a MEMS Configurable Oscillator, 74.1758 MHz to 74.25 MHz, SMD, 2mm x 1.6mm, 25 ppm, AMJD Series product from ABRACON with the model number AMPDAFH-A04T
Product details
| Configurable Frequency Min | 74.1758MHz |
| Configurable Frequency Max | 74.25MHz |
| Frequency Stability + / - | 25ppm |
| Oscillator Case | SMD, 2mm x 1.6mm |
| Product Range | AMPD Series |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Oscillator Output Compatibility | - |
| Supply Voltage Min | 1.71V |
| No. of Configurable Pins | 1 |
Other details
| Brand | ABRACON |
| Part Number | AMPDAFH-A04T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 381.43 |
| 3-5 | ₹ 377.53 |
| 5-10 | ₹ 369.75 |
| 10+ | ₹ 361.97 |
Bulk discount will be automatically applied during checkout based on quantity.
