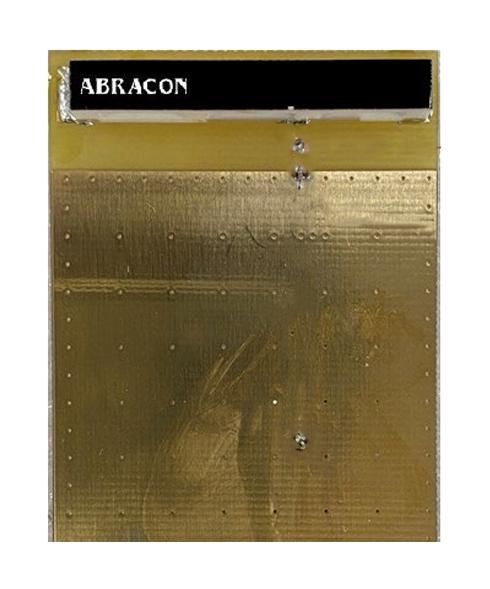

ACR4006X-EVB Evaluation boards are designed to provide a means to facilitate engineering evaluation of the ACR4006X chip antenna. With a typical operating frequency range of 600~960 MHz / 1710~2690 MHz / 3300~6000 MHz, the chip can be used for 5G NR/4G/LTE applications. To evaluate the performance of antenna, calibrate the Vector Network analyser (VNA) for the testing frequency band and connect the evaluation board to the calibrated port using the given SMA connector on the board.
Other details
| Brand |
ABRACON |
| Part Number |
ACR4006X-EVB |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
