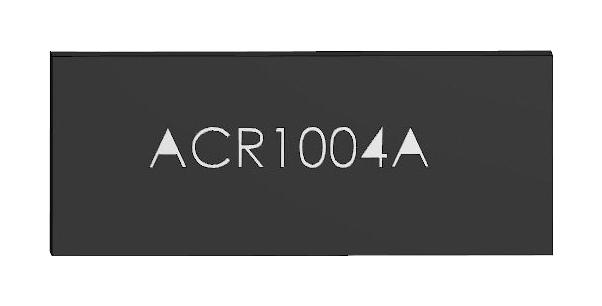

ACR1004A-EVB evaluation board is designed to provide a means to facilitate engineering evaluation of the chip antenna: ACR1004A. With a typical operating frequency range of 2400~2500/ 5150~7125 MHZ, the chip can be used for Wi-Fi 6E applications. To evaluate the performance of antenna, calibrate the Vector Network analyser (VNA) for the testing frequency band and connect the evaluation board to the calibrated port using the given SMA connector on the board.
Other details
| Brand |
ABRACON |
| Part Number |
ACR1004A-EVB |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
