Description

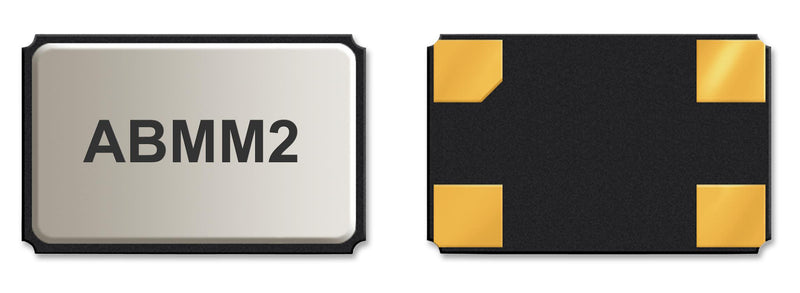

The ABMM2-16.000MHZ-E2-T is a 6 x 3.6 x 1.2mm 20ppm ceramic surface-mount low profile Quartz Crystal features seam sealed ceramic assures high reliability and tight tolerance and stability. The ABMM2 series crystal for use with the computers, modems, microprocessors, test equipments and PCMCIA applications. It is suitable for reflow profile.
- Fundamental operation mode
- 50R Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 500µW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
Clock & Timing, Computers & Computer Peripherals, Communications & Networking, Test & Measurement
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | ABRACON |
| Part Number | ABMM2-16.000MHZ-E2-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
