Description

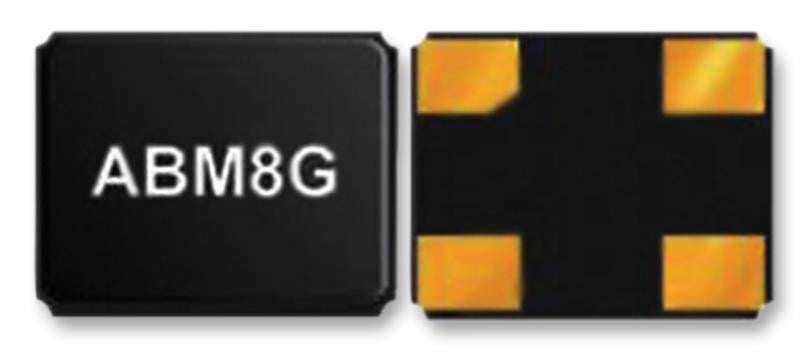

The ABM8G-16.000MHZ-B4Y-T is a 3.2 x 2.5 x 1mm 30ppm ultra miniature ceramic surface-mount Crystal features glass sealed assures high reliability and high temperature operation, tight tolerance and stability. The ABM8G series crystal for use with the modems, communication, test and thin equipment, PMCIA, wireless and high density applications. It is IR reflow capable.
- Fundamental operation mode
- 80R Maximum equivalent series resistance
- 5pF Maximum shunt capacitance
- 100µW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
Applications
Clock & Timing, Communications & Networking, Test & Measurement, Wireless
Product details
| Load Capacitance | 10pF |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Product Range | ABM8G Series |
| Frequency Stability + / - | 30ppm |
| Frequency Tolerance + / - | 30ppm |
| Frequency Nom | 16MHz |
Other details
| Brand | ABRACON |
| Part Number | ABM8G-16.000MHZ-B4Y-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
