| ₹ 64.54 includes GST and import duties. | |
| B2B customers can avail ₹ 9.84 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

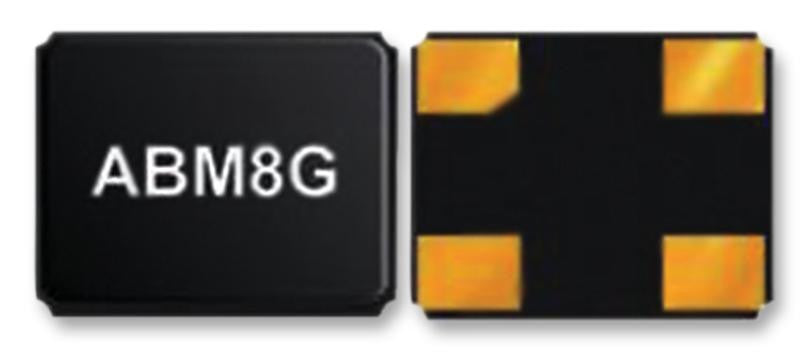

The ABM8G-12.000MHZ-18-D2Y-T is a 3.2 x 2.5 x 1.0mm Ultra Miniature Ceramic Glass Sealed SMD Crystal. Low in height, suitable for thin equipment.
- Glass Sealed Package Assures High Reliability and High Temperature Operation
- Tight Tolerance and Stability
- IR Reflow Capable
- Ageing ±3ppm Per Year Max
- 500MR Insulation Resistance
Applications
Communications & Networking, Industrial, Wireless, Test & Measurement
Product details
| Load Capacitance | 18pF |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Product Range | ABM8G Series |
| Frequency Stability + / - | 30ppm |
| Frequency Tolerance + / - | 20ppm |
| Frequency Nom | 12MHz |
Other details
| Brand | ABRACON |
| Part Number | ABM8G-12.000MHZ-18-D2Y-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 63.25 |
| 3-5 | ₹ 62.6 |
| 5-10 | ₹ 61.31 |
| 10+ | ₹ 60.02 |
Bulk discount will be automatically applied during checkout based on quantity.
