Description

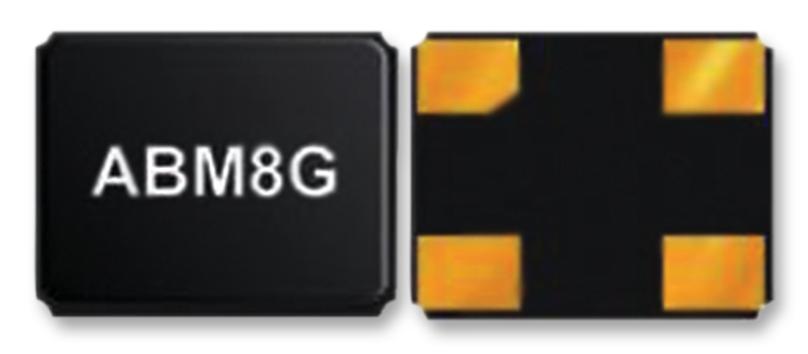

This is a Crystal, 12 MHz, SMD, 3.2mm x 2.5mm, 30 ppm, 10 pF, 20 ppm product from ABRACON with the model number ABM8G-106-12.000MHZ-T
Product details
| Frequency Nom | 12MHz |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Frequency Stability + / - | 30ppm |
| Load Capacitance | 10pF |
| Frequency Tolerance + / - | 20ppm |
| Product Range | - |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| RoHS Phthalates Compliant | To Be Advised |
Other details
| Brand | ABRACON |
| Part Number | ABM8G-106-12.000MHZ-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
