Description

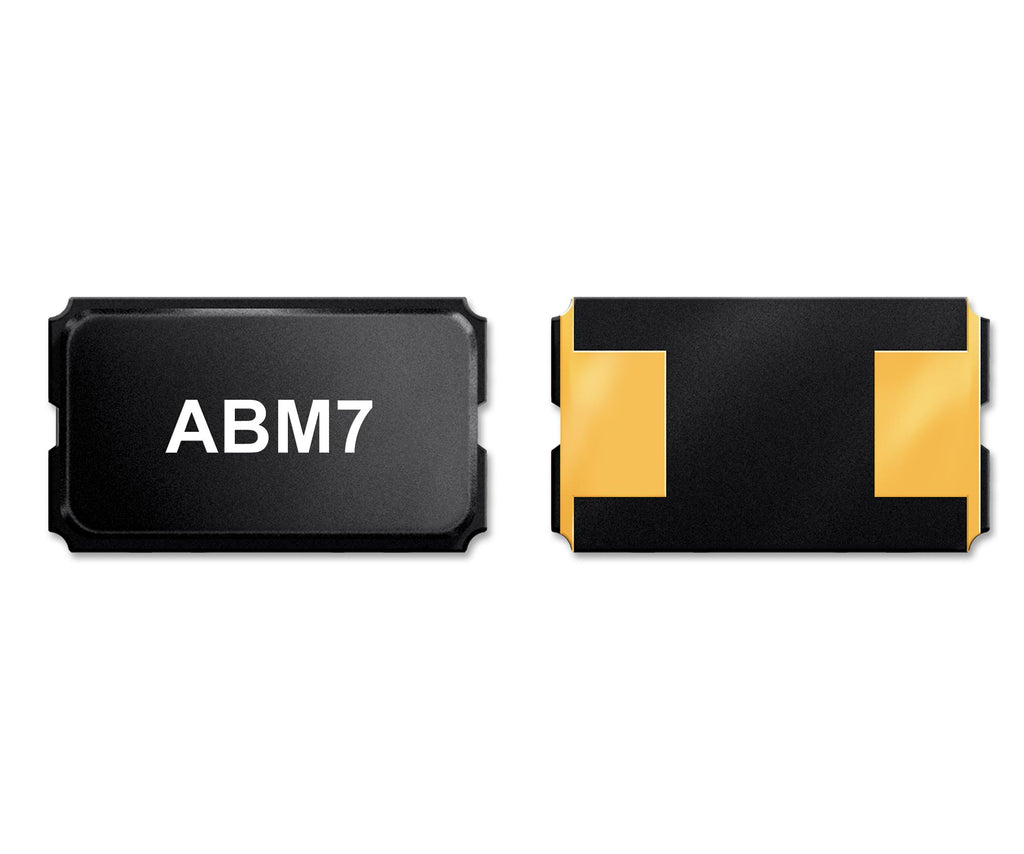

The ABM7-24.000MHZ-D2Y-T is a 6 x 3.5 x 1.4mm 20 and 30ppm surface-mount micro miniature microprocessor Crystal features superior heat-resistant glass seal and ceramic assures high reliability. The ABM7 series crystal for use with the computers, modems, communication and thin equipment and also for industrial wide temperature applications, small size surface-mount suitable for high density applications.
- Fundamental operation mode
- 50R Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 100µW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
Clock & Timing, Computers & Computer Peripherals, Communications & Networking, Industrial
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.Other details
| Brand | ABRACON |
| Part Number | ABM7-24.000MHZ-D2Y-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| REACH SVHC: Safe Use Data EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
