Description

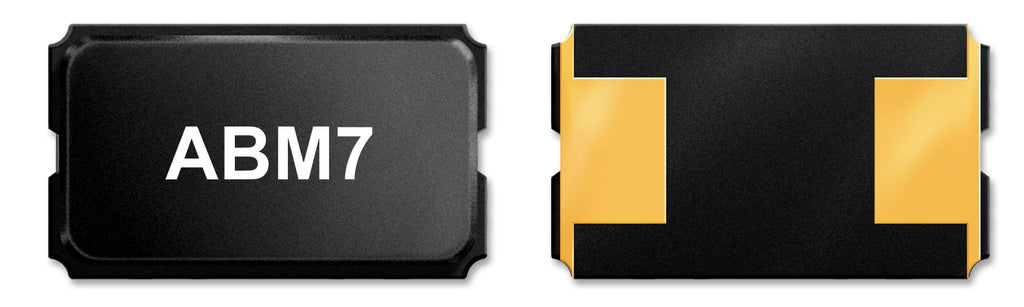

The ABM7-16.000MHZ-D2Y-T is a 6 x 3.5 x 1.4mm 20 and 30ppm surface-mount micro miniature microprocessor Crystal features superior heat-resistant glass seal and ceramic assures high reliability. The ABM7 series crystal for use with the computers, modems, communication and thin equipment and also for industrial wide temperature applications, small size surface-mount suitable for high density applications.
- Fundamental operation mode
- 50R Maximum equivalent series resistance
- 7pF Maximum shunt capacitance
- 100µW Maximum drive level
- 500MR at 100VDC Minimum insulation resistance
Applications
Clock & Timing, Computers & Computer Peripherals, Communications & Networking, Industrial
Product details
| Load Capacitance | 18pF |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Crystal Case | SMD, 6mm x 3.5mm |
| Product Range | ABM7 Series |
| Frequency Stability + / - | 30ppm |
| Frequency Tolerance + / - | 20ppm |
| Frequency Nom | 16MHz |
Other details
| Brand | ABRACON |
| Part Number | ABM7-16.000MHZ-D2Y-T |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
