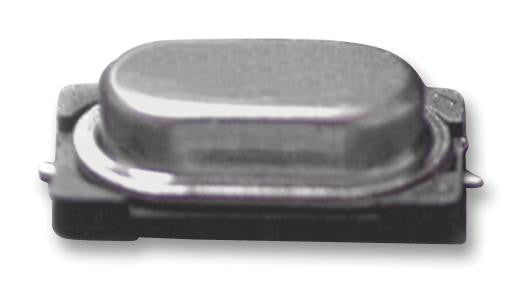

This is a Crystal, 26 MHz, SMD, 7mm x 4.1mm, 30 ppm, 18 pF, 20 ppm, ABLS7M2 Series product from ABRACON with the model number ABLS7M2-26.000MHZ-D-2Y-T
Product details
| Frequency Nom |
26MHz |
| Crystal Case |
SMD, 7mm x 4.1mm |
| Frequency Stability + / - |
30ppm |
| Load Capacitance |
18pF |
| Frequency Tolerance + / - |
20ppm |
| Product Range |
ABLS7M2 Series |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
Other details
| Brand |
ABRACON |
| Part Number |
ABLS7M2-26.000MHZ-D-2Y-T |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
