Description

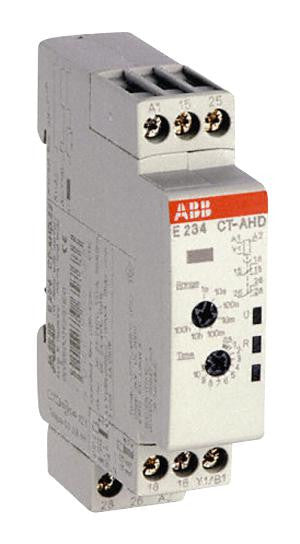

The CT-D series Electronic Timer with MDRC design. The CT-D range represents a link between industry and the installation types in 17.5mm wide MDRC housing. For maximum flexibility in operation, 10 single-function as well as 2 multifunction devices with 7 timing functions are available. The devices offer 4 or 7 time ranges from 0.05 seconds up to 100 hours. Their wide supply voltage range allows the use in applications worldwide.
- Space saving
- Time saving because easy to adjust
- Easy to select because of a wide variety of products
- World wide approvals
- Wide supply voltage range
Applications
Industrial, Power Management, Clock & Timing
Product details
| Supply Voltage Max | 240VAC |
| No. of Timing Ranges | 7Ranges |
| Timer Functions | Off-Delay |
| Timer Output | 1 Changeover Relay |
| Current Rating Nom | 6A |
| Time Min | 0.05s |
| Product Range | CT-D Series |
| Connection / Termination | Screw Terminals |
| Time Max | 100h |
Other details
| Brand | ABB |
| Part Number | CT-AHD.12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
