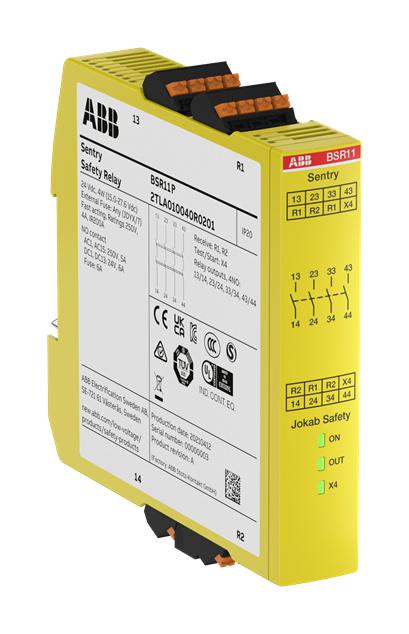

2TLA010040R0201 is a sentry BSR11P safety relay and expansion relay with relay outputs 4NO, +24VDC supply voltage, and push-in spring terminals. For monitoring of safety devices, such as emergency stops, directly in the voltage supply circuit of the relay. Also suitable as an expansion relay for a safety relay/safety PLC, in order to increase the number of safe outputs. Sentry safety relay covers various types of safety applications up to PLe / SIL3. A high output current capacity of up to 6A and can save the use of an intermediary contactor.
- Expansion relay - no monitoring of two channel fault function
- Start/test input sub-function, no time delay timer relay type
- 24VDC rated control supply voltage (Us), IP20 degree of protection
- 6.5mm wire stripping length
- 22.5mm product net width, 120mm product net height, 120mm product net depth / length
- IS0 13849 standard
- Operating ambient air temperature range from -25 to +65°C
Product details
| Coil Voltage:
24VDC
|
| Contact Configuration:
4PST-NO
|
| Product Range:
Sentry BSR11P Series
|
| Relay Mounting:
DIN Rail
|
| Contact Current:
5A
|
| Relay Terminals:
Push In
|
| Contact Voltage AC Nom:
250V
|
| Contact Voltage DC Nom:
-
|
| Contact Material:
-
|
| IP Rating:
IP20, IP54
|
Other details
| Brand |
ABB |
| Part Number |
2TLA010040R0201 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
