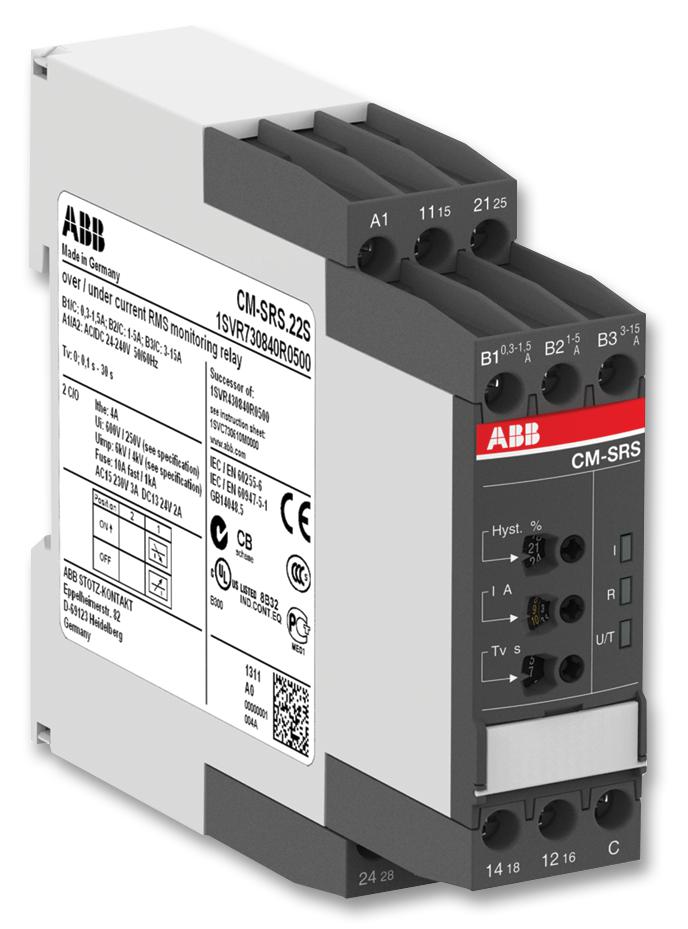

ABB 1SVR730840R0400 1SVR730840R0400 Current Monitoring Relay CM-SRS.2 Dpdt 4 A DIN Rail 250 VAC Screw

The CM-SRS.2 series Current Monitoring Relay can be used for overcurrent or undercurrent monitoring in 1-phase AC and DC systems. This device features monitoring of true RMS values. The current to be monitored (measured value) is applied to terminals B1/B2/B3-C. If the measured value exceeds or drops below the selected trip point value, the output relay energize on the CM-SRS.2 after the trip delay TV. The relay de-energizes when the current returns to an acceptable level. The adjustable hysteresis prevents rapid cycling. The hysteresis is adjustable 3 to 30% of the threshold value.

• Monitoring of DC and AC currents
• RMS measuring
• Selectable over or undercurrent monitoring
• 3 to 30% Adjustable hysteresis
• 0.1 to 30sec Adjustable trip delay
• 3 LEDs for status indication

Applications

Industrial

Other details

Brand	ABB
Part Number	1SVR730840R0400
Quantity	Each
Technical Data Sheet EN
