Description

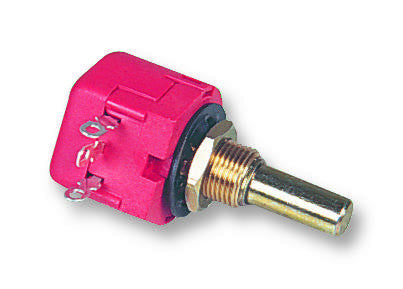

The ABW1 series from AB Electronik are spindle style wirewound rotary potentiometers with encased solder tag terminals.
- Resistance range of 5ohm to 22kohm
- �10%, �20% tolerance
- Rated power dissipation at 40�Cis 1W
- Limiting element voltage of 300V
- Operating temperature range -40�C to +90�C
- Endurance of 10000 cycles
Applications
Consumer Electronics, Portable Devices, Power Management, Industrial
Product details
| Shaft Length | 25.4mm |
| Shaft Diameter | 6.35mm |
| No. of Gangs | 1 |
| Adjustment Type | Rotary |
| Resistance Tolerance | � 10% |
| Product Range | ABW1 Series |
| Track Taper | Linear |
| No. of Turns | 1Turns |
| Potentiometer Mounting | Panel |
| Power Rating | 1W |
| Track Resistance | 100ohm |
Other details
| Brand | AB ELEKTRONIK |
| Part Number | ABW1 100R |
| Quantity | Each |
| Technical Data Sheet EN |  |
