Description
A-Neuvideo HDB70X Overview

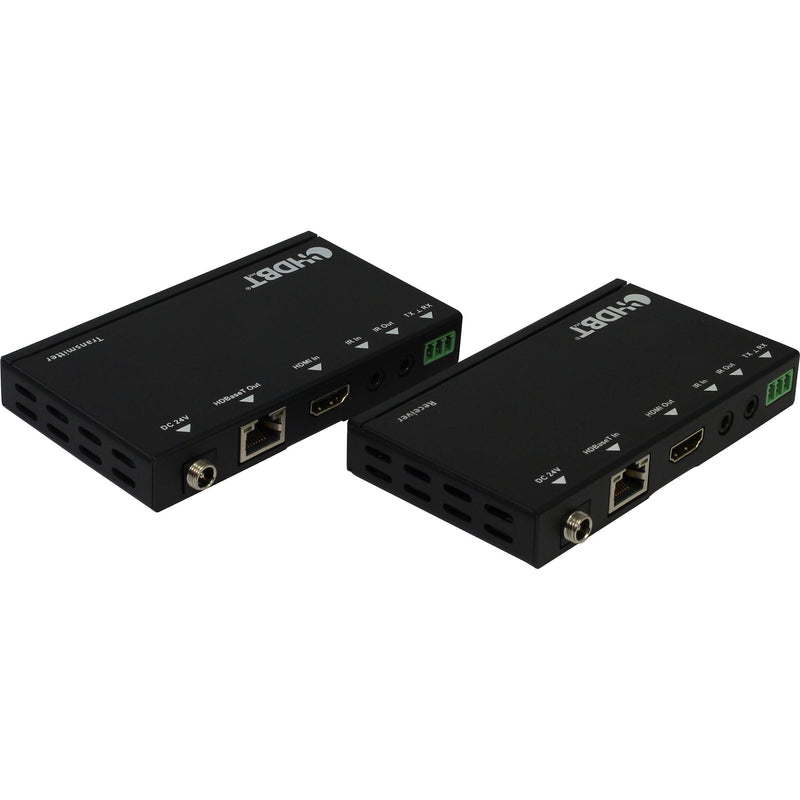

The UHD 4K30 HDMI over Cat 6/5e Extender Set from A-Neuvideo is a single HDMI signal transmitter/receiver set with bidirectional RS-232 and IR control. It transmits a UHD 4K30 signal with embedded audio 131' over HDBaseT output via a Cat 6 cable, sold separately. Full HD 1080p60 36-bit can be sent 230', and 1080p60 48-bit and 1080p120 24-bit up to 131'. A single power supply is included and can be used on either the transmitter or receiver side while both units are powered via PoC.
Key Features
Power-over-Cable (PoC): Only one side needs to be plugged into a power outlet (less than 10W PoC power consumption)
HDMI input, HDBaseT output, and bidirectional RS-232 and IR
131' UHD 4K30 and 1080p120 transmission; up to 230' 1080p60
UPC: 859777007596
In the Box
- A-Neuvideo UHD 4K30 HDMI over Cat 6/5e Extender Set
- Transmitter
- Receiver
- Wideband IR Transmitter
- Wideband IR Receiver
- 24 VDC, 1A Power Supply
- 4 x Mounting Ear
- Limited 3-Year Warranty
A-Neuvideo HDB70X Specs
Transmitter Interfaces
| Input Connectors | 1 x HDMI |
| Embedded Audio Input | HDMI |
| Output Connectors | 1 x RJ45 (HDBaseT) |
| Transmitter Other I/O | 1 x 3.5 mm IR Input 1 x 3.5 mm IR Output 1 x 3-Pin Euroblock RS-232 |
Receiver Interfaces
| Input Connectors | 1 x RJ45 (HDBaseT) |
| Output Connectors | 1 x HDMI |
| Embedded Audio Output | HDMI |
| Receiver Other I/O | 1 x 3.5 mm IR Input 1 x 3.5 mm IR Output 1 x 3-Pin Euroblock RS-232 |
Transmission
| Max Transmission Distance |
UHD 4K at 30 Hz: 131' / 39.9 m 1080p at 60 Hz: 230' / 70.1 m (via Cat 6) |
| Video Format | HDMI UHD 4K: 30 fps 1080p: 30/60/120 fps |
| Supported Cable Types | Cat 5e/6 |
Power
| Transmitter Power Connector | 1 x Barrel (24 VDC at 1 A) Input |
| Receiver Power Connector | 1 x Barrel (24 VDC at 1 A) Input |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% |
General
| Transmitter Dimensions | 4.5 x 2.6 x 0.7" / 115 x 65 x 17 mm |
| Receiver Dimensions | 4.5 x 2.6 x 0.7" / 115 x 65 x 17 mm |
| Transmitter Weight | 3.5 oz / 100 g |
| Receiver Weight | 3.5 oz / 100 g |
Packaging Info
| Package Weight | 1.795 lb |
| Box Dimensions (LxWxH) | 8.6 x 6.4 x 2.9" |
