Description
A-Neuvideo ANI-8-4K60 Overview

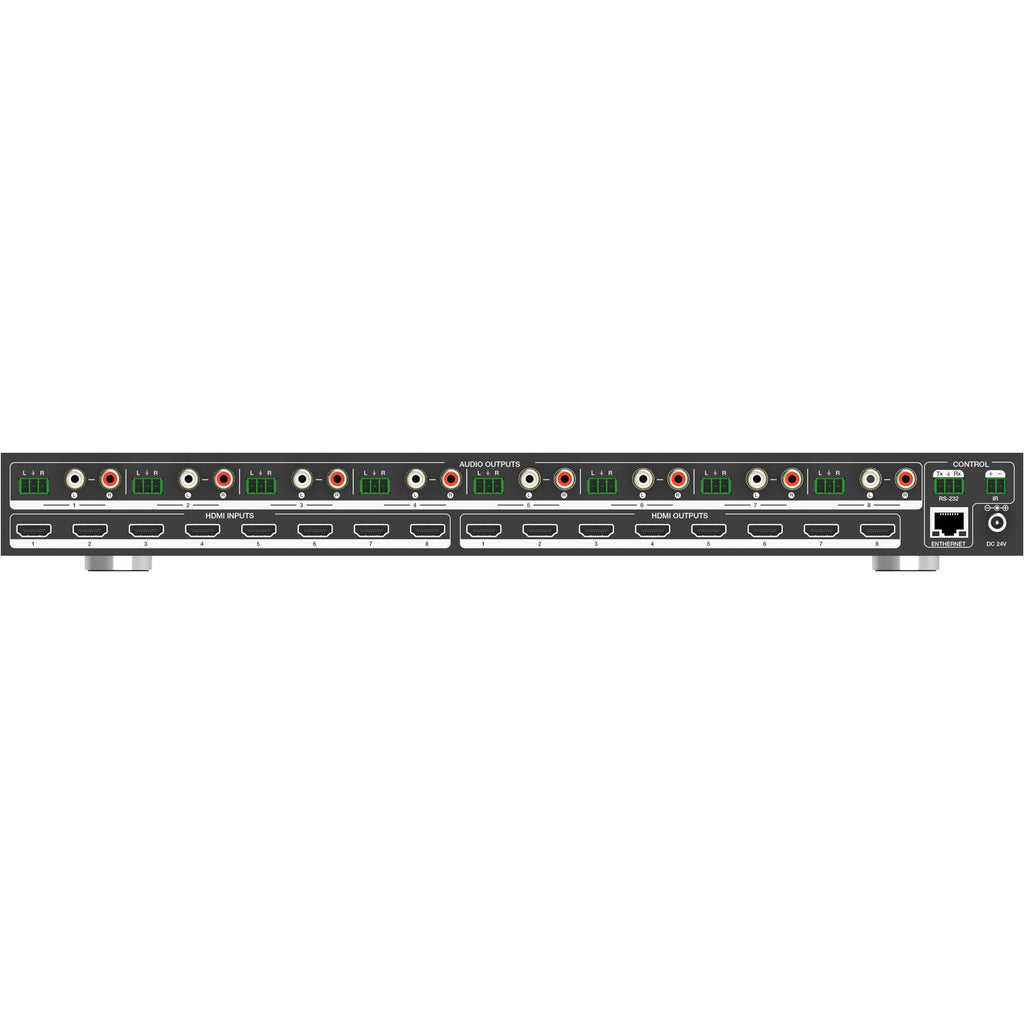

The 8x8 UHD 4K60 HDR HDMI Matrix Switcher from A-Neuvideo supports up to UHD 4K60 4:4:4 signals with independent downscaling to 1080p available for each output. It has 8 RCA and 8 3-pin block analog audio outputs for de-embedding from the HDMI signals and offers independent audio switching. This switcher can be controlled via the front-panel buttons and OLED display, TCP/IP, the included IR remote control, or RS-232.
UPC: 859777007824
In the Box
- A-Neuvideo 8x8 UHD 4K HDR HDMI Matrix Switcher with Scaler & Audio Extractor
- 9 x 3-Pin Block Connector (Male, 3.81mm)
- 2-Pin Block Connector (Male, 3.81mm)
- IR Remote
- RS-232 Serial Cable (DP9 to 3-Pin Block)
- 2 x Mounting Ear
- 10 x Machine Screw
- Power Adapter (24V, 2.7A)
- AC Power Cord (USA)
- Limited 3-Year Manufacturer Warranty
A-Neuvideo ANI-8-4K60 Specs
Processing
| Switching Type | IR Remote, Pushbutton, Software |
Input
| Video Inputs | 8 x HDMI (HDMI 2.0b) |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV, YCC) UHD 4K at 50/60 fps DCI 2K at 30/50/60 fps 1080p at 60/120 fps |
Output
| Video Outputs | 8 x HDMI (HDMI 2.0b) |
| Output Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV, YCC) UHD 4K at 50/60 fps DCI 2K at 30/50/60 fps 1080p at 60/120 fps |
| Audio Outputs | 8 x 2RCA Analog 8 x Block 3-Pin Analog |
Connectivity
| Other I/O | 1 x RJ45 LAN 1 x Block 3-Pin RS-232 1 x Block 2-Pin IR |
| HDCP Support | , Version 2.2 |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| DTS Compatibility | DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
Hardware
| Wi-Fi | None |
| Bluetooth | None |
Power
| Power I/O | 1 x Barrel (24 VDC at 2.7 A) Input |
| Power Consumption | 100 to 240 VAC (40 W) |
Environmental
| Operating Temperature | 22 to 77°F / -10 to 45°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% |
General
| Certifications | CE, FCC, UL *as per Manufacturer |
| Rack Form Factor | 1 RU |
| Dimensions | 17.2 x 9.8 x 1.8" / 436 x 250 x 45 mm |
| Weight | 4.37 lb / 1.98 kg |
Packaging Info
| Package Weight | 7.01 lb |
| Box Dimensions (LxWxH) | 20.9 x 14.3 x 3.5" |
