Description
A-Neuvideo ANI-62HDRH Overview

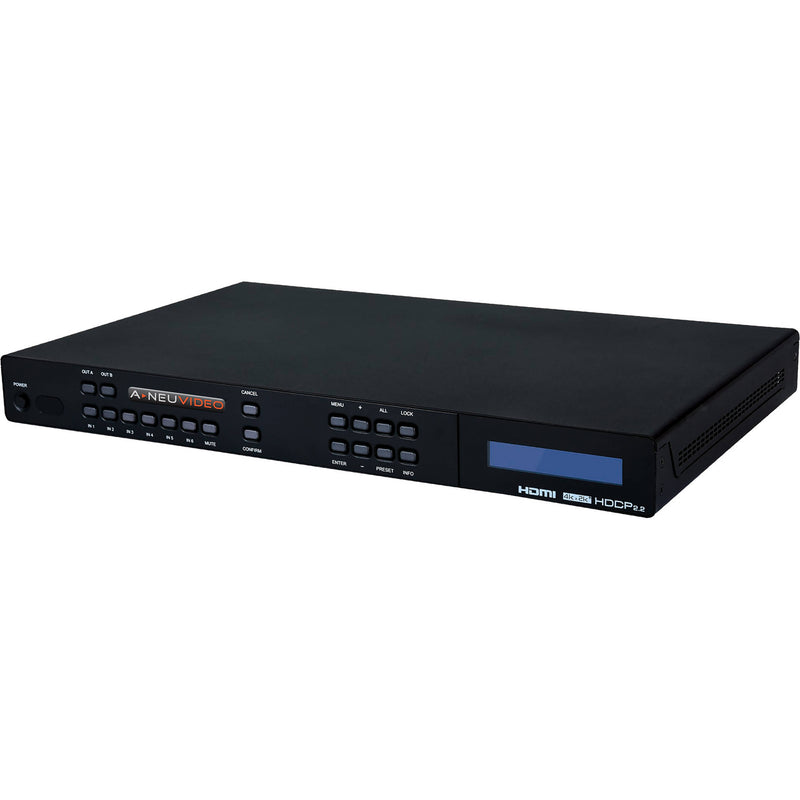

The 6 x 2 HDR 4K HDMI Matrix Switcher from A-Neuvideo is designed to connect up to six 4K UHD HDMI sources to up to two 4K HDMI displays and switch between them as needed. The matrix supports 4K @ 60 Hz video resolutions, 16-bit Deep Color, and HDR and HD audio inputs. The EDID manager allows you to select one of the six pre-existing EDIDs or select an EDID copied from a connected device. Each HDMI output source has the possibility of extracting audio and converting it to optical digital audio (LPCM 2.0 and Bitstream settings). The front panel features accessible RS-232, Telnet, WebGUI and IR remote control options, and an LCD screen for displaying data.
Supports 4K UHD video and LPCM 7.1, HD/Bitstream audio
Six HDMI inputs and two HDMI outputs
HDCP 1.x and 2.2 compliant
Supports 16-bit deep color
Display any of the six HD sources on up to two HDTV displays simultaneously
Optical audio extraction paired with each HDMI output (LPCM 2.0 and Bitstream)

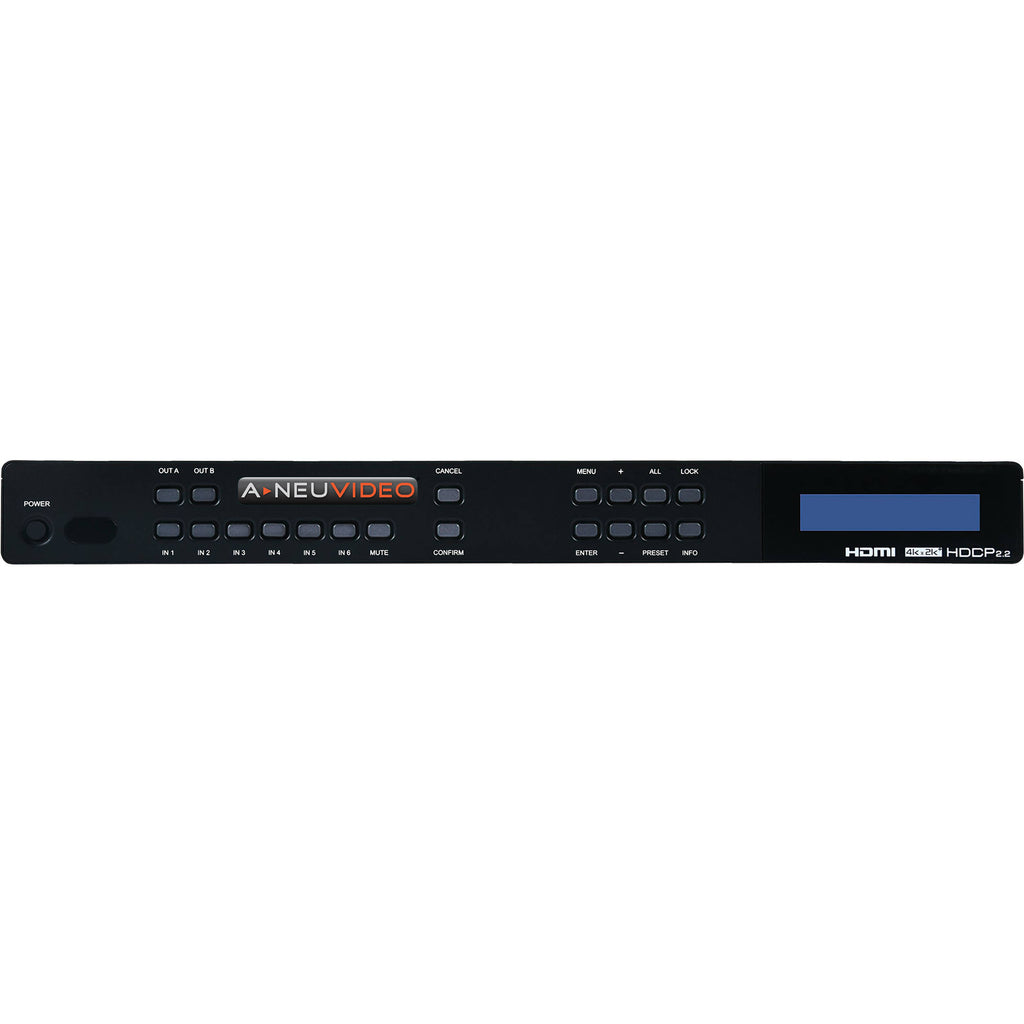

Front-panel LCD, WebGUI, Telnet, RS-232, and IR Remote
UPC: 859777007299
In the Box
- A-Neuvideo 6 x 2 HDR 4K HDMI Matrix Switcher
- Remote Control
- IR Extender Cable
- 5 VDC / 3 A Power Adapter
- 2 x Rackmount Ears
- Limited 3-Year Warranty
A-Neuvideo ANI-62HDRH Specs
| Chassis Material | Metal |
| Silkscreen Color | Black |
| Bandwidth | HDMI: 600 MHz, 18 Gb/s |
| Input Ports | 6 x HDMI |

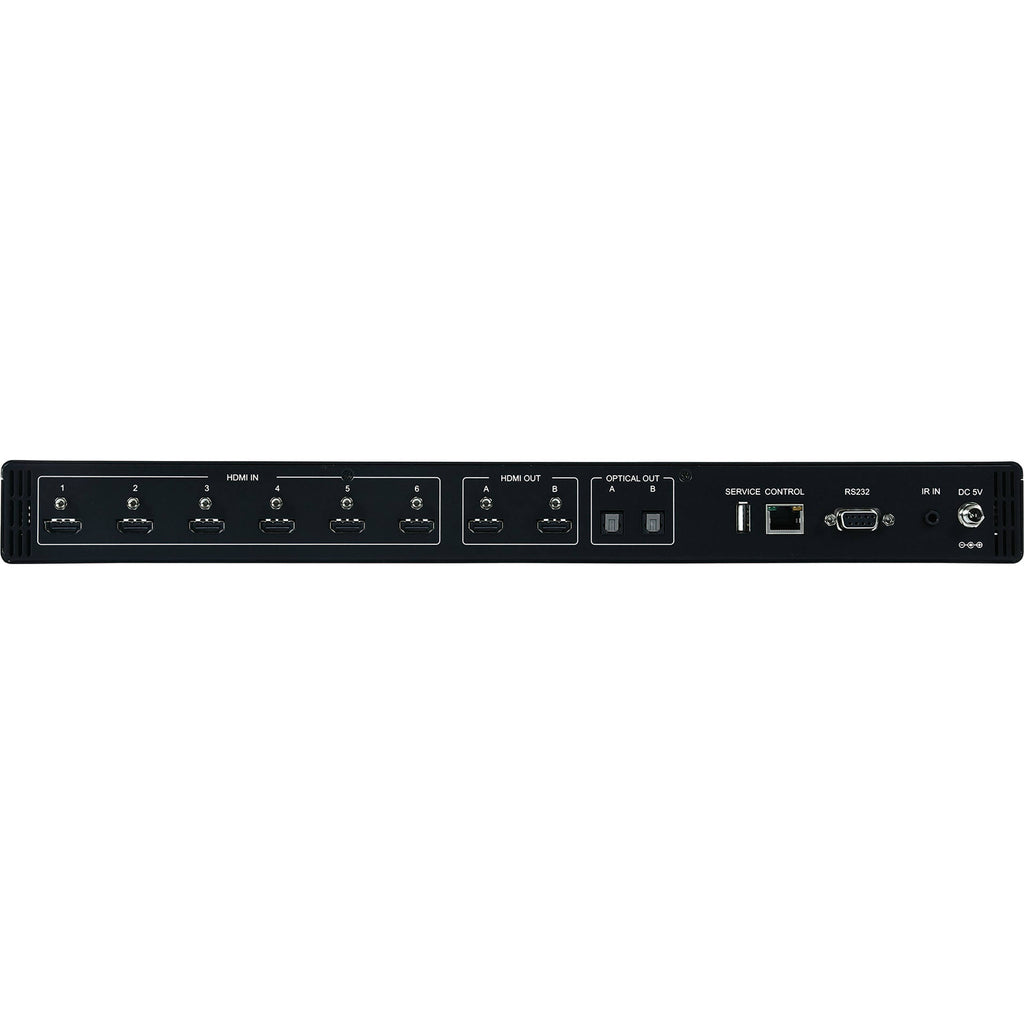

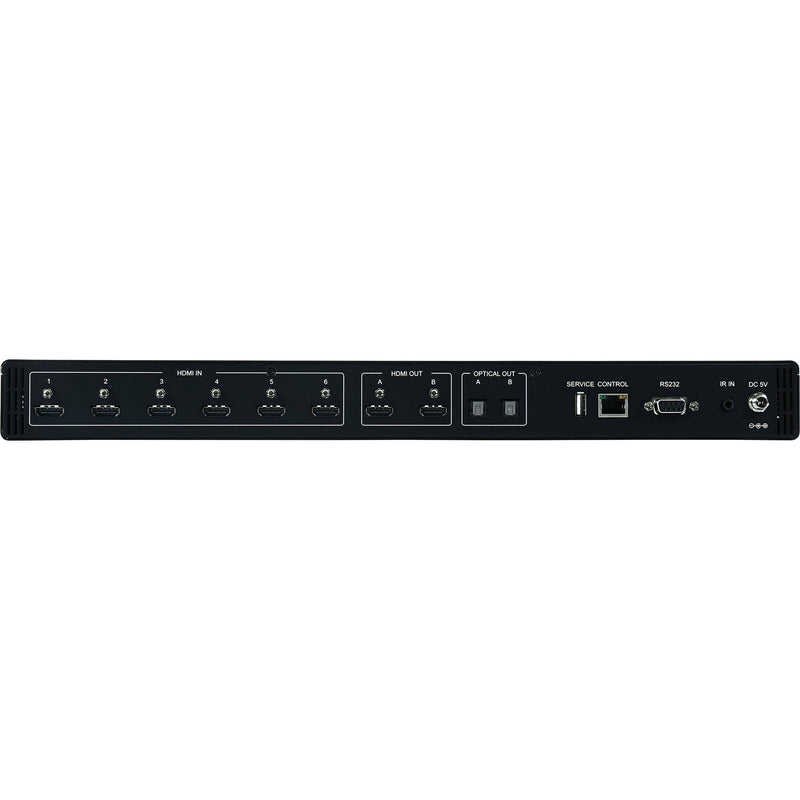

| Output Ports | 2 x HDMI 2 x TOSLINK, S/PDIF Audio |
| Control Interfaces | 1 x 9-Pin Sub-D, RS-232 1 x RJ-45, IP Control 1 x 3.5 mm Phone Jack, IR Extender 1 x DC Barrel, Power |
| Supported Resolutions | 480i @ 60 Hz to 4K @ 60 Hz (4:4:4, 8-Bit) VGA @ 60 Hz to WUXGA @ 60 Hz (RB) |
| Cable Length | HDMI: Up to 32' / 10 m: 1080p @ 60 Hz (12-Bit) Up to 16' / 5 m: 4K @ 60 Hz (4:4:4, 8-Bit) |
| IR Frequency | 30 to 50 kHz |
| Baud Rate | 115200 bps |
| HDCP Compliance | 1.4, 2.2 |
| ESD Protection | Human Body Model: ±12 kV (Air Discharge) ±8 kV (Contact Discharge) |
| Certifications | US/EU Standards, CE, FCC, and UL Certified |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Relative Humidity | 20 to 90%, Non-Condensing |
| Power Supply | 5 VDC, 3 A |
| Power Consumption | 12.65 W |
| Dimensions | 17.2 x 1.7 x 10.6" /43.8 x 4.4 x 26.8 cm |
| Weight | 6.3 lb / 2.84 kg |
Packaging Info
| Package Weight | 9.705 lb |
| Box Dimensions (LxWxH) | 23.5 x 14.9 x 7.4" |
