Description

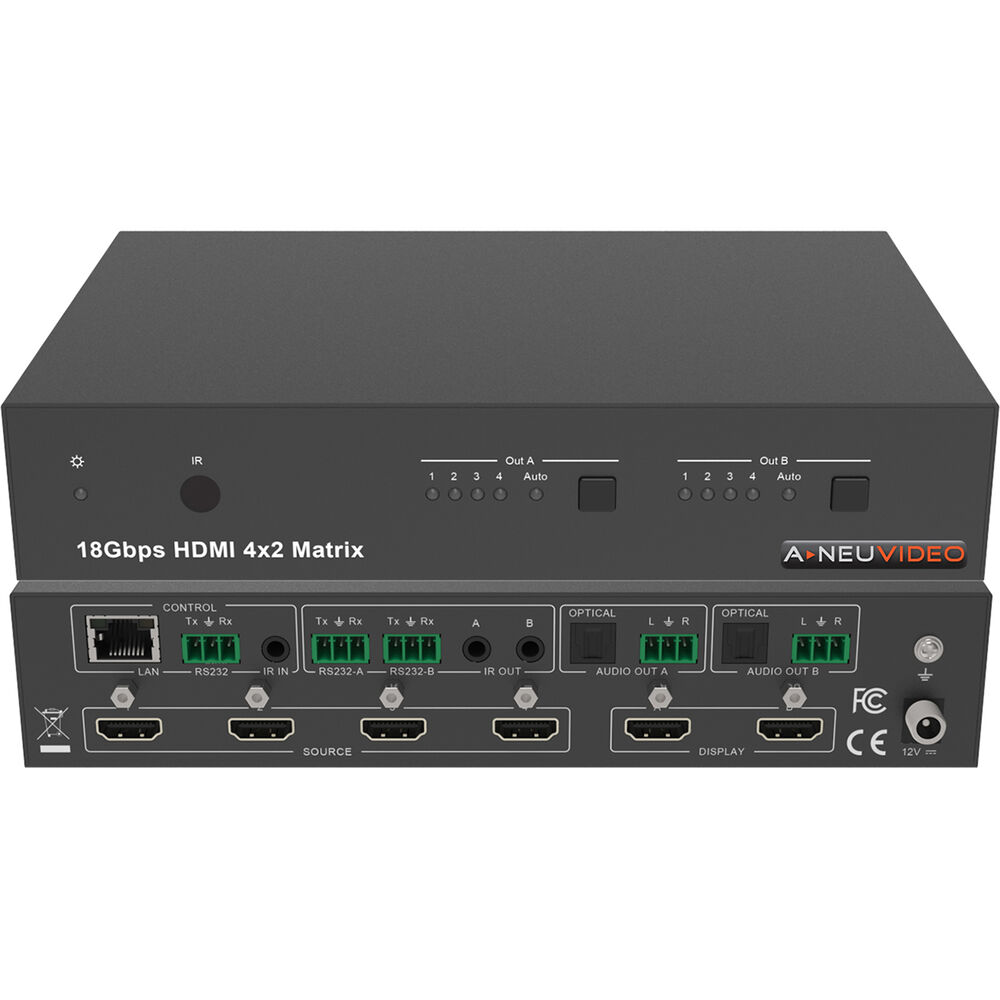

A-Neuvideo 42HDFIX Overview
The 4x2 HDMI 2.0 18 Gb/s Matrix Switcher with Scaler, SPDIF, Analog & Web-GUI from A-Neuvideo is an HDBaseT-compatible video switcher that supports up to 4K60 4:4:4 18 Gb/s video via HDMI. It features four HDMI inputs and two scaling HDMI outputs, which can be individually scaled for 1080p or HDBaseT.
Two sets of de-embedded audio are available via analog left and right outputs and optical TOSLINK. The switcher is controllable from its front panel, RS-232, IR, or LAN with a built-in GUI.
Key Features
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Four 18 Gb/s HDMI 2.0 video inputs supporting up to 4K60 4:4:4 resolution
- Two 18 Gb/s HDMI 2.0 video outputs supporting up to 4K60 4:4:4 resolution
- Both outputs can be individually scaled for 1080p or HDBaseT mode
- Automatic RS-232, CEC, and IR control of the display device power state
- Two sets of de-embedded audio with analog and TOSLINK outputs, for both outputs
- ARC decoding to the TOSLINK audio outputs only
- Test Pattern mode for testing output signal integrity to the display
- Built-in Web GUI for LAN control
- Four methods of control: front-panel, RS-232, IR, and LAN
UPC: 859777007800
In the Box
- A-Neuvideo 4x2 HDMI 2.0 18 Gb/s Matrix Switcher with Scaler, SPDIF, Analog & Web-GUI
- 12 VDC, 1A Locking Power Adapter
- IR Remote
- 2 x Mounting Ear
- IR Blaster Clables (4.9')
- 20-60 kHz IR Receiver Cable (4.9')
- 5 x 3-Pin Phoenix Connector
- Limited 3-Year Manufacturer Warranty
A-Neuvideo 42HDFIX Specs
Processing
| Switching Type | IR Remote, Pushbutton, Software |
| Processing Resolution | UHD 4K at 50/60 |
| Color Processing | 4:4:4 |
Input
| Video Inputs | 4 x HDMI (HDMI 2.0) Female |
| Input Video Format | HDMI (4:4:4/4:2:0) UHD 4K 30/50/60 fps 1080p 1080i 720p 480p 480i / 525 lines WUXGA (1920 x 1200) |
| Embedded Audio Input | HDMI |
Output
| Video Outputs | 2 x HDMI (HDMI 2.0) Female |
| Output Video Format | HDMI (4:4:4/4:2:0) UHD 4K 30/50/60 fps 1080p 1080i 720p 480p 480i / 525 lines WUXGA (1920 x 1200) |
| Audio Outputs | 2 x Block 3-Pin Stereo Analog 2 x TOSLINK S/PDIF |
| Output Audio Format | S/PDIF |
| Embedded Audio Output | HDMI |
Connectivity

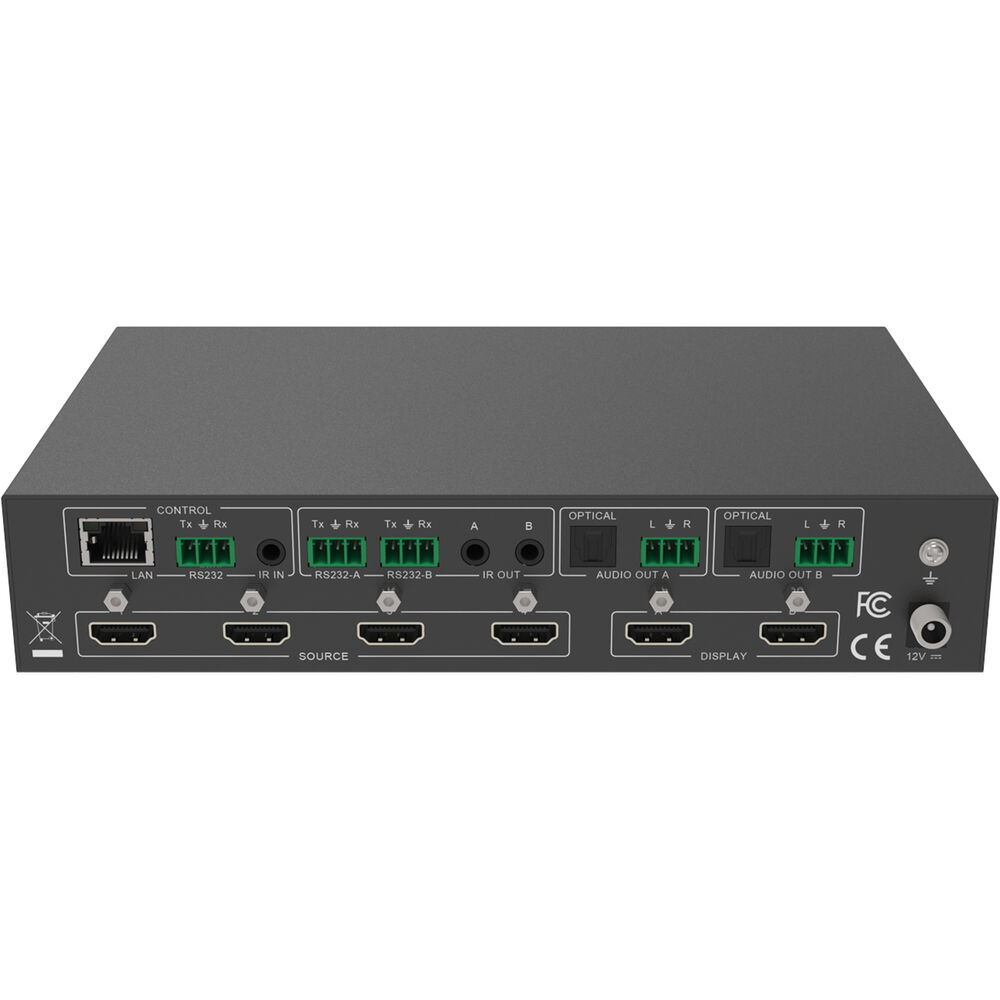

| Other I/O | 2 x Block 3-Pin RS-232 1 x RJ45 Control 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output |
| HDCP Support | Version 2.2 |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| DTS Compatibility | DTS, DTS-HD High Resolution, DTS-HD Master Audio |
| Dolby Compatibility | Dolby Digital, Dolby Digital Plus |
Hardware
| Wi-Fi | Yes |
| Bluetooth | Yes |
Power
| Power I/O | 1 x Barrel (12 VDC at 1 A) Input |
| Power Consumption | 4.3 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% (Non-Condensing) |
General
| Dimensions | 8.6 x 5.5 x 1.7" / 21.8 x 14 x 4.3 cm |
| Weight | 2.3 lb / 1 kg |
Packaging Info
| Package Weight | 3.625 lb |
| Box Dimensions (LxWxH) | 12.9 x 12.8 x 3.6" |
