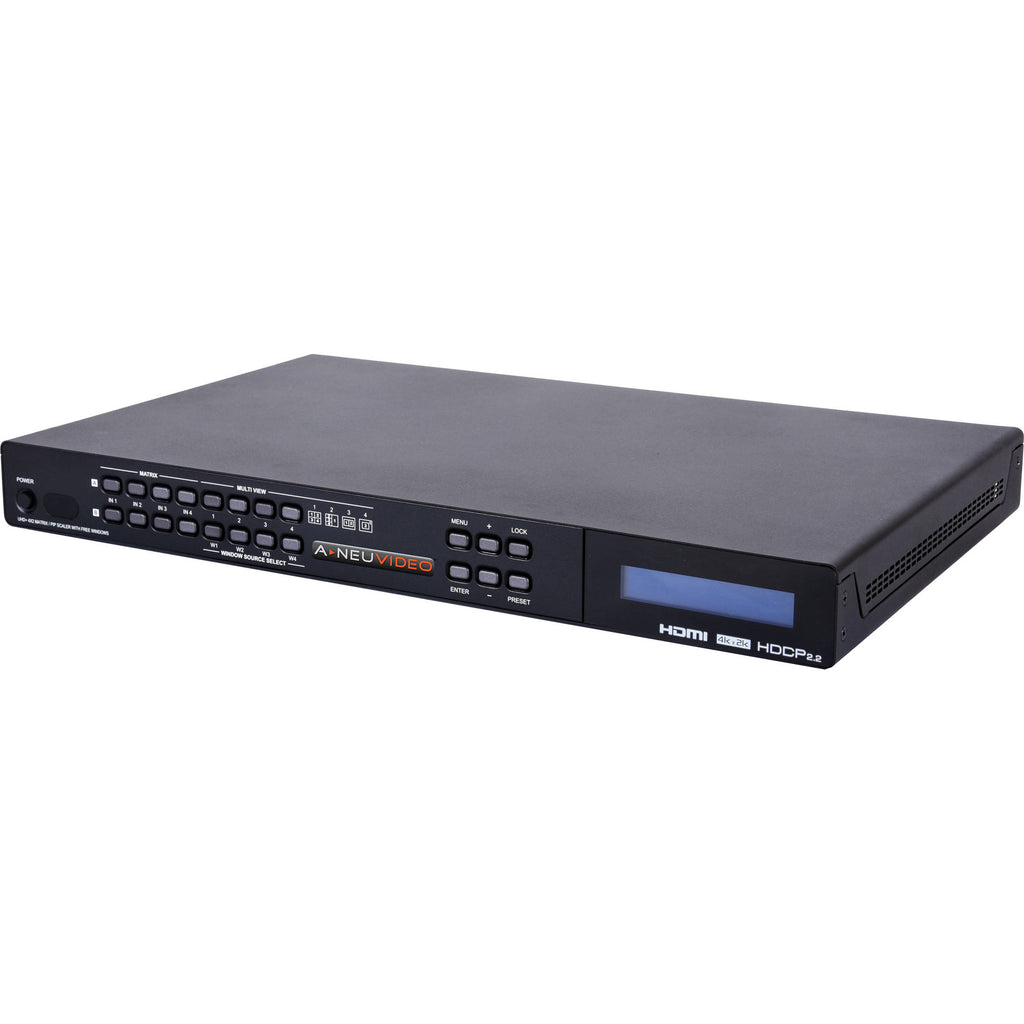

A-Neuvideo 4 x 2 HDMI 4K Multiviewer & Seamless Switcher

Four HDMI Inputs / Two HDMI Outputs

LPCM 2.0/5.1/7.1 Audio Support

PiP, Side by Side, 3+1 & 2 x 2 Quad View

WebGUI Telnet & IR Remote Control

The 4 x 2 HDMI 4K Multiviewer & Seamless Switcher from A-Neuvideo is a HDMI switcher with integrated scaling and multi-window features. The multiviewer supports video resolutions up to 4K @ 60 Hz and audio up to LPCM 7.1 @ 192 kHz. The 4K multiviewer features four HDMI sources, that can be displayed individually in full-screen mode, or on one of the various multi-window modes available. The unit provides PiP, Side by Side, 3+1, and 2 x 2 Quad View features. The multi-window arrangements can be set as a preset. Each input and window can be modified to suit your needs. You can choose the routing, position, and sizing via the front-panel controls, or via the WebGUI, RS-232, Telnet, and IR remote control options. This unit is suitable for displaying and monitoring multiple sources simultaneously in control rooms, conference rooms, and similar venues.

Supports 4K UHD video and LPCM 7.1 audio Four HDMI inputs and two HDMI outputs HDCP 1.x and 2.2 compliant Features source-switching in full screen and multi-window modes Picture-in-Picture, Side by Side, 3+1 Quad View, and 2 x 2 Quad View display options Enables Window Size, Position, and Setting Adjustments in PiP mode (via WebGUI) Allows you to store multi-window arrangements as presets Freely positioned graphic logo upload support UPC: 859777007312

Chassis Material	Aluminum
Silkscreen Color	Black
Bandwidth	HDMI: 600 MHz, 18 Gb/s
Input Ports	4 x HDMI
Output Ports	2 x HDMI 1 x 5-Pin Terminal Block, Balanced Stereo
Control Interfaces	1 x 5-Pin Terminal Block, RS-232 1 x RJ45, IP Control 1 x Port, Service 1 x DC Barrel, Power
Display	Picture-in-Picture Side by Side 3+1 Quad View 2 x 2 Quad View
HDCP Compliance	1.x, 2.2
Certifications	US/EU Standards, CE, FCC and UL Certified
ESD Protection	Human Body Model: ±12 kV (Air Discharge) ±8 kV (Contact Discharge)
Operating Temperature	32 to 104&degF / 0 to 40&degC
Storage Temperature	-4 to 140°F / -20 to 60°C
Relative Humidity	20 to 90%, Non-Condensing
Power Supply	12 VDC, 3A
Power Consumption	27.5 W
Dimensions	17.2 x 1.7 x 10.6" /43.8 x 4.4 x 26.8 cm
Weight	7.5 lb / 3.4 kg

Package Weight	11.31 lb
Box Dimensions (LxWxH)	23.4 x 15 x 7.4"
