| ₹ 51850.0 includes GST and import duties. | |
| B2B customers can avail ₹ 7907.13 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
A-Neuvideo ANI-28UHDDA Overview
The 2 x 8 4K UHD HDMI Splitter/Scaler from A-Neuvideo is a switching splitter designed to provide HDR, HDR10, Dolby Vision, and other HDMI 2.0 audio and video support applications. The unit features a Group Mode, which enables it to function as two independent 1 x 4 splitters. The splitter features 4K UHD HDMI video sources, of up to 4K @ 60 Hz (4:4:4, 8-bit), and can operate with 10-bit or 12-bit HDR sources. LPCM 7.1, Bitstream, and HD Bitstream audio pass-through is available with up to 192 kHz of audio sampling rates.

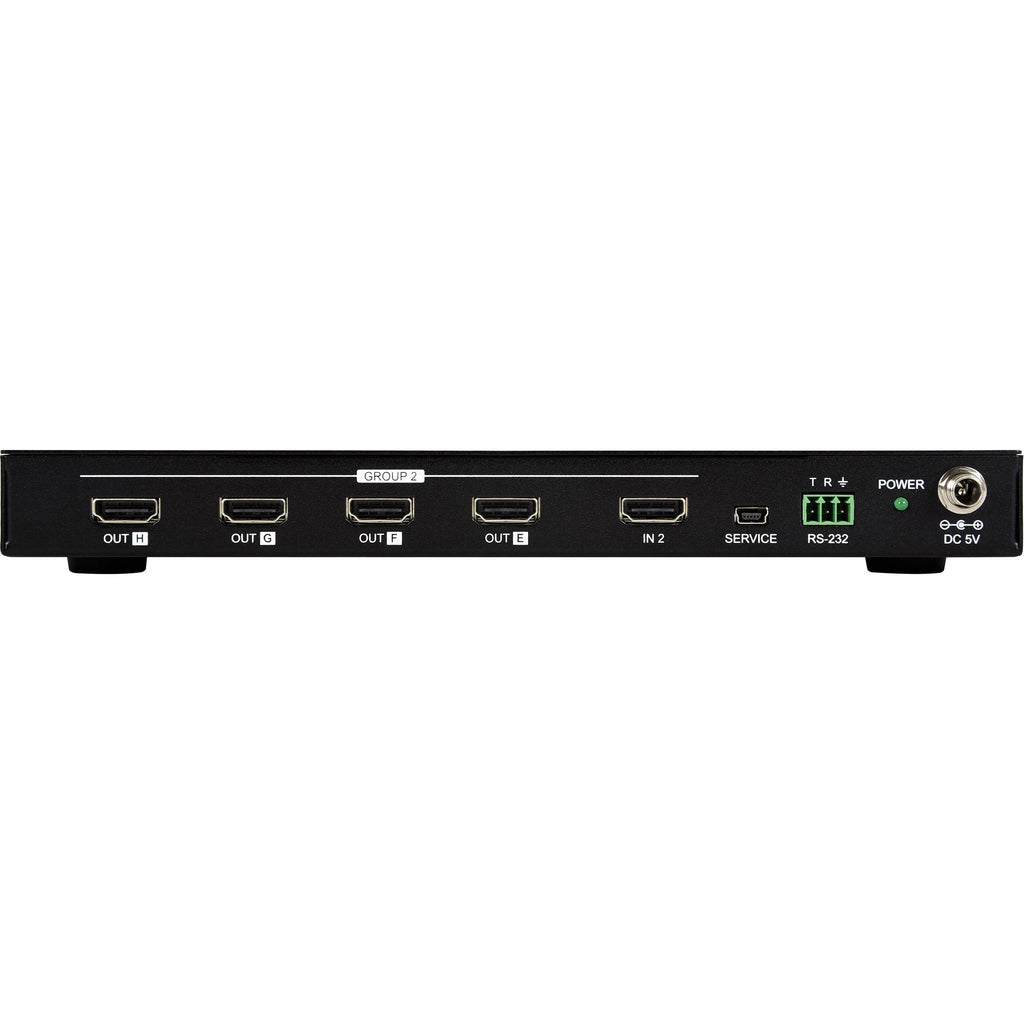

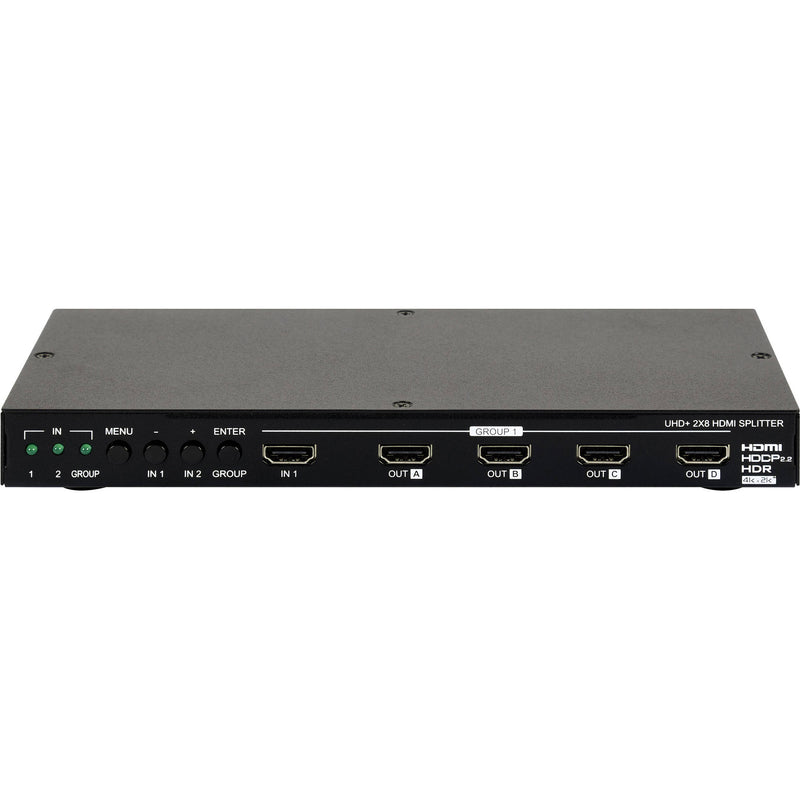

Each output features an independent HDCP management engine and can be configured to a range of 4K to 1080p. When several different displays are connected, you can apply the color space conversion (4:4:4 to 4:2:0). The CEC Active Source command allows you to reset the input selection on CEC-compatible displays connected to the unit. The unit features front-panel OSD and RS-232 controls, one HDMI input, and four HDMI outputs. The back panel features four HDMI outputs, one HDMI input, a USB input, an RS-232 connector, and a 5 VDC power input.
In the Box
- A-Neuvideo 2 x 8 4K UHD HDMI Splitter/Scaler
- 5 VDC, 3A Power Adapter
- 3-Pin Terminal Block to 9-Pin Sub-D RS-232 Cable
- Limited 3-Year Warranty
A-Neuvideo ANI-28UHDDA Specs
| Construction Material | Metal chassis |
| Silkscreen Color | Black |
| Bandwidth | HDMI: 600 MHz, 18 Gb/s |
| Input Connectors | 2 x HDMI |
| Output Connectors | 8 x HDMI |
| Control Interfaces | 1 x 3-Pin Terminal Block, RS-232 1 x USB Mini B, Service 1 x DC Barrel, 5 V Power Input |
| Cable Distance | HDMI: 4K @ 60 Hz, Up to 16' / 5 m (YUV 4:4:4, 8-Bit) 1080p @ 60 Hz, Up to 32' / 10 m (12-Bit) 1080p @ 60 Hz, Up to 49' / 15 m (8-Bit) CAT: 985' / 300 m |
| ESD Protection | ±8 kV (Air-Gap Discharge) ±6 kV (Contact Discharge) |
| Power Supply | 5 VDC, 3 A / 12 VDC, 1.24 A |
| Power Consumption | 9.57 W |
| Certifications | US/EU Standards, CE, FCC, UL |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Relative Humidity | 20 to 90% RH, Non-Condensing |
| Dimensions | 9.4 x 1 x 4" /24 x 2.4 x 10.3 cm |
| Weight | 1.4 lb / 616 g |
| Package Weight | 2.655 lb |
| Box Dimensions (LxWxH) | 11.3 x 7.3 x 2.9" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 50813.0 |
| 3-5 | ₹ 50294.5 |
| 5-10 | ₹ 49257.5 |
| 10+ | ₹ 48220.5 |
Bulk discount will be automatically applied during checkout based on quantity.
