Description

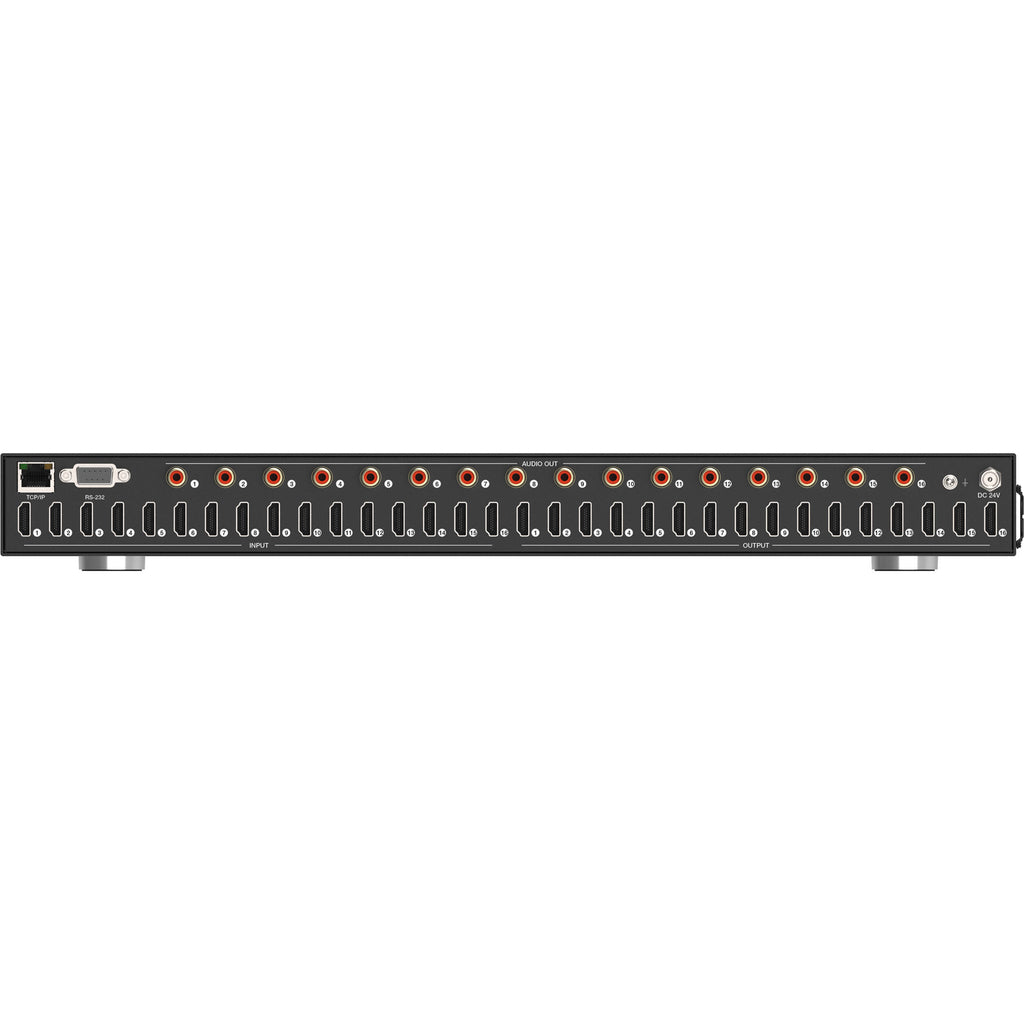

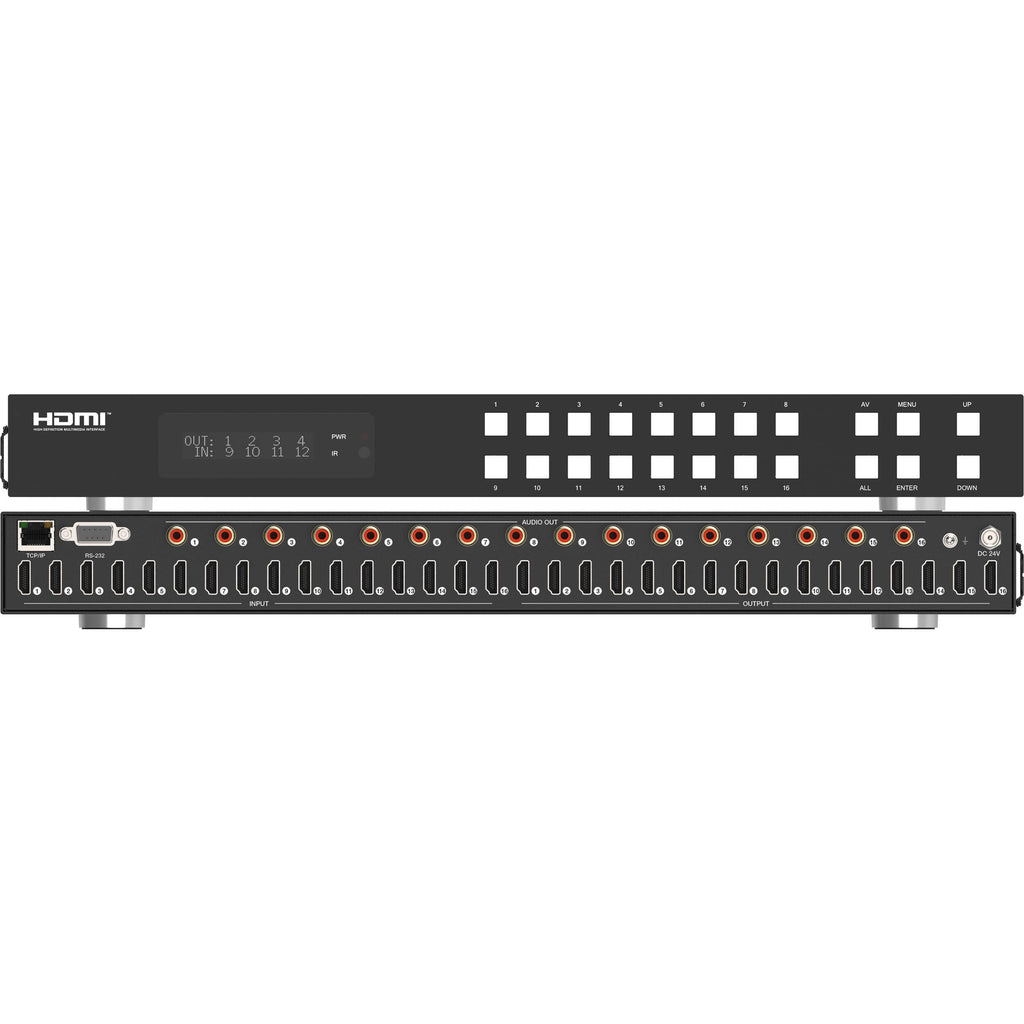

A-Neuvideo 16-4K60-S Overview
The 16x16 UHD 4K60 HDR HDMI Matrix Switcher from A-Neuvideo supports up to 4K60 4:4:4 signals with independent downscaling to 1080p on each output. It has 16 RCA coax audio outputs for de-embedding from the HDMI signals, and it supports Audio Return Channel (ARC). With ARC enabled on HDMI output, the audio from your HDMI displays will be extracted to the RCA outputs. The switcher can be controlled via the front panel buttons and OLED display, the included IR remote control, RS-232 (D-Sub), LAN (RJ45), and/or a Web GUI.
Key Features
Up to UHD 4K60 (YUV 4:4:4) on all HDMI ports
Downscaling to 1080p per output
HDR, HDR10, HDR10+, Dolby Vision, and HLG supported
Audio de-embedding via 16 RCA coax outputs (LPCM 2.0, Dolby Digital/Plus, and DTS 5.1)
Up to 7.1-channel HDMI audio pass-through (LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, and DTS:X)
18 Gb/s video bandwidth
DVI 1.0 compliant
1 RU rackmount size
Front panel OLED display
HDMI input/output cable lengths: 16' (4K60), 32' (4K30), and 50' (1080p60)
UPC: 859777007640
In the Box
- A-Neuvideo 16x16 UHD 4K60 HDR HDMI Matrix Switcher with Down Scaler & S/PDIF Audio Extractor
- 24V/3.75A Power Adapter
- IR Remote
- RS-232 Serial Cable (4.9')
- 2 x Mounting Ear
- Limited 3-Year Warranty
A-Neuvideo 16-4K60-S Specs
Input
| Video Input Connectors | 16 x HDMI (HDMI 2.0b) |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV, YCC) UHD 4K: 60 fps |
Output
| Video Output Connectors | 16 x HDMI (HDMI 2.0b) |
| Output Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV, YCC) UHD 4K: 60 fps |
| Audio Output Connectors | 16 x RCA |
Connectivity
| Other I/O | 1 x RJ45 1 x DE-9/DB-9 RS-232 |
| HDCP Support | Version 2.2 |
| HDR Compatibility | HDR10, HDR10+, Dolby Vision, Hybrid Log Gamma |
| DTS Compatibility | DTS-HD Master Audio, DTS:X |
| Dolby Compatibility | Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD |
Power
| Power Connector | 1 x Barrel (24 VDC at 3.7 A) Input |
| Power Consumption | 100 to 240 VAC (76.8 W) |
Environmental
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 90% |
General
| Rack Form Factor | 1 RU |
| Weight | 6.8 lb / 3.1 kg |
Packaging Info
| Package Weight | 12.215 lb |
| Box Dimensions (LxWxH) | 21.3 x 16 x 5" |
