- Maximum Rating: 15A / 120V / 60 Hz
- 20 x NEMA 5-15R Outlets (15A / 125V)
- 1 x NEMA 5-15P Plug
- 10 Front Outlets & 10 Rear Outlets
- Fixed Mounting Flanges
- 1 RU / 19" Form Factor
- All-Steel Housing
- Outlets Spaced 1.25" (Center-to-Center)
- Built-In 15' Power Cord
- Built-In 15A Circuit Breaker
The 20-Outlet / 19" Wide Rackmount Power Strip from A-Neutronics is well-suited for distributing alternate waveform UPS or generator power in 1 RU / 19" rack enclosures, network closets, and more. It provides a maximum rating of 15A, 125V, and 60 Hz, and is equipped with 20 total NEMA 5-15R outlets (15A / 125V), with 10 front-mounted outlets and 10 rear-mounted ones. It connects to a wall outlet using an integrated 15' power cord with a NEMA 5-15P plug (15A / 125V). Built using an all-steel housing and fixed mounting flanges to help make installations more user-friendly, this unit also features an integrated 15A circuit breaker, unfiltered electrical pass-through, and a lit switch with a latching safety cover that helps prevent the unit from being accidentally turned off. Protection is provided by a limited lifetime warranty.
In the Box
A-Neutronics 20-Outlet / 19" Wide Rackmount Power Strip
Limited Lifetime Warranty | Overall Length | 19.0" / 48.3 cm |
| Maximum Rating | 60 Hz, 15 A, 120 V |
| Number of Receptacles | 20 (10 front, 10 rear) |
| Type of Receptacle | NEMA 5-15R (15 A, 125 V) |

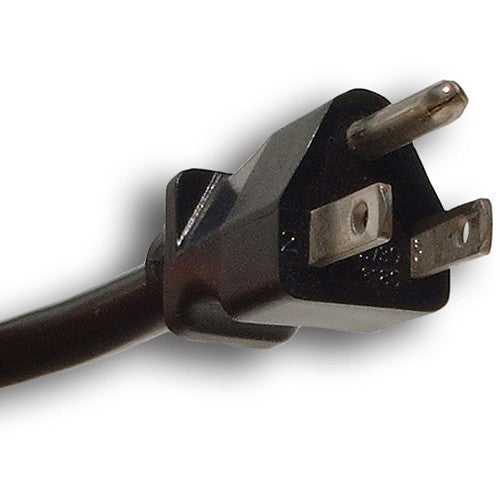

| Type of Plug | NEMA 5-15P (15 A, 125 V) |
| Circuit Breaker | 15 A |
| Mounting Type | Flange, removable (rackmount screws not provided) |

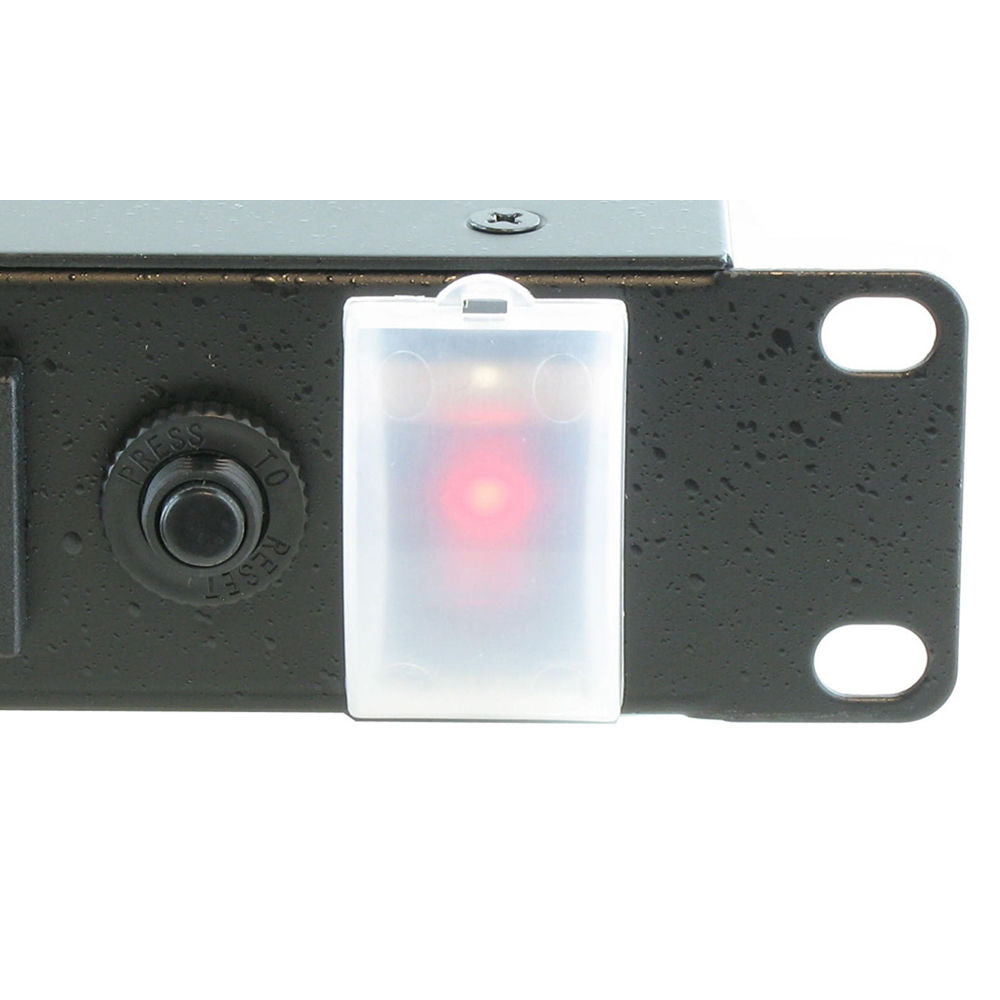

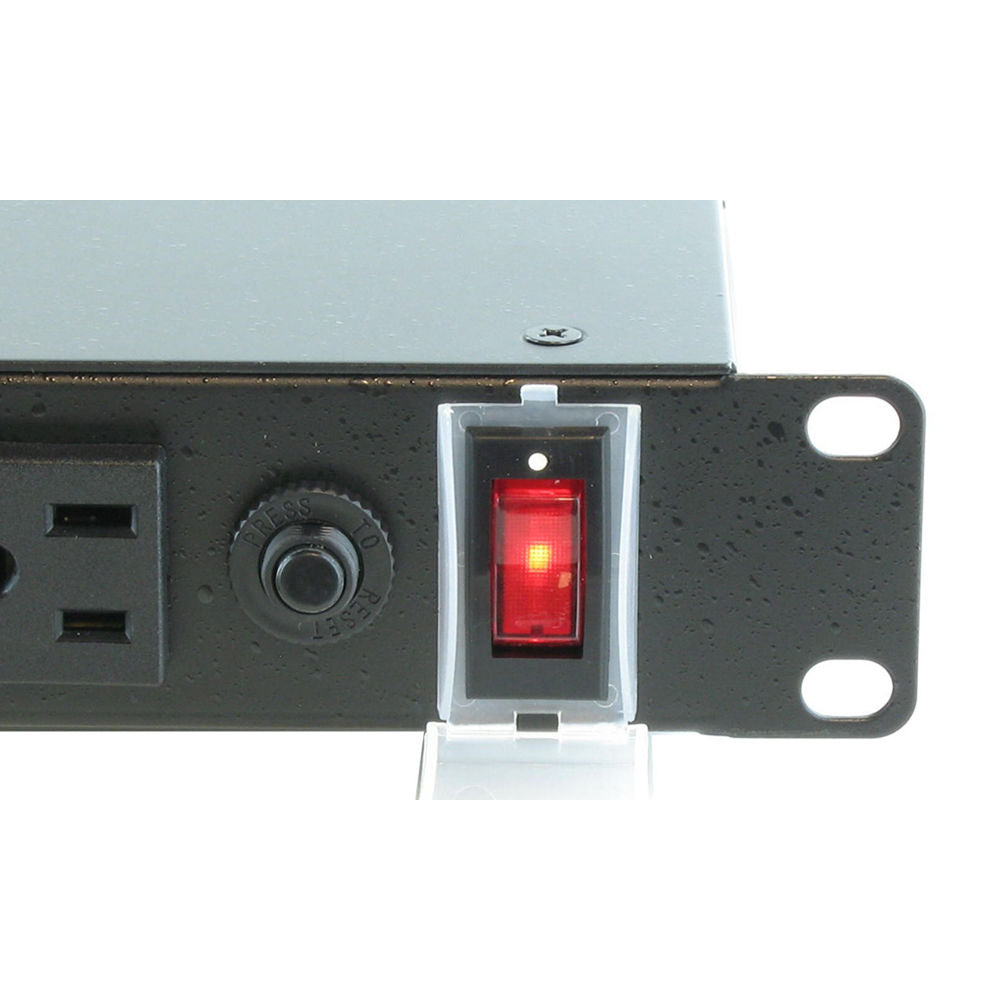

| Switch | Lit with locking cover |
| Approvals | UL Approved |
| Housing | Steel |
| Cord Type | 14/3 SJT |
| Cord Length | 15' / 4.6 m |
| Color of Cord | Black |
| Cord Location | Exits the rear of the housing |
| Unit Color | Black |
| Dimensions | 17.25 x 4.25 x 1.75" / 43.82 x 10.80 x 4.45 cm |
| Weight | 5.1 lb / 2.3 kg |
| Packaging Info |
| Package Weight | 5.55 lb |
| Box Dimensions (LxWxH) | 20.0 x 9.0 x 2.5" |
