8Sinn 8-SRK Overview

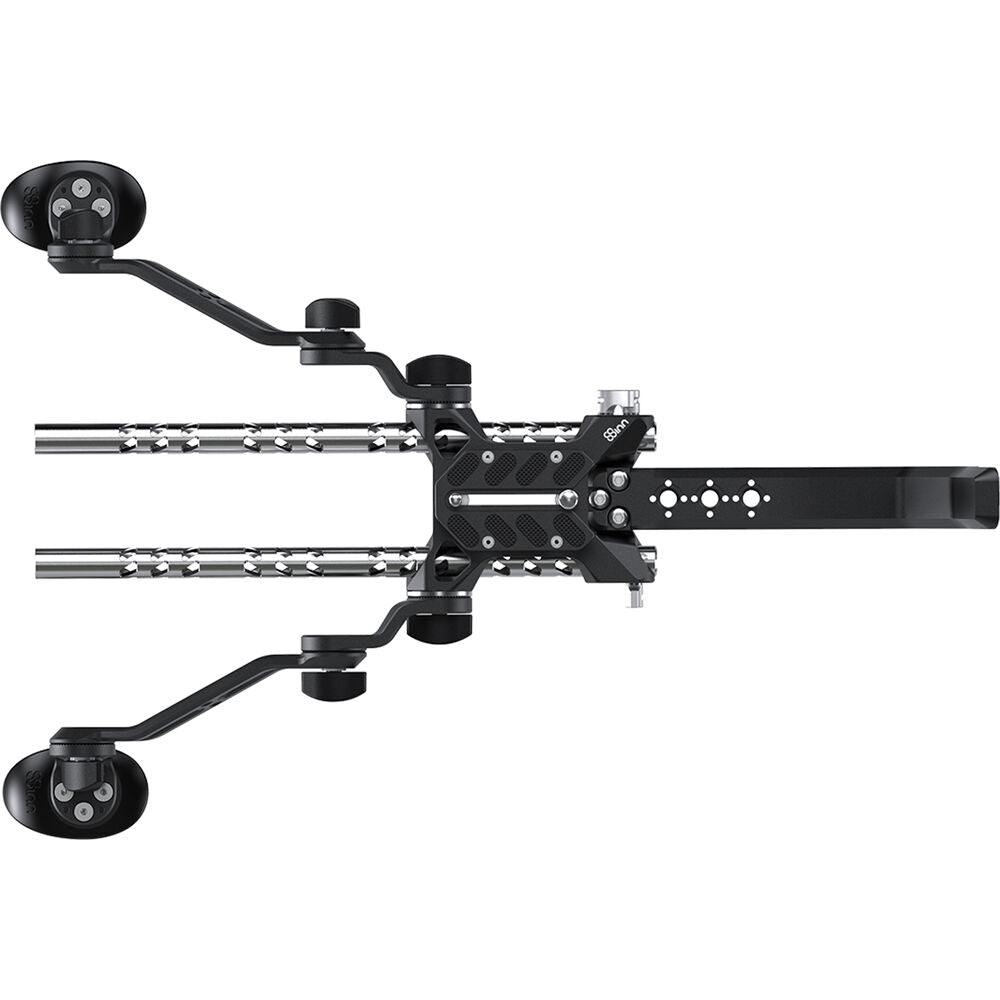

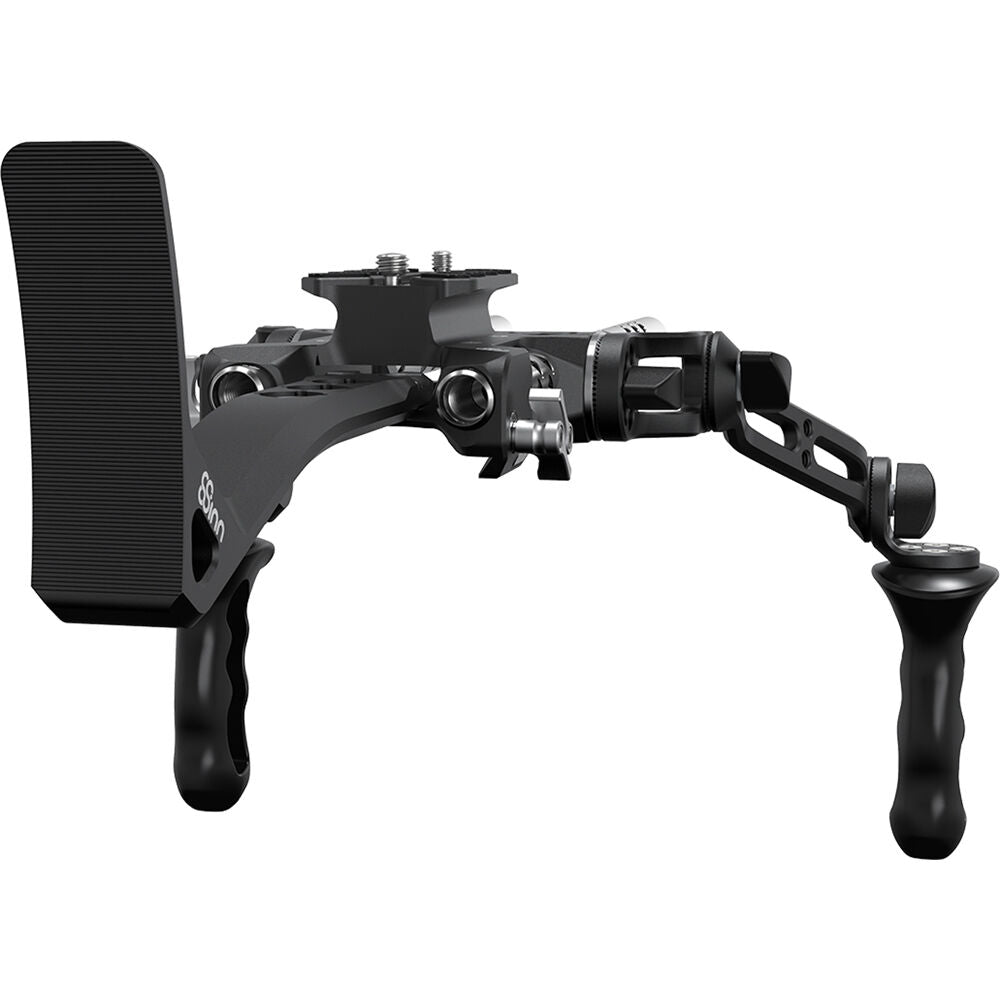

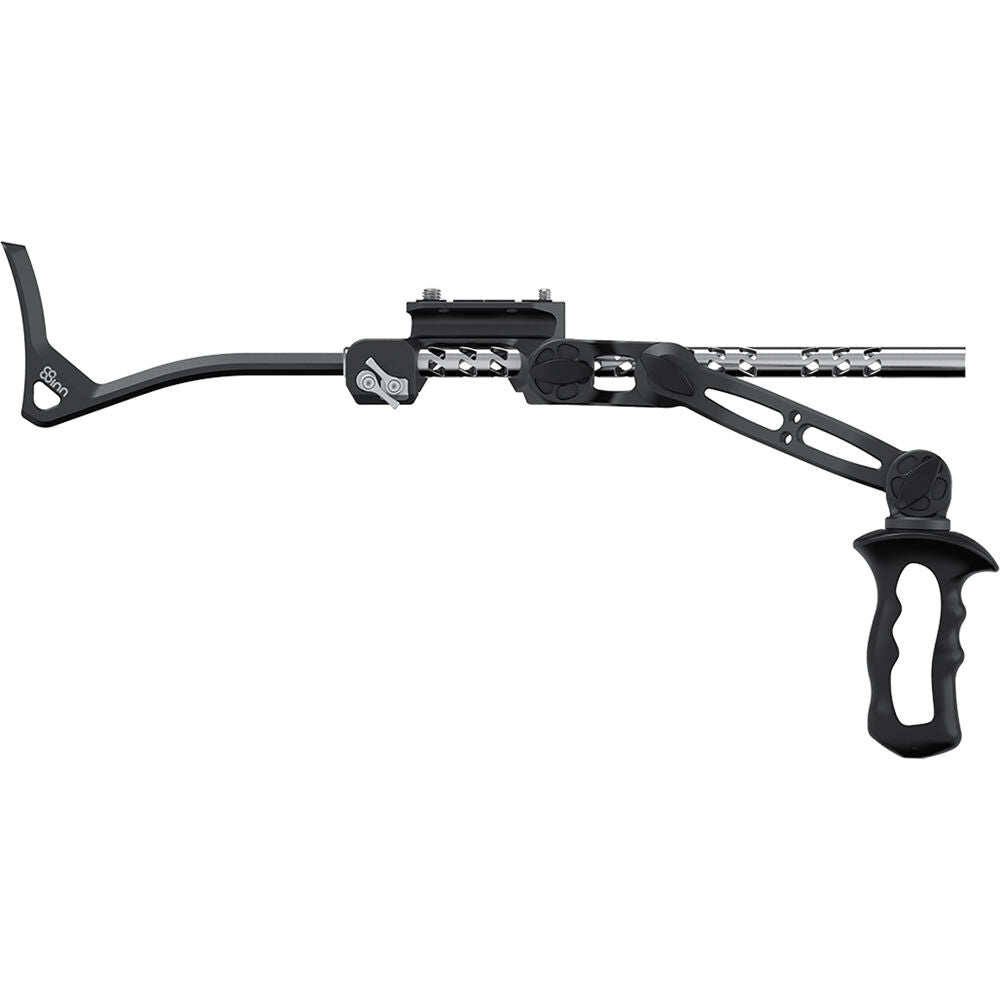

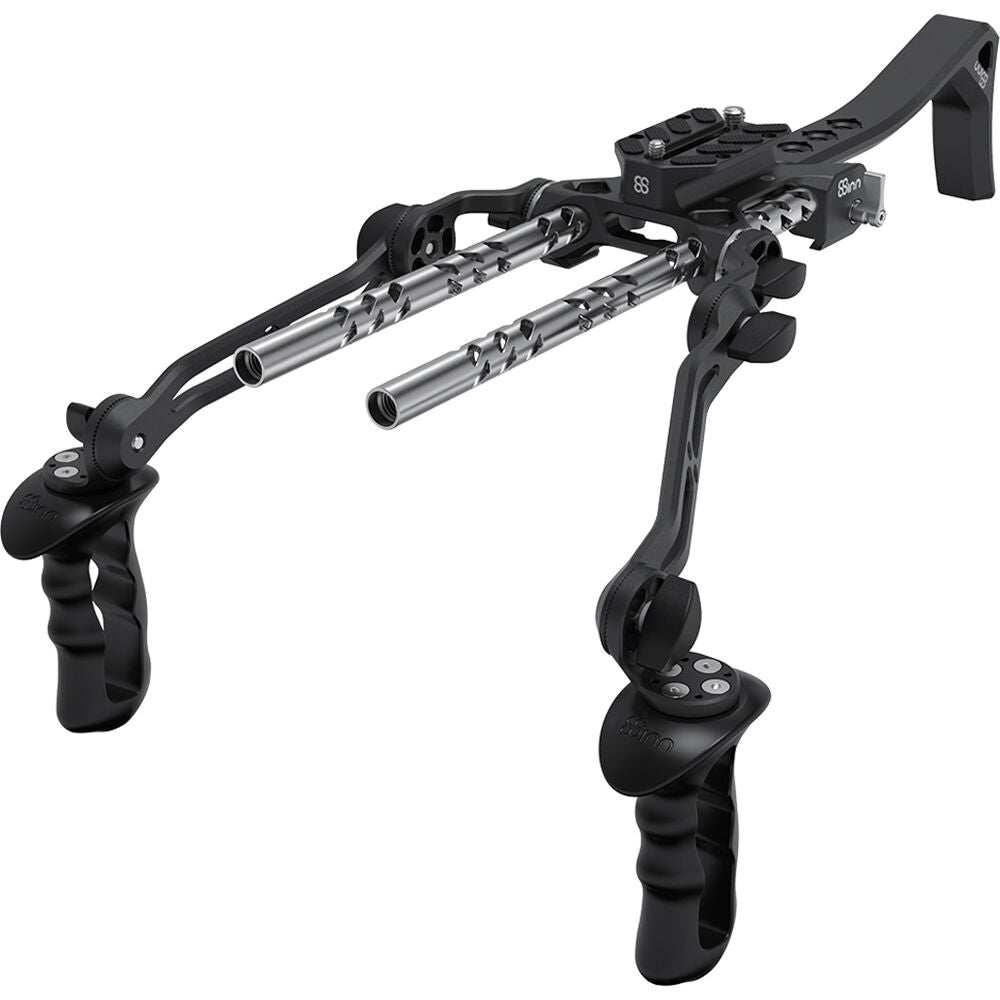

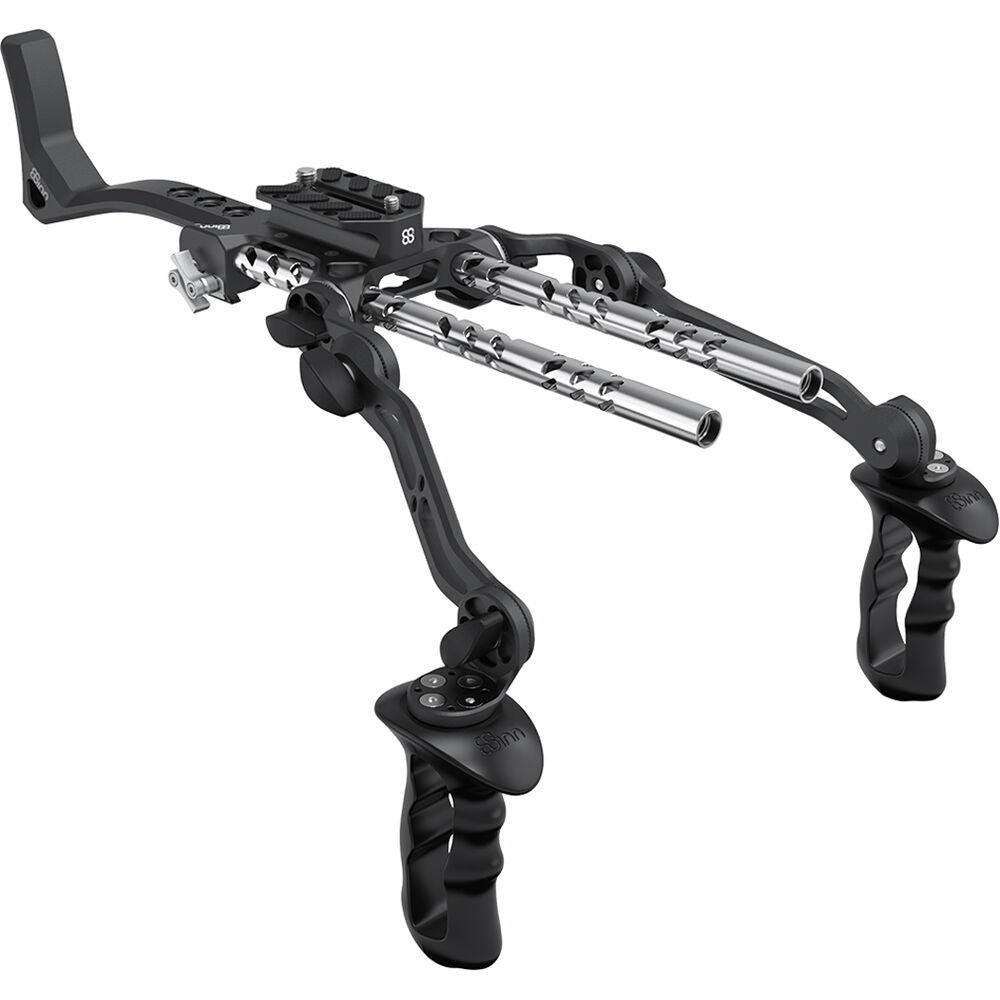

The aluminum Shoulder Rig Kit from 8Sinn consists of a Shoulder Support, a 15mm Baseplate with a Riser Plate 1, and two Shoulder Rig Side Arms with Dual Grips. Use this rig to comfortably balance and support your DSLR, mirrorless, or cine-style camera.
Note:
A set of 15mm rods is not included and must be ordered separately.
8Sinn 15mm Baseplate
The 8Sinn 15mm Baseplate is ARRI dovetail compatible and supports optional camera-specific riser plates from 8Sinn. Available plates include the Riser Plate Basic, which supports the URSA Mini, C100, and Sony FX-9 cameras, and the Riser Plate I, which is for select 8Sinn Z CAM, a7/a7R, and Blackmagic Pocket 4K/6K cages. These optional plates set the supported cameras at the appropriate optical center on the 15mm Baseplate.
The 15mm Baseplate features 15mm LWS rod support via front and rear rod ports and a tightening lever on the left and right sides. The left side has a second lever, and this is for securing the compatible riser plate. The 15mm Baseplate offers two ARRI rosette mounts for attaching optional handgrips, and it also provides a section with multiple 1/4"-20 accessory mounting threads. The baseplate is made with excess weight cut out to provide a minimalist, lightweight design.
Note:
A set of 15mm rods is not included and must be ordered separately.
Features
- Supports optional camera-specific riser plates from 8Sinn
- Compatible with the Riser Plate I and Riser Plate Basic
- ARRI dovetail compatible
- 15mm LWS rod support
- ARRI rosette mounts
- 1/4"-20 accessory mounting threads
8Sinn Riser Plate I
The Riser Plate I from 8Sinn is designed to be used with the 8Sinn 15mm Baseplate and select 8Sinn Z CAM, a7/a7R, and Blackmagic Pocket 4K/6K cages. Please see the compatibility list in the Features section below. The plate sets the cameras of those cages at an 85mm optical center.
The Riser Plate I is made of aluminum and comes with 1/4"-20 and 3/8"-16 screws. Rubber padding provides anti-scratch and anti-twist support for your cage.
Note:
A set of 15mm rods is not included and must be ordered separately.
Compatible Cages
- 8Sinn Cage for Z CAM E2-S6/F6/F8
- 8Sinn Cage for Z CAM E2
- 8Sinn Cage for Sony a7R III and a7 III
- 8Sinn Cage for Sony a7R IV
- 8Sinn Cage for Blackmagic Pocket Cinema Camera 4K/6K
- 8Sinn Half Cage for Blackmagic Pocket Cinema Camera 4K/6K
In the Box
- 8Sinn 15mm Baseplate
- 8Sinn Riser Plate I
- 1/4"-20 Mounting Screw
- 3/8"-16 Mounting Screw
- Limited 1-Year Warranty
- 8Sinn Side Arm with Dual Side Grip for Shoulder Rigs
- 8Sinn Dual Side Grip
- 8Sinn Side Arm for Shoulder Rigs
8Sinn 15mm Baseplate Specs
| Support Type |
Baseplate |
| Grip Type |
None |
Mounting
| Rod Standard |
15 mm LWS / 60 mm Spacing |
| Accessory Mounting |
2 x 1/4"-20 Thread |
| Rod Ports |
4 x 15 mm Rod Port |
| Shoe Mounting |
None |
| Rosettes |
2 x ARRI Rosette w/ M6 Thread |
General
| Construction |
Aluminum |
| Dimensions |
4.72 x 3.19 x 1.26" / 12 x 8.1 x 3.2 cm |
| Weight |
0.47 lb / 212 g |
Packaging Info
| Package Weight |
0.555 lb |
| Box Dimensions (LxWxH) |
7.7 x 4.8 x 1.8" |
8Sinn Riser Plate I Specs
General
| Material |
Aluminum with Rubber Padding |
| Mount Types |
1/4"-20 and 3/8"-16 Screws Included |
| Dimensions |
3 x 1.9 x 0.9" / 7.6 x 4.9 x 2.3 cm |
| Weight |
3.7 oz / 106 g |
Packaging Info
| Package Weight |
0.29 lb |
| Box Dimensions (LxWxH) |
4.2 x 3.6 x 2" |
